Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

107

Operator Interface

Chapter 3

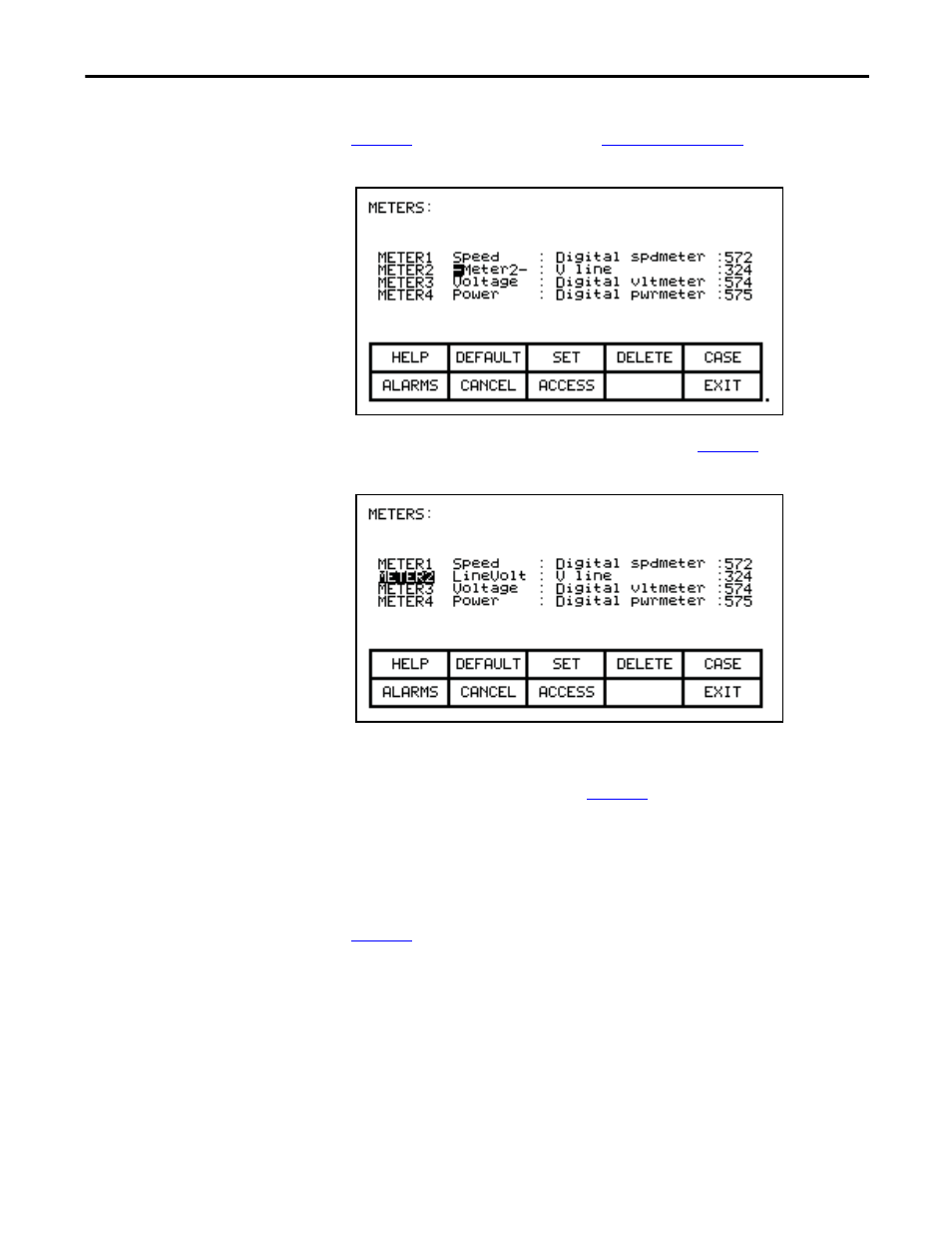

The first character position of the string will be in reverse video as shown in

Figure 88

. Refer to the section entitled

Edit Text on page 114

.

Figure 88 - Edit the Text

When editing is complete, the screen will appear as in

Figure 89

.

Figure 89 - Editing Completed

The operator interface contains a default set of meters. This default set is selected
by pressing the [F2] key any time the 'Meters' screen is displayed. This results in
the default text and tags as shown in

Figure 86

.

The changes made do not take affect until you press [F10] and exit the screen.
Any time prior to this you may cancel all of the changes made after coming to the
screen by pressing the [F7] key.

The result of selecting the V Line tag for meter 2 (in our example) is shown in

Figure 90

after the METERS screen was exited.
