348

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

Chapter 5

Component Definition and Maintenance

Printed Circuit Board
Replacement

The replacement of printed circuit boards should be handled in a careful manner.

There are some basic precautions that should be taken. They include the
following:

Remove all power to the drive.

Do not remove the replacement board from the anti-static bag until
necessary.

Use anti-static wrist strap, grounded in the Low Voltage Control Section.

There are no direct screw/terminal connections on any of the Low Voltage circuit
boards. All wire/terminal connections are made with plugs that plug into the
circuit boards. This means that changing boards only requires the removal of the
plugs, minimizing the chance of mistakes when reconnecting all of the wiring.

IO Connectors on Control Boards

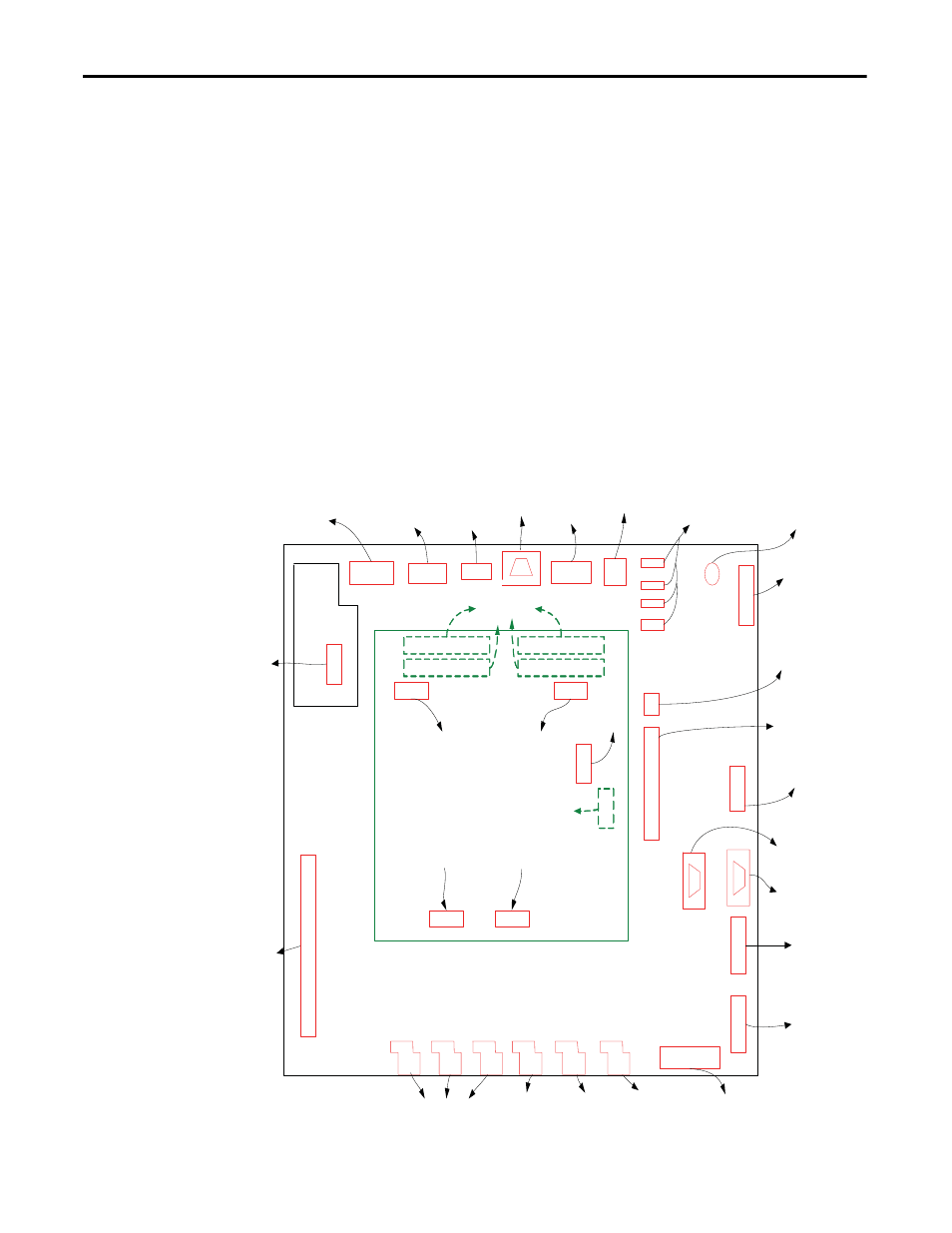

Figure 289 - IO Connectors on Control Boards

J2

J3

J4

J5

J6

J7

J8

LINE CURRENT INPUTS

MOTOR

CURRENT

INPUTS

DCLINK

CURRENT

INPUTS

GROUND FAULT &

CMC NEUTRAL

CURR ENT INPUTS

ISOLATED & NON-ISOLATED

ANALOG INPUTS AND

NON-ISOLATED OUTPUTS

J9

J10

AIR PRESS URE

INPUTS

METER

OUTPUTS &
SPEE D POT

INPUT

J12

J11

COMM S CONNECTIONS

TERMINAL (PA NEL VIEW)

J14

J16

DC POWER SUPP LY

MONITORING

5V1 , 5V2 & DC-BUS+

DPI

INTERFACE

J17

COMMS

CONNECTIONS

DPI/SCANPORT

J15

J13

J21

J20

J19

J18

J22

J23

J25

J26

J27

J28

J1

DC FAIL SIGNAL

MONITORING

XIO-PWR(+24V),+/-15V,+/-24V

+5V DIG, DC POWER SUPP LIES

DC-AB US +56V

OUTPUT MONITORING

(IN UPS OPTION)

CONNECTION

XIO BOARD

CONNECTION

PA RALLEL

DRIVE

UPS FAIL

SIGNAL

MONITORING

LINE VOLTAGE

SY NC. TRANSFER

FEE DBA CK INPUTS

MOTOR &LINE

DCLINK AND

NEUTRAL POINT

VOLTAGE INTPUTS

O O &

AC VOLTAGE

FEE DBA CK INPUTS

ENCODER

INTERFACE

CONTROL I/O

STATUS &
CONTROL

POWER

MONITORING

DPM

J34

J33

J30

J31

DPM-ENCODER

DPM - FAS ULTS &

OTHER I/O

DPM - A/D SUB

SYS TEM

DPM - DAC’S SE RIAL

DATA

COMM S CONNECTIONS

PRINTER OUTPUTS

J24

J32

DPM

POWER SUPP LY

DPM

J4

DOWNLOAD

FIRMWARE

DPM-J11

DPM-J10

DPM-J12

DPM-J13

CONNECT TO OIBB ,

GET GATING SIGNALS

ACB
