104

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

Chapter 3

Operator Interface

Changing Contrast

The contrast controls the horizontal angle to which the display may be viewed.
To change the contrast, press the [F3] key. The current value of the contrast will
be shown in reverse video (

Figure 83

). Press the [cursor up] or [cursor down] keys

to change the value of the contrast. The screen will change instantly to show the
effect of the change. To abort the change, press the [backspace] key and the
setting will return to its original value. To accept the change, press the [enter] key.
The contrast setting has been saved.

The setting may also be aborted by pressing any of the assigned function keys
(other than F1). The function associated with that key will be executed.

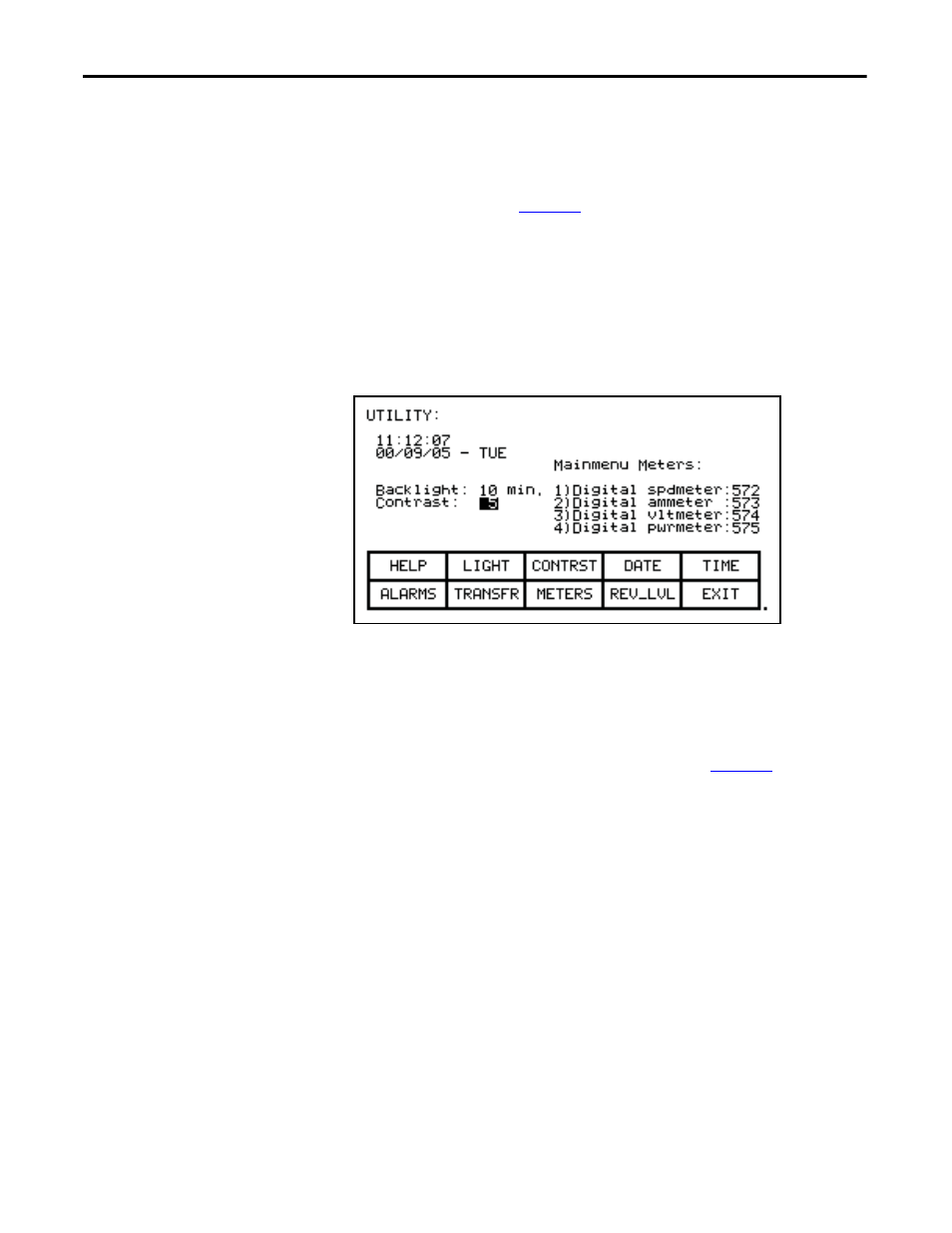

Figure 83 - Utility Contrast

Setting Time

The clock setting controls the time stamp that the drive uses on the information
contained on the alarm summary screen. To change the time, press the [F5] key.
The hour’s position of the clock will be in reverse video (

Figure 84

). Press the

[cursor up] or [cursor down] keys to change the value by a resolution of 1 unit.
Press the [cursor left] and [cursor right] keys to change the value by a resolution
of 10 units. To change the minutes press the [F5] key again and repeat the
procedure. Likewise to change the seconds press the [F5] key again. Each press of
the [F5] key will highlight the next position of the clock. The highlighted position
may be modified via the cursor keys.

To abort the change, press the [backspace] key and the clock will return to its
original time. To accept the change, press the [enter] key. The new clock setting
has been recorded.

The setting may also be aborted by pressing any of the assigned function keys
(other than F1 and F5). The function associated with that key will be executed.
