124

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

Chapter 3

Operator Interface

Enumerated Value

When the parameter is an enumerated value, the MODIFY PARAMETER
screen typical of

Figure 115

will be displayed. This screen shows:

the name of the parameter for which you are make the changes (i.e.
Operating Mode)

the tag code for the parameter (e.g. 4)

the actual value of the parameter contained in the drive

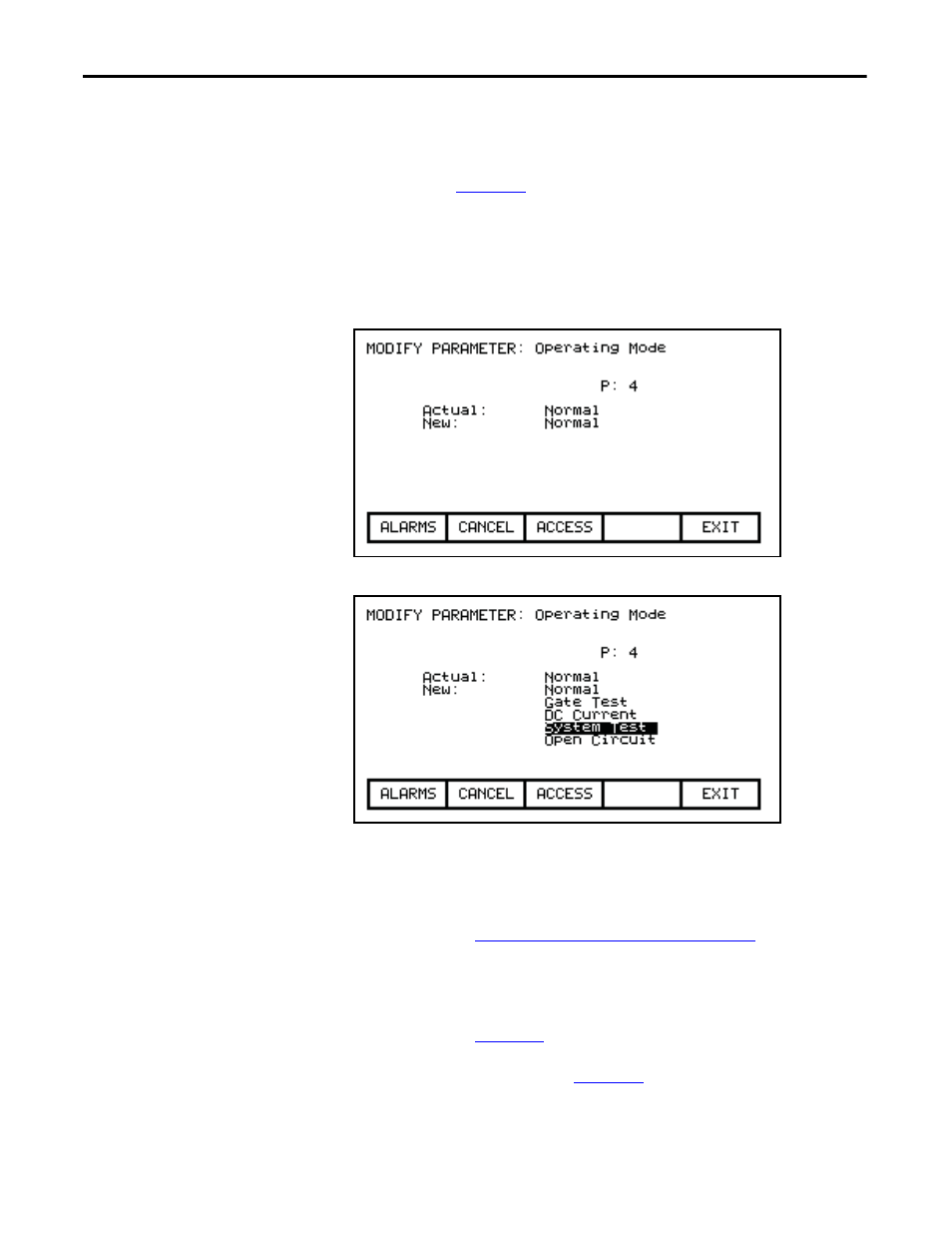

Figure 115 - Modify Enumerated Value

Figure 116 - Option List Viewed on Single Page

To be allowed to make changes to the parameter, the operator interface must be
set to an Access Level other than 'Monitor'. (You will be able to view the screen;
however, pressing the data entry keys will have no effect). If you are not in the
correct level, press the [F8] key in order to gain access to the parameter. Refer to
the section entitled

Enter/Modify an Access Level on page 116

for further

information on the operation to change the level.

Having gained access, press the up or down cursor keys to obtain a list of possible
options to select from. Use the up/down arrow keys to move the highlighting to
the desired option (

Figure 116

). If more options exist then what can be displayed

on a single screen, a triangle or inverted triangle symbol will indicate in which
direction the list can be expanded (

Figure 117

).
