Chapter 5
Component Definition and Maintenance

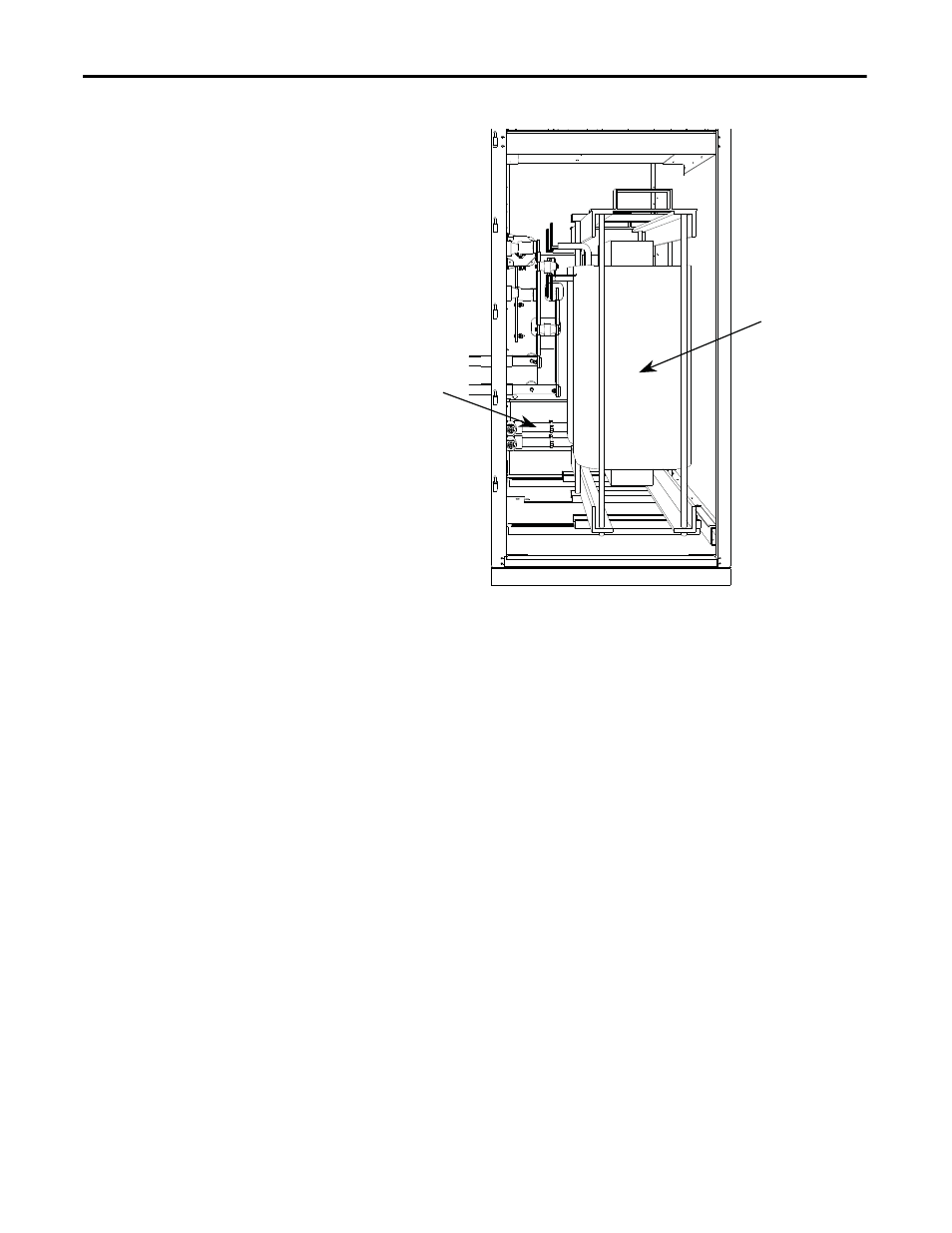

Figure 266 - DC Link Reactor
The installer needs to verify that the DC Link power connectors go to the proper
locations. You must also ensure that they are routed the same way so that
electrical clearances are not compromised.
The nameplate data must be compared to the old DC Link to ensure that the
ratings are appropriate for the drive system. Any changes in the nameplate should
be noted since the parameters within the drive will need to be changed.
Liquid-Cooled
DC Link Reactor
Cooling Pipes
