Page 125

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014
125
Operator Interface
Chapter 3
Use the up/down cursor keys to scroll onto these additional options. Press the
[enter] key to accept the new value as shown in

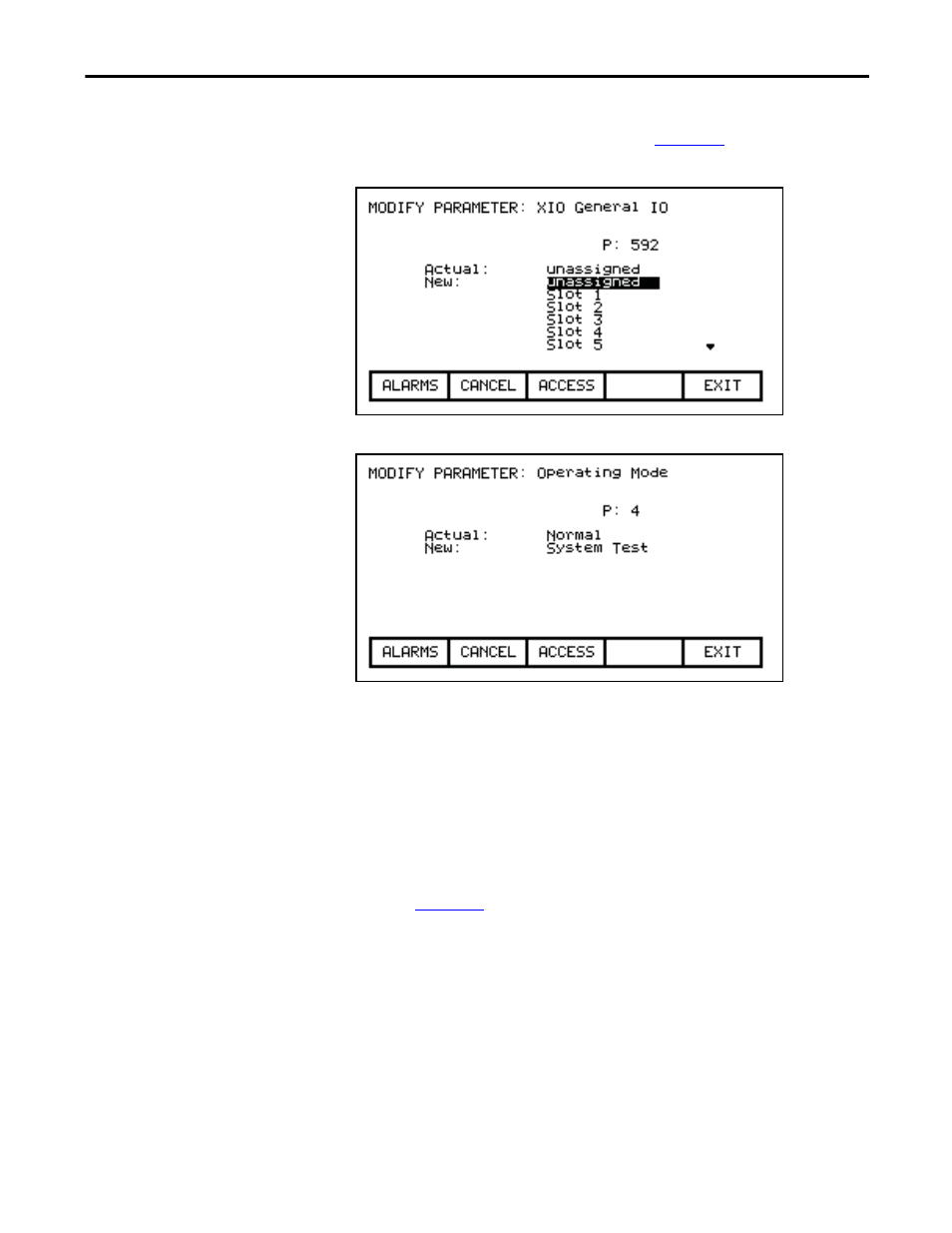

Figure 117 - Option List Viewed on Multiple Pages
Figure 118 - Modification Completed
The new value is not sent to the drive until you exit the screen with the [F10] key.
Prior to this you can modify the new value by repeating the above procedure, or
you can cancel the change by pressing the [F7] key. The CANCEL operation
returns the new value to that of the actual value.
Bit Encoded Value
When the parameter is a bit encoded value, the MODIFY PARAMETER screen
typical of
will be displayed. This screen shows:
•
the name of the parameter for which you are make the changes (i.e. Logic
Mask)
•
the tag code for the parameter (e.g. 241)
•
the name of the bit currently selected (Adapter 0)
•
the actual value of the parameter bits contained in the drive.
