154

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

Chapter 3

Operator Interface

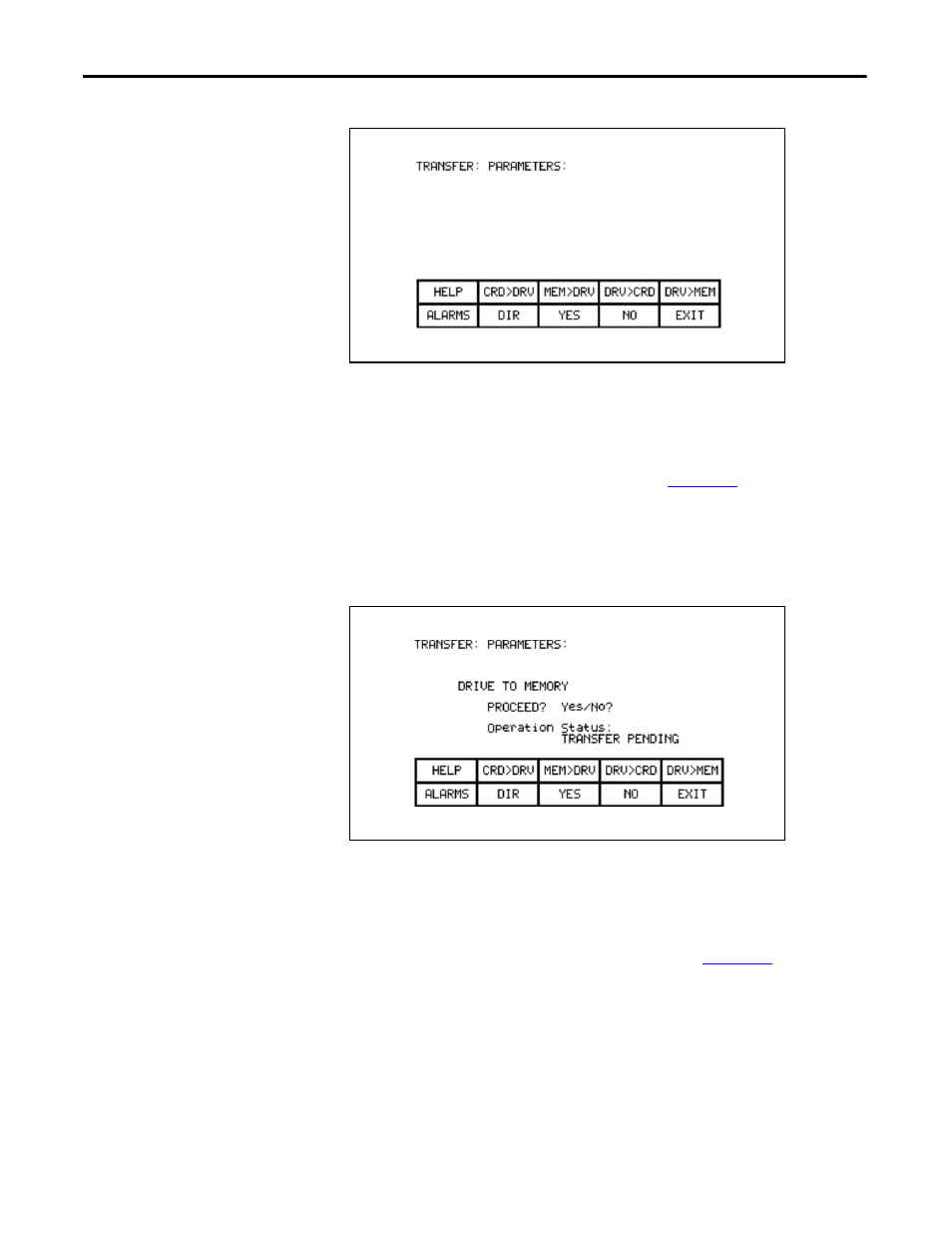

Figure 163 - Transfer Parameters Menu

Upload to Operator Interface

The parameters are read from the drive and stored in the operator interface by
pressing the [F5] key. The screen will appear as in

Figure 164

, indicating the

operation you are about to perform. The screen will then ask you to confirm the
operation. Press the [F8] key to proceed, or the [F9] key to abort. Performing a
“DRIVE TO MEMORY” transfer will overwrite any previous parameters stored
within the operator interface.

Figure 164 - Transfer Stored Parameters

Download from Operator Interface

The parameters stored in the operator interface are downloaded to the drive by
pressing the [F3] key. A screen similar to that shown in

Figure 164

will be shown

(except the operation will show “MEMORY TO DRIVE”). To confirm the
operation, press the [F8] key to proceed, or the [F9] key to abort. Performing a
“MEMORY TO DRIVE” transfer will overwrite the active parameters in the
drive. It will not affect the parameters stored within the drive’s NVRAM.

After parameters have been downloaded you will be prompted to make the new
parameters downloaded to the drive permanent. Refer to section “Message
Prompting” for further details.
