162

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

Chapter 3

Operator Interface

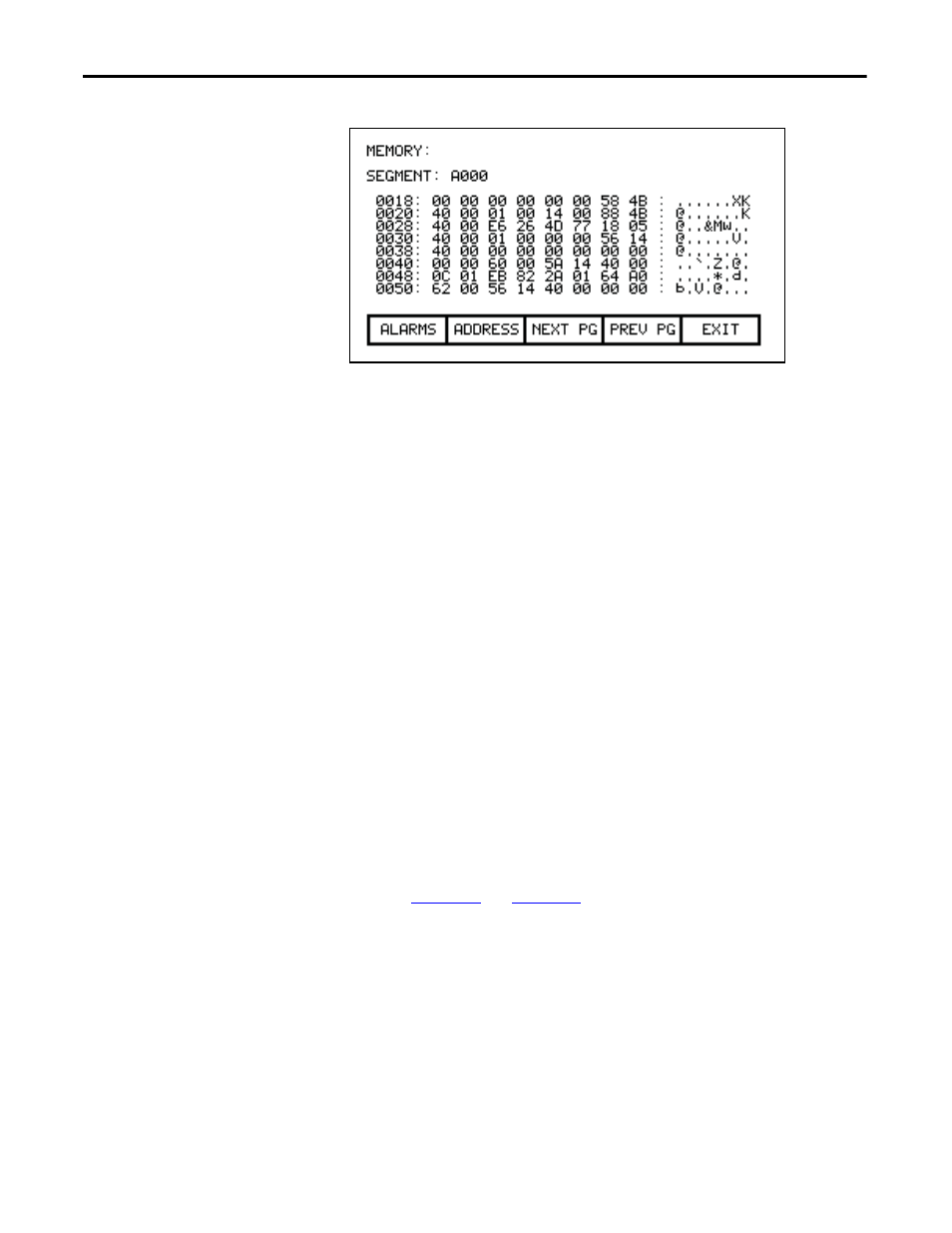

Figure 174 - Data at New Address

Database Download

The database download operation allows the operator interface to obtain the
majority of the information it requires on your command (instead of as needed).
The operation is initiated from any screen by pressing the [F10] key and the
[cursor up] key at the same time.

Obtaining the entire drive database is a lengthy process. As the operator interface
is receiving the database, it will display what portion of the database it is currently
obtaining, and the percent done. If the operator interface is successful in
obtaining the complete database, it will display a message indicating such and
wait for a key press from you. If unsuccessful, it will immediately return to the
screen from which this call was made. The download may be aborted at any time
by pressing any key on the operator interface. The portion of the database already
obtained will be valid. A subsequent request to download the database will
continue from where the previous download had terminated.

This screen will always return to the screen from which the download was
requested.

Operator Interface Menu
Hierarchy Chart

The screens of the operator interface are used to form a menu driven system to
access the various operations in the drive. The hierarchy of this menu system is
shown in

Figure 175

and

Figure 176

.

What Does It Show?

The chart shows the relationship between screens and a particular operation. It
also shows the path to reach a particular screen. This chart does not introduce
you to the use of the operator interface, however is useful as a reference to the
preceding material.
