114

Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

Chapter 3

Operator Interface

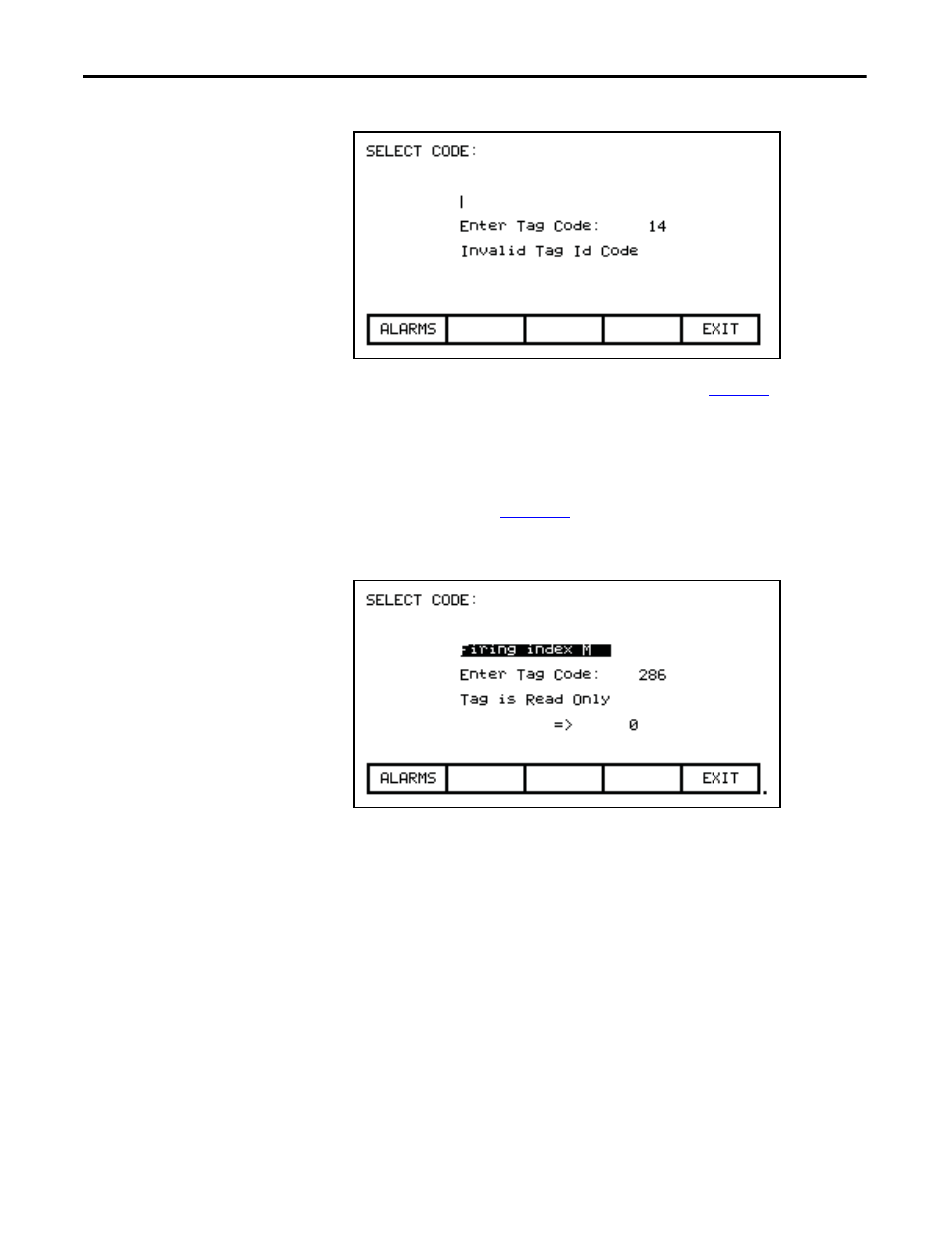

Figure 100 - Invalid Tag Code

When the [enter] key is pressed for a valid tag code (e.g.

Figure 99

) the selected

tag will be used to continue the operation for which the selection process was
being used if that tag is appropriate for the operation. For example, if you are
performing a parameter modification operation, but have selected a read-only
parameter tag code, you will be unable to exit the screen with this read-only
parameter. The screen will display this information, along with the tag's current
value, such as shown in

Figure 101

. Re-enter a tag code for a parameter or press

[F10] to return to the previous screen without making a selection.

Figure 101 - Selected Tag Inappropriate

Edit Text

Various operations require a text string to be entered. Operations requiring this
are:

setting external faults

adding text to selected Top Level Menu meters

identifying the drive with a text string

entering a filename

The operator interface's keypad does not contain any alpha keys to allow direct
input of the characters. This section will describe the operation for which
characters may be entered.
