Figure 84 - Utility Time

Setting Date

The calendar setting controls the date stamp that the drive uses on the
information contained on the alarm summary screen. To change the date, press
the [F4] key. The year position of the calendar will be in reverse video
(

Figure 85

). Press the [cursor up] or [cursor down] keys to change the value by a

resolution of 1 unit. Press the [cursor left] and [cursor right] keys to change the
value by a resolution of 10 units. To change the month press the [F4] key again and
repeat the procedure. Likewise, to change the day, press the [F4] key again. Each
press of the [F4] key will highlight the next position of the calendar. The
highlighted position may be modified via the cursor keys.

To abort the change, press the [backspace] key and the calendar will return to its
original date. To accept the change, press the [enter] key. The new calendar
setting has been recorded.

The setting may also be aborted by pressing any of the assigned function keys
(other than F1 and F4). The function associated with that key will be executed.

You can not set the day of the week. The operator interface will determine the
day of the week based on the date that you set in the calendar.

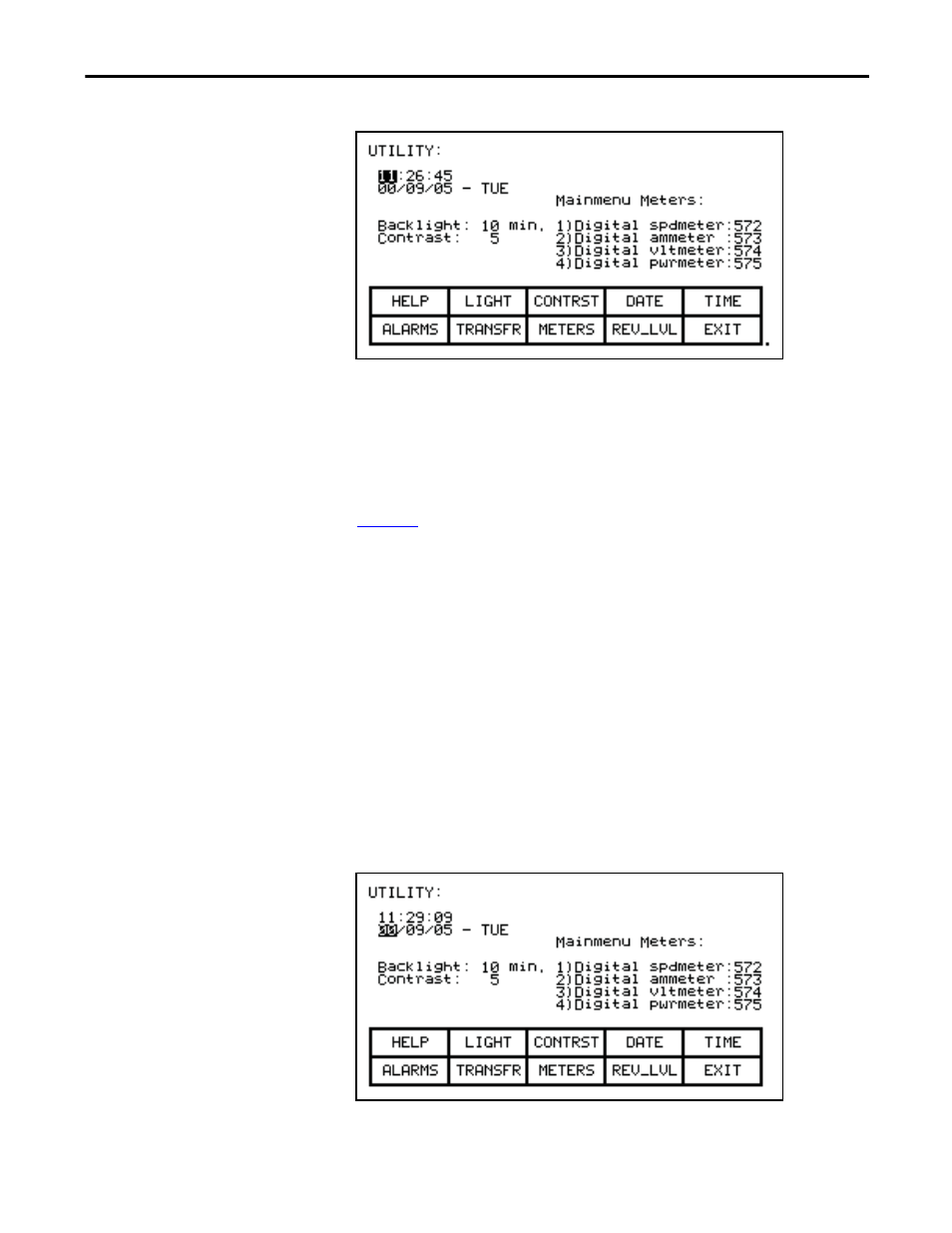

Figure 85 - Utility Date
