Rockwell Automation 7000L PowerFlex Medium Voltage AC Drive (C-Frame) - ForGe Control User Manual
Page 401
Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014
401
Component Definition and Maintenance
Chapter 5
3.
From the File menu, click Open… The Open window will appear. Locate
the HyperTerminal connection that you just created in step 2 above
(ForGe_CONNECTION in this example) and then click Open.
4.
Press the ENTER key. This should bring up the following options menu in
the HyperTerminal window.

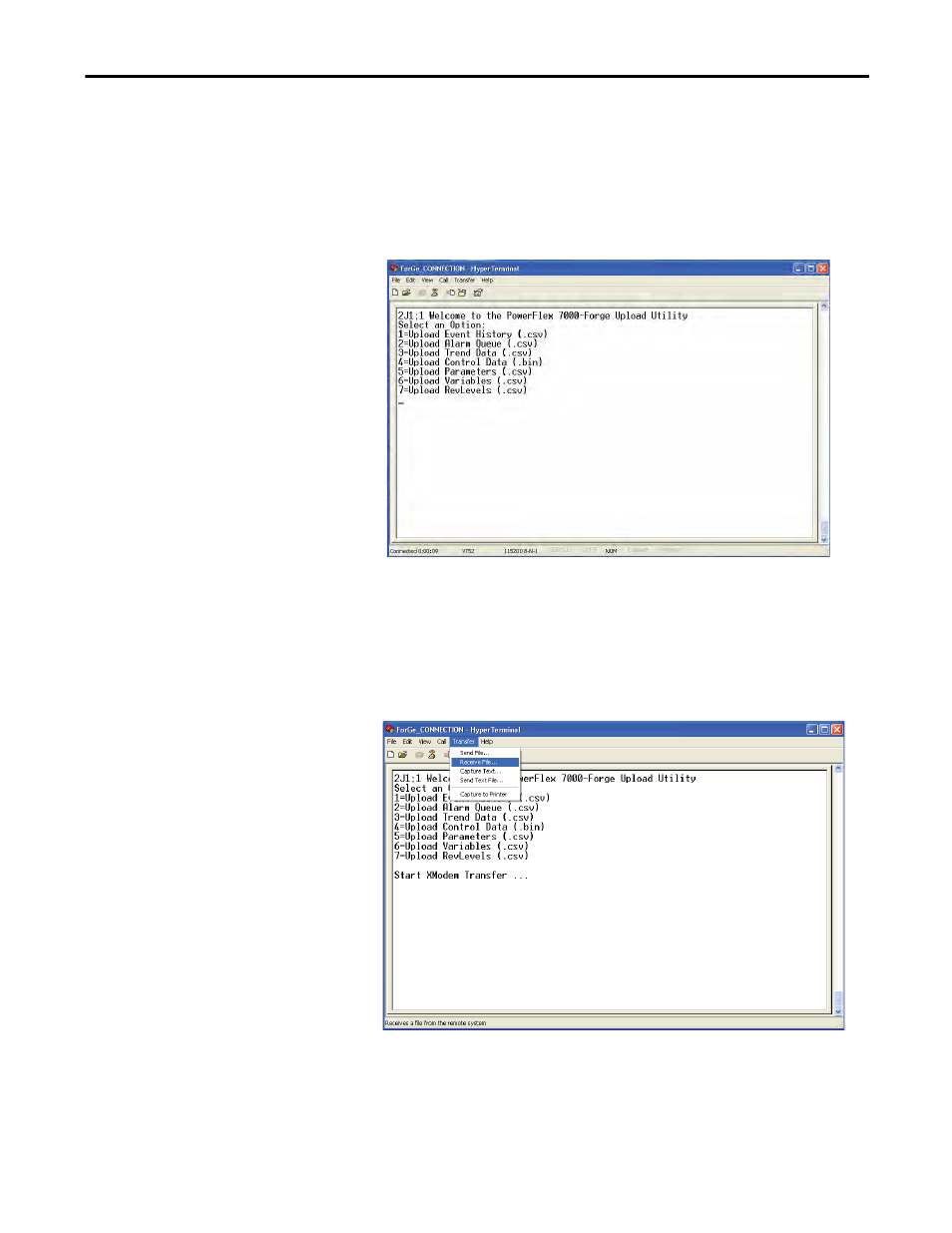

Figure 350 - HyperTerminal Window
5.
From the above menu select the desired option by pressing the
corresponding number to upload (print) the data. To upload Control
Data,
select option 4.
6.
After selecting the desired option, you need to start the transfer by
selecting Receive File … from the Transfer menu as shown below.
Figure 351 - Receive File
