Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

147

Operator Interface

Chapter 3

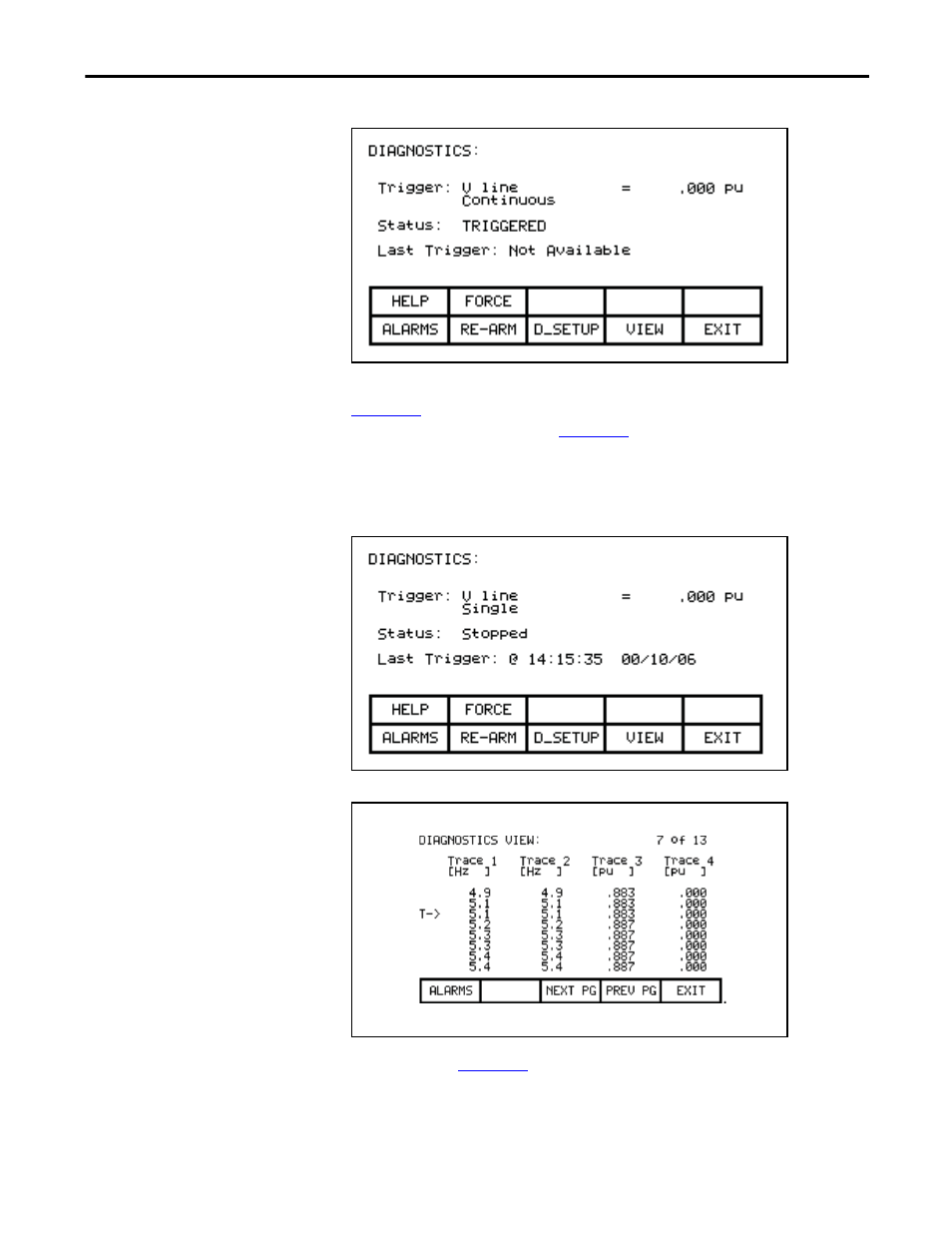

Figure 155 - Diagnostic Triggered

Once the data has started to be collected, the status will show 'triggered' as in

Figure 155

. When the buffer contains a complete capture, it will show “stopped”

(if a single capture), as shown in

Figure 156

. The time and date at which the

trigger occurred is displayed. The trend buffers may only be viewed when their
status is ‘stopped’. If in continuous mode, the capture will stop when the buffers
are viewed. To view the trend buffers, press the [F9] key.

Figure 156 - Diagnostic Stopped

Figure 157 - View the Trend Buffer(s)

A screen such as

Figure 157

will be shown. Upon initial entry, the screen will be

positioned to the trigger point, shown by the "T ->". To view data either side of
the trigger point, press the [F8] and [F9] keys.
