Chapter 3 Operator Interface
Selecting Meters
The utility screen ( Figure 81 ) shows the four tags assigned to the four meters on
the 'Top Level Menu'. These can be changed by pressing the [F8] key. This
displays a new screen (
Figure 86 ) from which the selection and text associated
with the meter is changed.

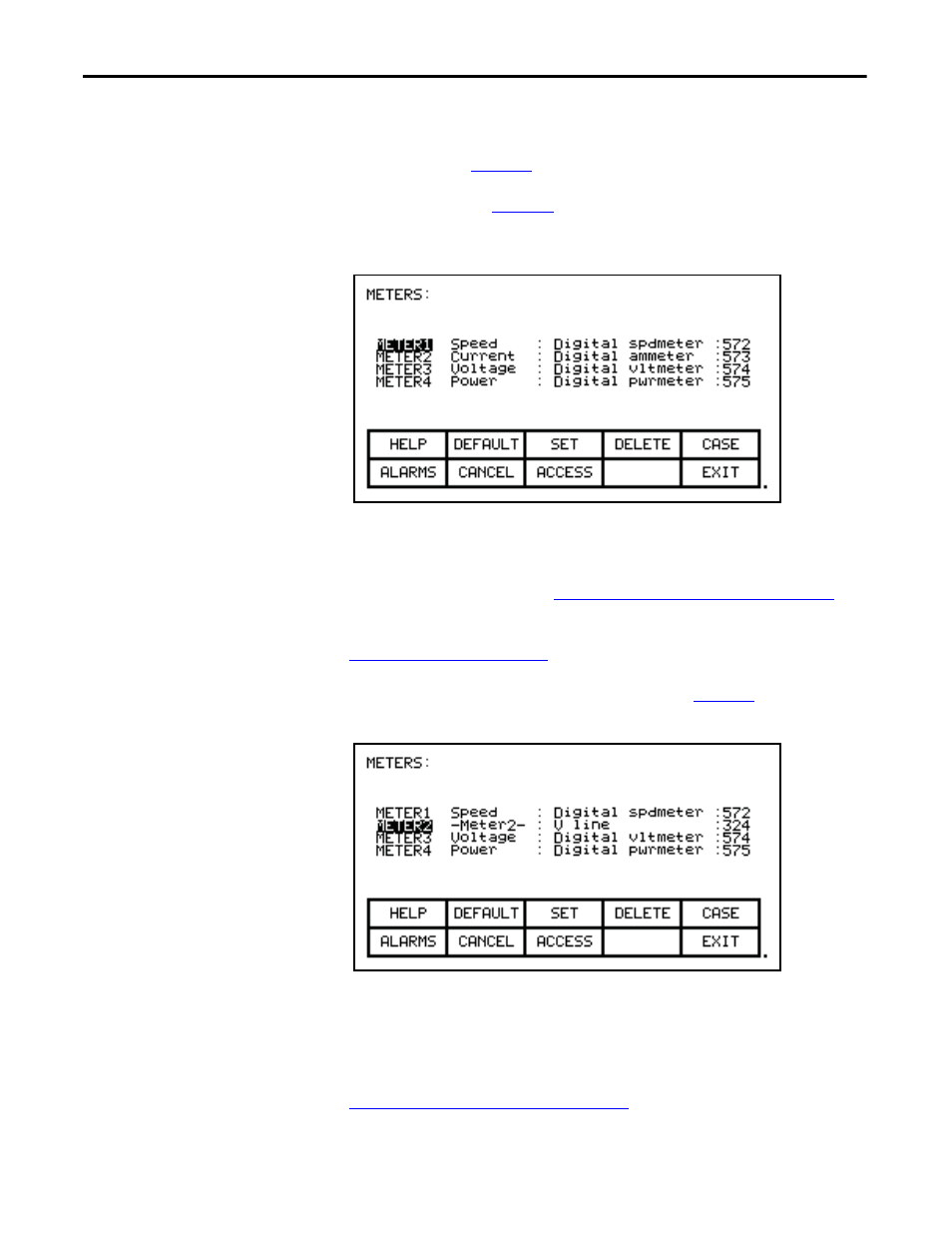

Figure 86 - Utility Meter
To change the tag attach to a meter, use the [cursor up] and [cursor down] keys to
highlight the desired meter and press the [enter] key. (If nothing happens then
you have not gained the required access to make changes.) Press the [F8] key in
order to gain access and refer to
Enter/Modify an Access Level on page 116 .
This will begin the selection process of a tag as described in the section entitled
Select a Parameter on page 110 . When you have completed the selection process,
the selected tag will be assigned to the meter (i.e. V Line). The name of the meter
will have been changed to a default string as shown in
Figure 87 for meter 2.
Figure 87 - Utility Meter V Line
The text consists of eight characters. This text is displayed on the Top Level
Menu along with the value and units of the tag. Select the meter that you wish to
modify via the [cursor up] and [cursor down] keys. To modify the text, press the
[cursor right] key. (If nothing happens then you have not gained the required
access to make changes. Press the [F8] key in order to gain access and refer to
Enter/Modify an Access Level on page 116
