Rockwell Automation 7000L PowerFlex Medium Voltage AC Drive (C-Frame) - ForGe Control User Manual
Page 352
352
Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014
Chapter 5
Component Definition and Maintenance
10.
Apply control power to the drive. The DPMs are shipped with no
firmware installed, so the drive will automatically go into download mode.
Install firmware in the drive following the guidelines on
11.
Program the drive. Refer to Technical Data “Medium Voltage AC Drive
Parameters” – Publication 7000-TD002_-EN-P. The parameters should
also be saved to NVRAM and then externally to the drive using the
options described earlier in this section.

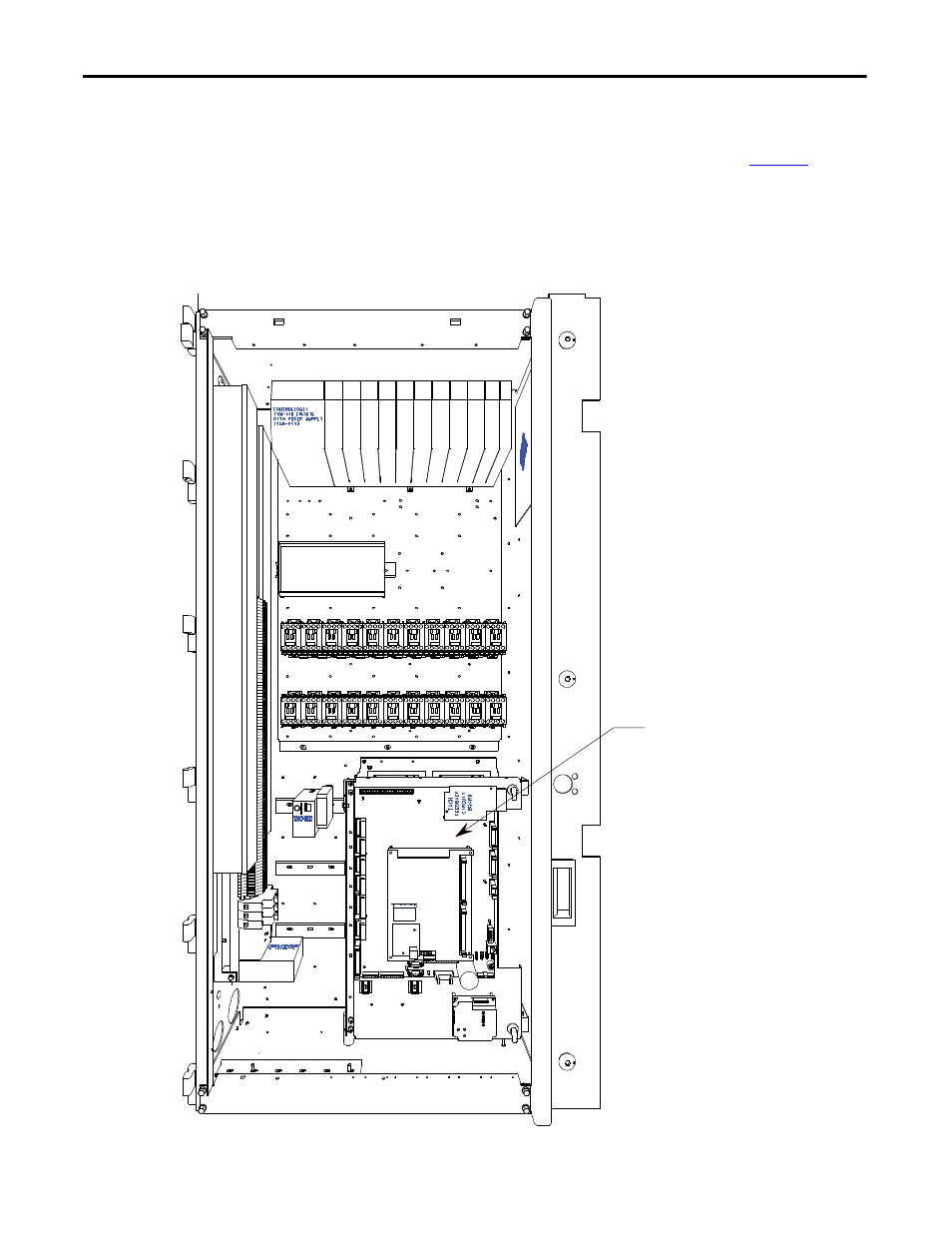

Figure 291 - ACB and DPM Replacement
Analog Control Board
(ACB)
ANALOG
CONTROL
BOARD
