Configuring Main System
61
1
1.7.2 Setting Event Logs
You can define several event log settings, specifying which event log to be recorded, the interval time
to write the log into the system, video player, and the number of days to keep the logs. To access these
log settings, click the Configure button (No.14, Figure 1-2), select System Configure and select
System Log Setting to display the following dialog box.

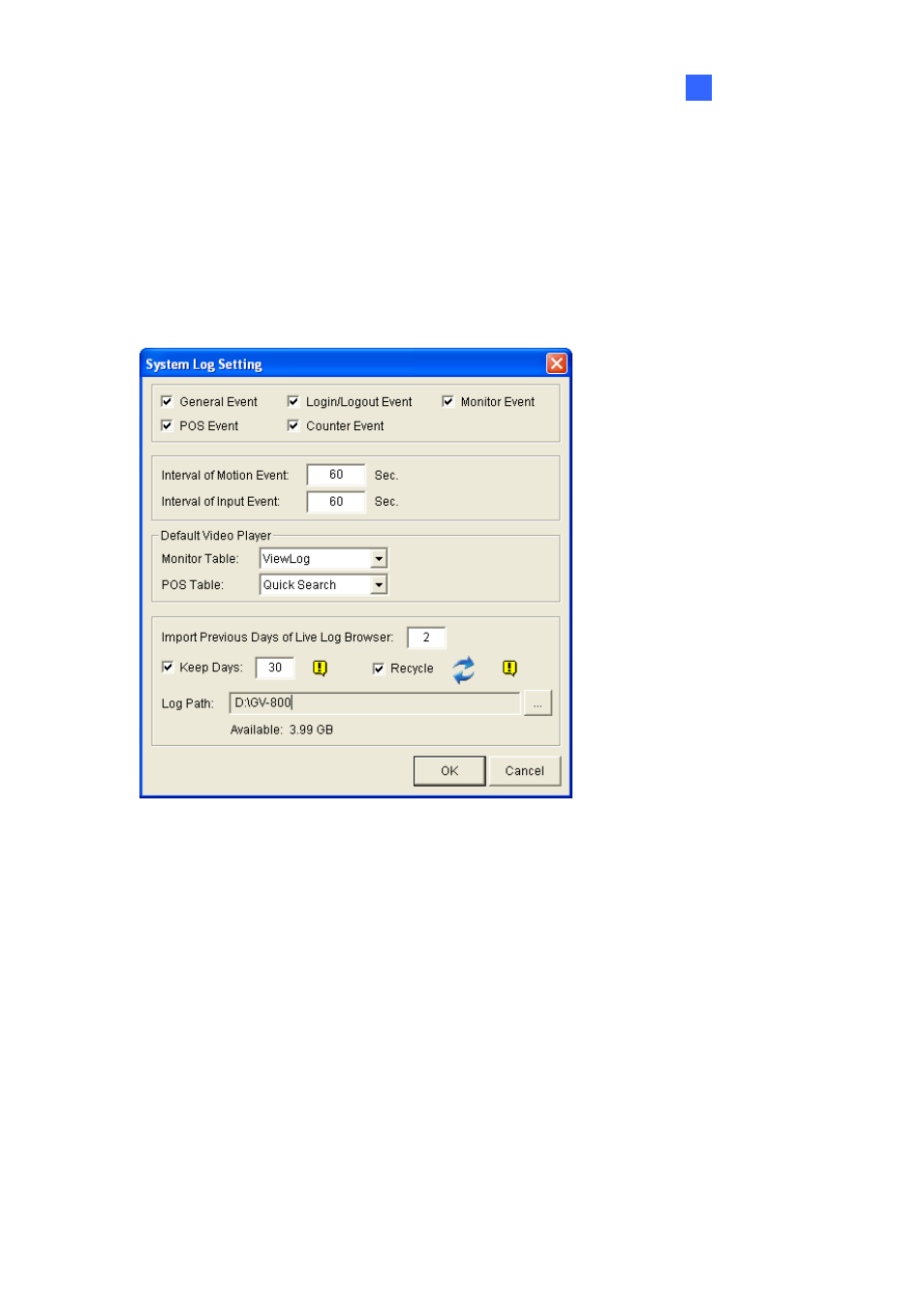

Figure 1-46
„ General Event: Records system startup/exit, network server start/stop, and recording start/stop.
„ Login/Logout Event: Records the login/logout activities of the local user to GV-System and
WebCam Server.
„ Monitor Event: Records motion-triggered and I/O-triggered events. For this feature to work, you
must enable the Register Motion Event option in Figure 1-11 or the Register Input Event option
in Figure 6-7 in Chapter 6.
„ POS Event: Records POS transaction data.
„ Counter Event: Records counting results.
„ Interval of Motion Event: Specifies the log interval between motion-triggered events. This setting
could prevent the System Log growing too big when trying to log all events under a
motion-intensive surveillance area.
„ Interval of Input Event: Specifies the log interval between I/O-triggered events.
