11.14 Quad Spot Monitor Controller
The Controller integrates the GV-Multi Quad Card with TV monitor (spot monitor) applications. It
features:
z Up to 5 TV monitors can be controlled.
z TV Monitor 1 supports up to 16 screen divisions, and TV Monitor 2 to TV Monitor 5 support 1 and
4 divisions.
z Different screen divisions can be set up on each monitor.
z The channel sequence of screen divisions is user-defined.
Note:
1. This function is only supported in GV-Video Capture Cards with GV-Multi Quad Card, which
include GV-2008/ 600A / 650A / 800A / 1008 / 1120A / 1240A / GV-1480A.
2. The Controller does not support the videos from IP devices. To export videos from IP devices,
refer to the Digital Matrix section later in this chapter.
11.14.1 Setting the Controller
Click the Configure button (No. 14, Figure 1-2), point to Accessories, and select Quad Spot
Monitors Setup. The TV Quad Setting dialog box appears.
z In the General Setting tab, you can modify Video Format and Video Attribute for all TV monitors.
z In the TV tabs (TV1 to TV5), you can set up the following configurations for each TV monitor.

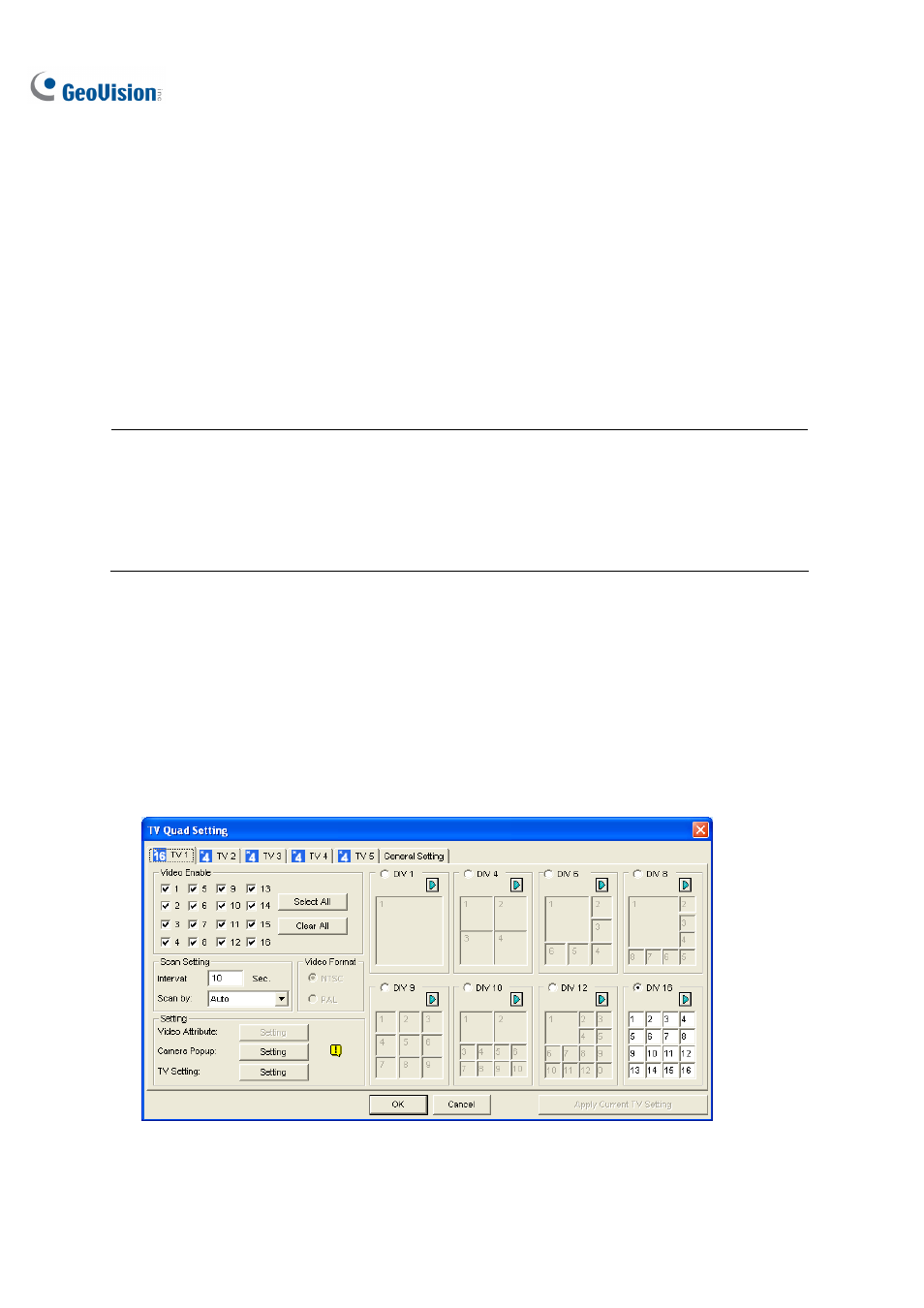

Figure 11-82
