270
4.9 Touch Screen Support
By the touch of a finger, the touch screen panel allows you to change screen divisions, switch to full
screen and close the ViewLog screen.

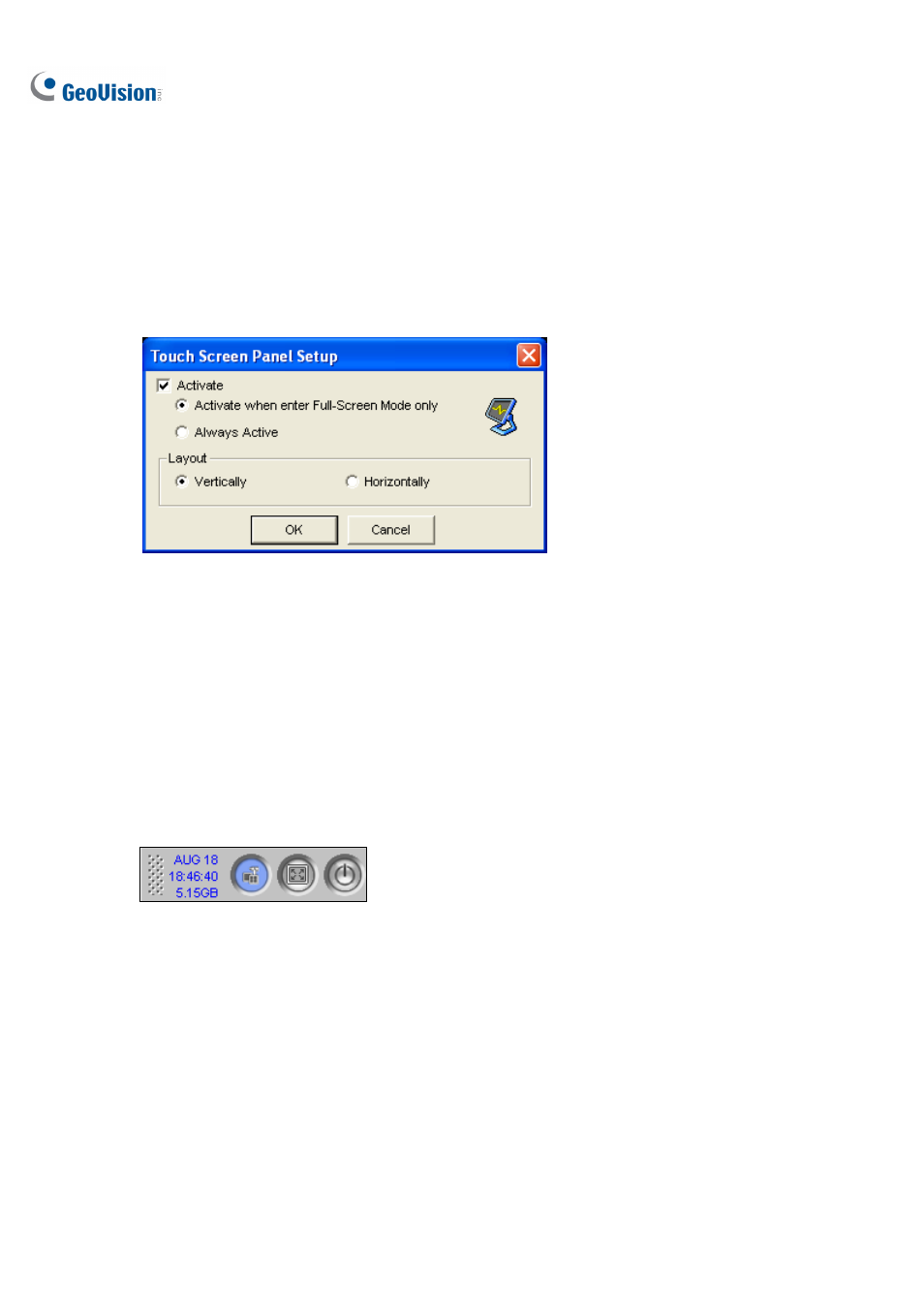

1. Click the Tools button (No.6, Figure 4-2), point to Tool Kit, select Touch Screen Panel, and click
Panel Setup. This dialog box appears.
Figure 4-54
2. Click Active to have these options:
„ Active when enter Full-Screen Mode only: Launches automatically the panel when the full
screen view is applied.
„ Always Active: Always displays on the ViewLog screen.
„ Layout: Select a vertical or horizontal panel.
3. Click OK for the above settings.
4. At the upper left corner of the screen, an information window indicating date, time and storage
space will appear. Left-click it to open this touch panel.
Figure 4-55
