1.4.2 Associate Monitoring
You can set camera channels to start recording when any of the associated camera channels begins
recording.
1. Click
the
Configure button (No. 14, Figure 1-2), select System Configure, and select Camera
Configure. This dialog box appears.

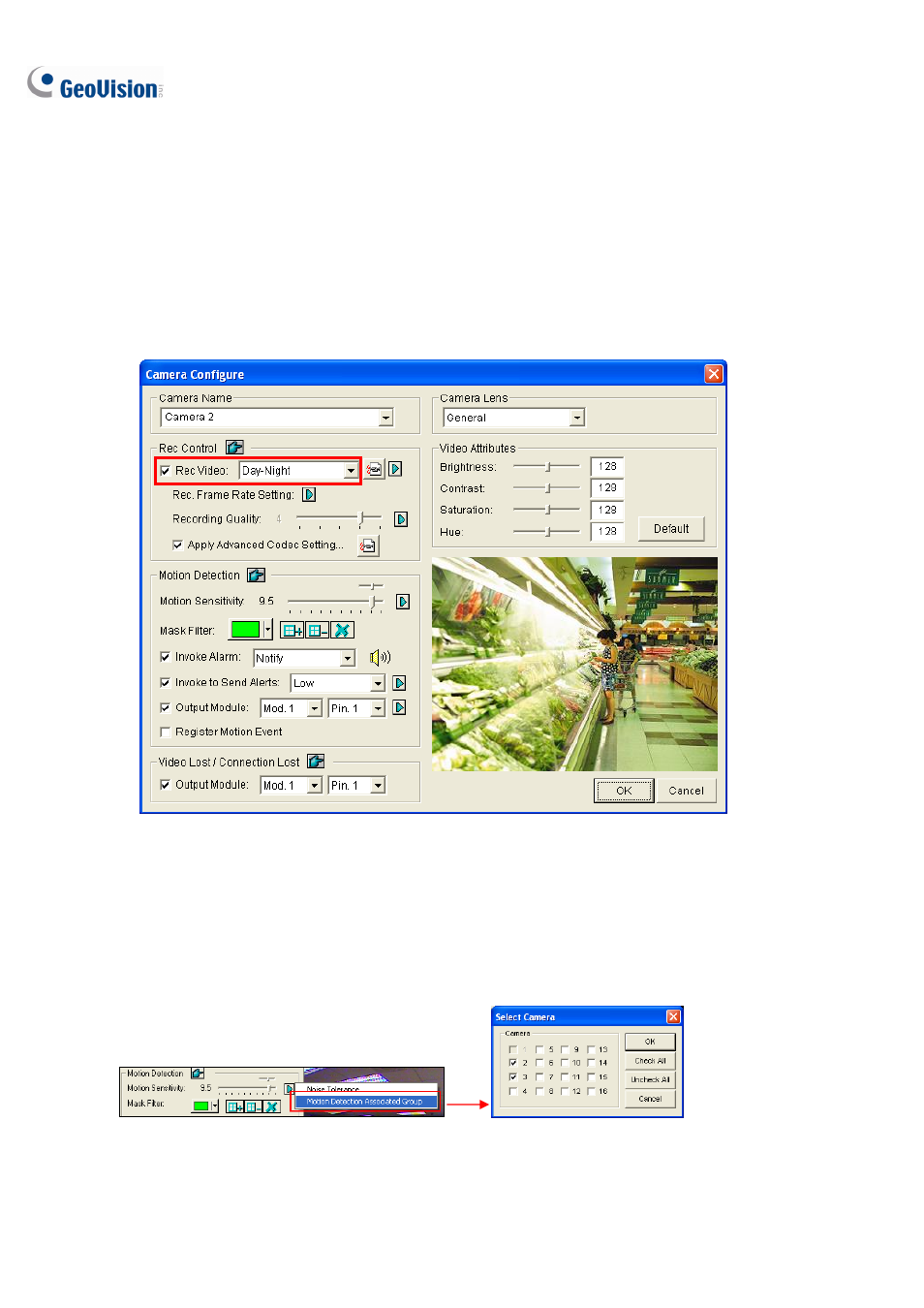

Figure 1-29
2. From
the
Rec Video drop-down list, select either Motion Detect or Day-Night. If you select
Day-Night, remember to click the Arrow button beside to configure the time spans and also set
the recording mode to be Motion Detect.
3. Click
the
Arrow button on the right of Motion Sensitivity, and select Motion Detection
Associated Group. This dialog box appears.
Figure 1-30
