Useful Utilities
545
11
3. Click

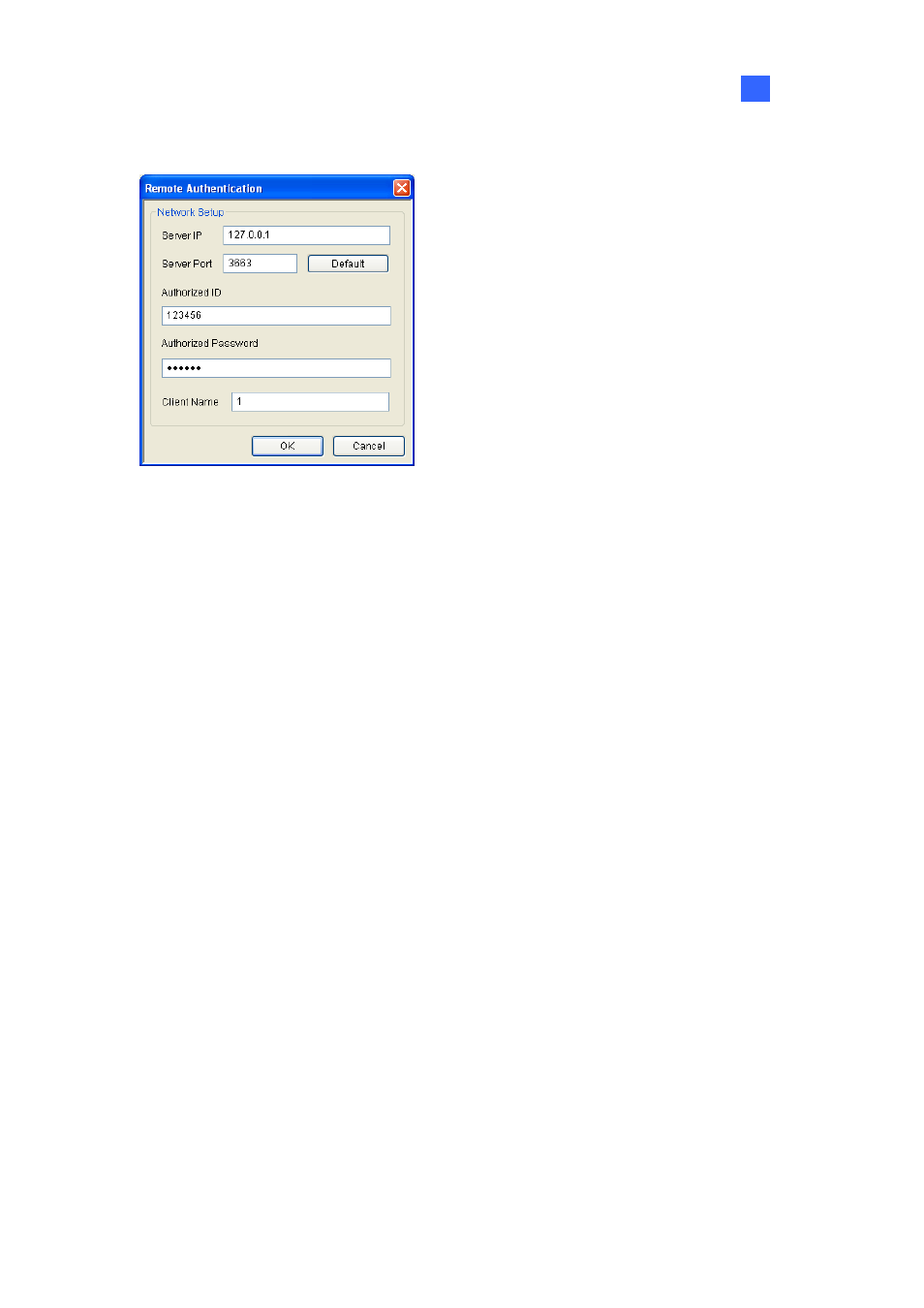

Tools on the menu bar, and select Remote Authentication. This dialog box appears.
Figure 11-35
4. Type the IP address, authorized ID and authorized password of the Authentication Server. Type
the E-Map Server’s client name created on the Authentication Server. Click OK.
5. Click
the
Start Service button on the toolbar to start the E-Map Server.
6. When you log into the E-Map Server, enter the user ID and password created on the
Authentication Server. A list of assigned GV-System hosts to the user will be displayed.
Accessing from Control Center
The Control Center can access account settings of the Authentication Server.
1. On the Host List, right-click Host List by ID and select Remote Authentication Setup. A dialog
box appears. See Figure 11-35.
2. Type the IP address, authorized ID and authorized password of the Authentication Server. Type
the Control Center’s client name created on the Authentication Server. Click OK to enable
connecting to the Authentication Server.
3. To access the Authentication Server account settings, on the Host List, right-click Host List by ID
and select Get Host List by ID. A dialog box prompts you for ID and password.
4. Type a user ID and password created on the Authentication Server, and click OK. A list of
assigned GV-System hosts to the user will be displayed.
