148
3.4 Object Counting and Intrusion Alarm
The Object Counting provides bi-directional counting of objects under the surveillance area. When
defined, it could count any objects, such as people, vehicles, animals, etc.
1. Click the Configure button (No.14, Figure 1-2), point to Video Analysis, and then select
Counter/Intruder Alarm Setting. This dialog box appears.

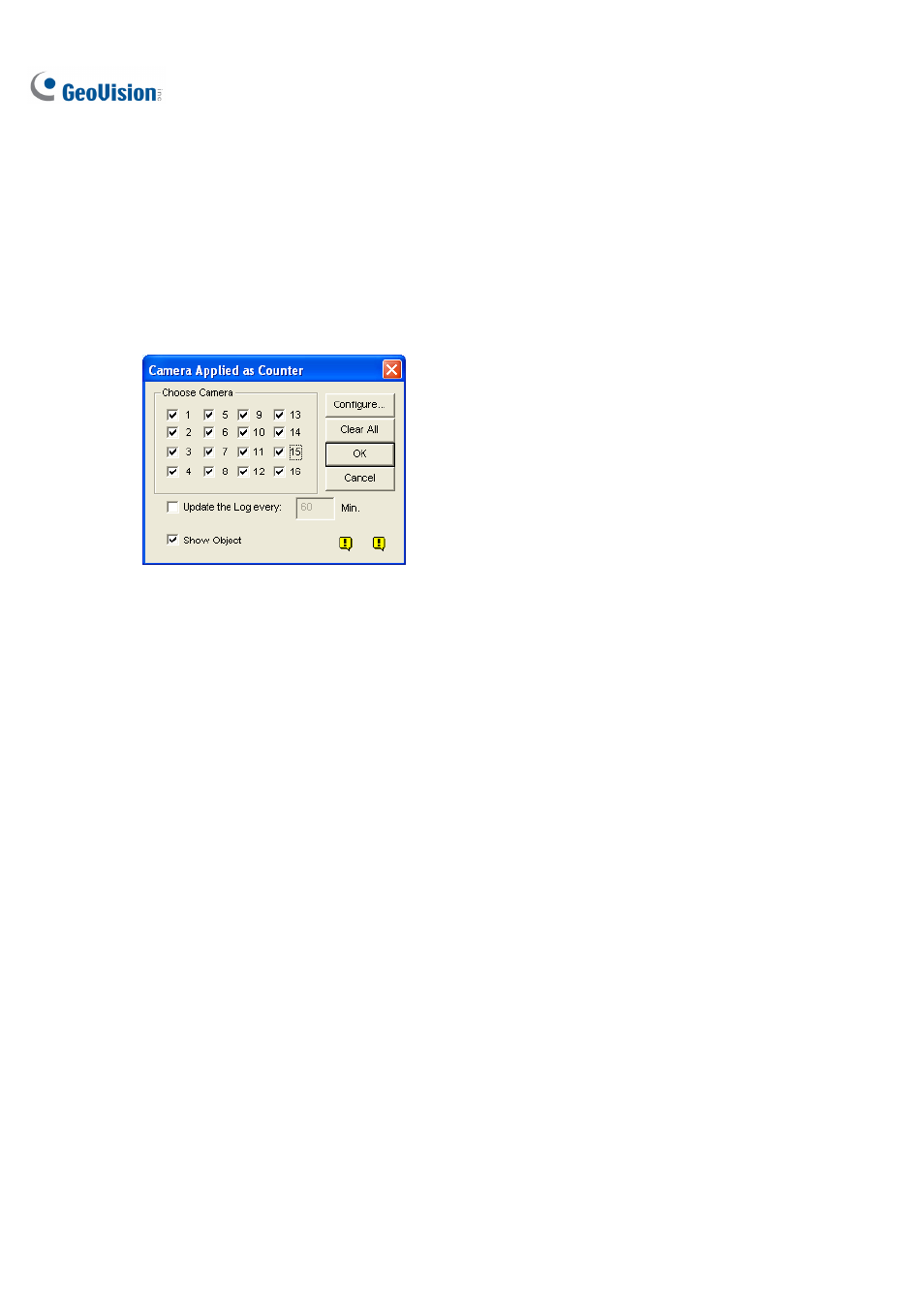

Figure 3-17
2. Select the desired cameras for the counter application.
3. Select Update the Log and specify the time interval in minutes to store the counting results to the
System Log.
4. Select Show Object to put a rectangle around the object being tracked.
5. Click the Configure tab to open the Setup dialog box.
