Useful Utilities
607
11
11.15.2 Setting Live View
You can set different live views and screen divisions for each monitor.
1. On the main screen, click Configure, click Accessories, and select Digital Matrix Setting. This
dialog box appears.

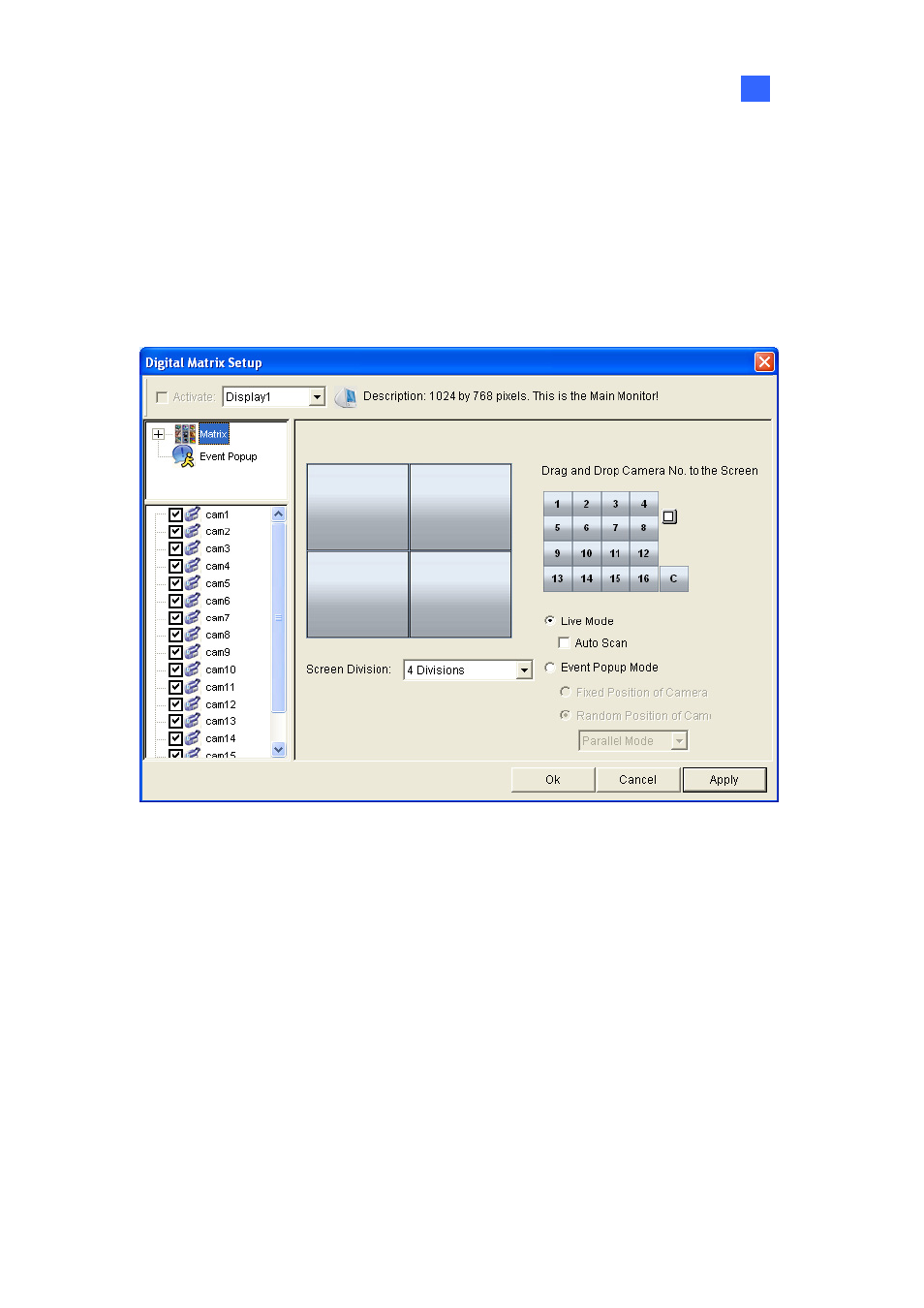

Figure 11-89
2. Use the Display list to select the monitor to be configured.
3. Select Screen Division.
4. Drag and drop the camera numbers to the desired positions on the divisions. To clear the
assignment, drag and drop the “C” icon to that position.
5. Select Live Mode.
6. Repeat above steps to configure other monitors.
7. Click OK to apply the settings.
