I /O Applications
307
6
Editing a Group:

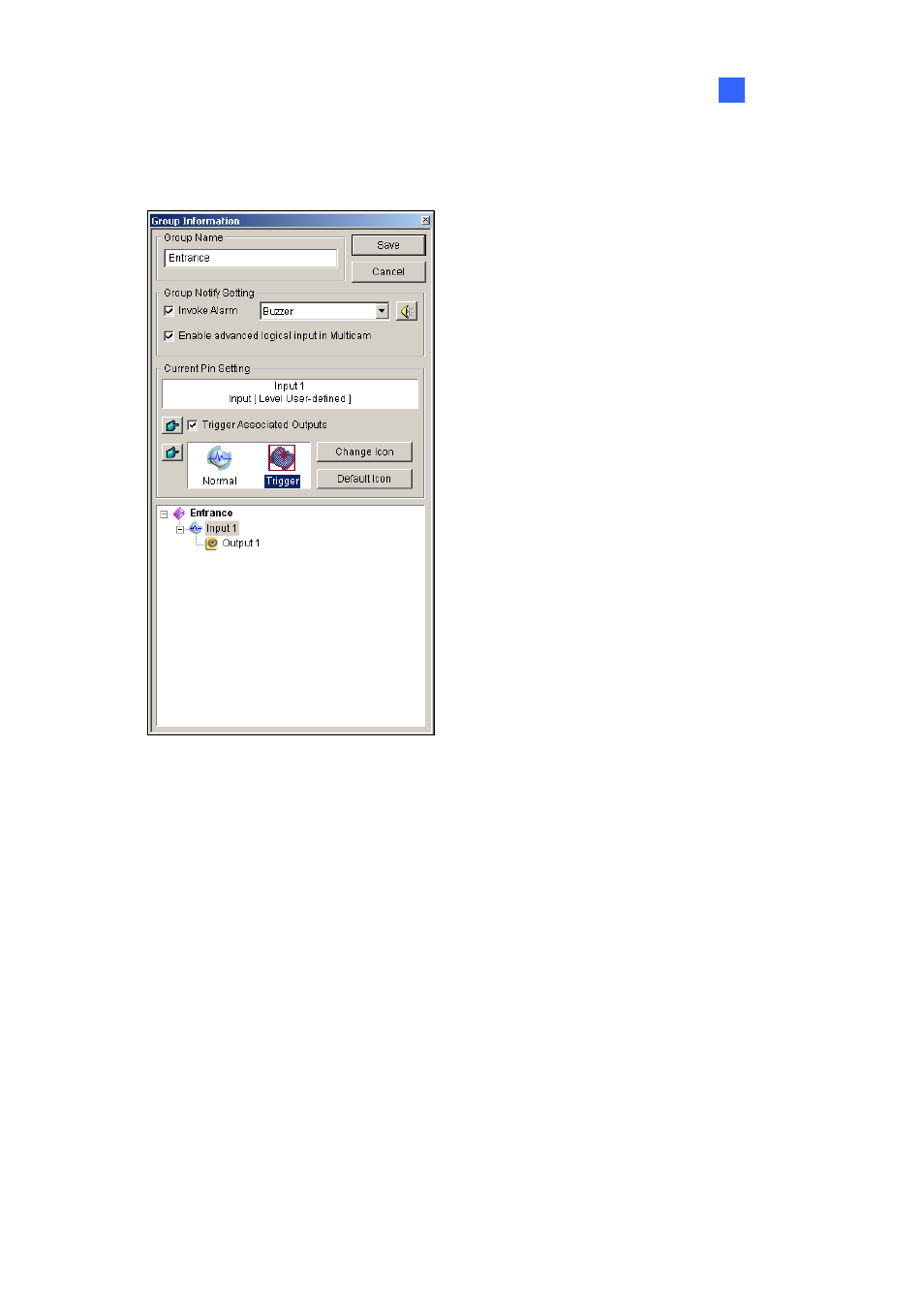

To modify group settings, right-click a group, and select View/Edit. This dialog box appears.
Figure 6-20
[Group Name] As described in Figure 6-19.
[Group Notify Setting] As described in Figure 6-19.
[Current Pin Setting] To enable this option, highlight an I/O device from the group list at the bottom.
Trigger Associated Outputs: Triggers outputs in cascade mode. Click the Finger button to apply
the change to all I/O devices at the same group.
Change Icon: To enable this option, select one of two displayed icons: Normal or Trigger. Click
the Change Icon button to change an icon. Click the Finger button to apply the change to all I/O
devices at the same group.
