CCTV Camera Pros Geovision 8.5 Multicam Digital Surveillance System - Manual (Page 386)

368
8.2.11 FTP Server Settings
You can access the recorded images of JPEG format from a remote computer installed with the FTP
server. In Figure 8-9, select the FTP transfer JPEG file option, and then click the FTP Setup button to
display the following dialog box.

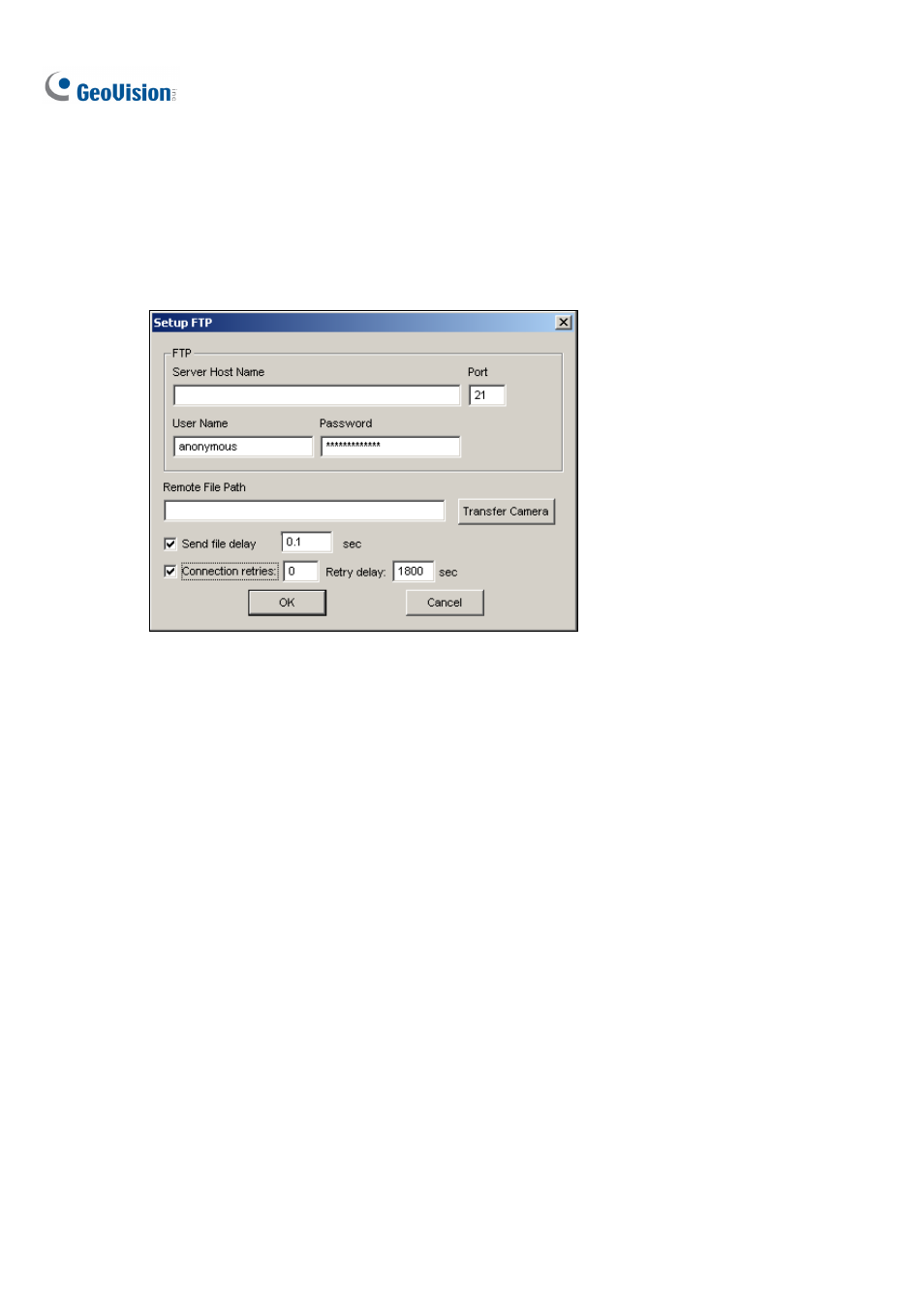

Figure 8-17 FTP Setup
1. In the Server Host Name field, type the IP address or domain name of the FTP server. Modify the
default port value 21 if necessary.
2. Type a login username and password of the FTP server.
3. Specify a file path to save the recorded images on the FTP server.
4. Click the Transfer Camera button and assign which camera’s files to be transferred to the FTP
server.
5. In the Send File Delay field, specify the frequency to upload recorded images from the
GV-System to the FTP server. The time range is from 0.1 to 600 seconds.
6. In the Connection Retries field, specify the number of retries when the FTP connection fails (Max:
999). In the Retry Delay field, specify the interval between each connection retry (Max: 9999
sec.).
7. Click OK to apply above settings.
