Getting Started Model 6200E Instruction Manual
34 M6200E Rev: A1
Table 3-6: Front Panel Display During System Warm-Up
NAME COLOR BEHAVIOR SIGNIFICANCE
Concentration
Field
N/A Displays current,
compensated H
2
S
Concentration
N/A
Mode Field N/A Displays blinking
“SAMPLE”
Instrument is in sample mode but is still in the
process of warming up.
STATUS LED’S
Sample Green On Unit is operating in sample mode, front panel display
is being updated.
Cal Yellow Off The instrument’s calibration is not enabled.
Fault Red Blinking The analyzer is warming up and hence out of
specification for a fault-free reading. various warning
messages will appear.
MODE FIELD
KEY DEFINITIONS
MESSAGE FIELD CONCENTRATION FIELD STATUS LED’s
KEYBOARD ON / OFF SWITCH
FASTENER FASTENER
POWER
FAULT
CAL
SAMPLE
UV FLUORESCENCE SO2 ANALYZER - MODEL 6200E
SAMPLE A RANGE = 500.0 PPB SO2 = 400.0
TST> CAL SETUP
LOCKING SCREW

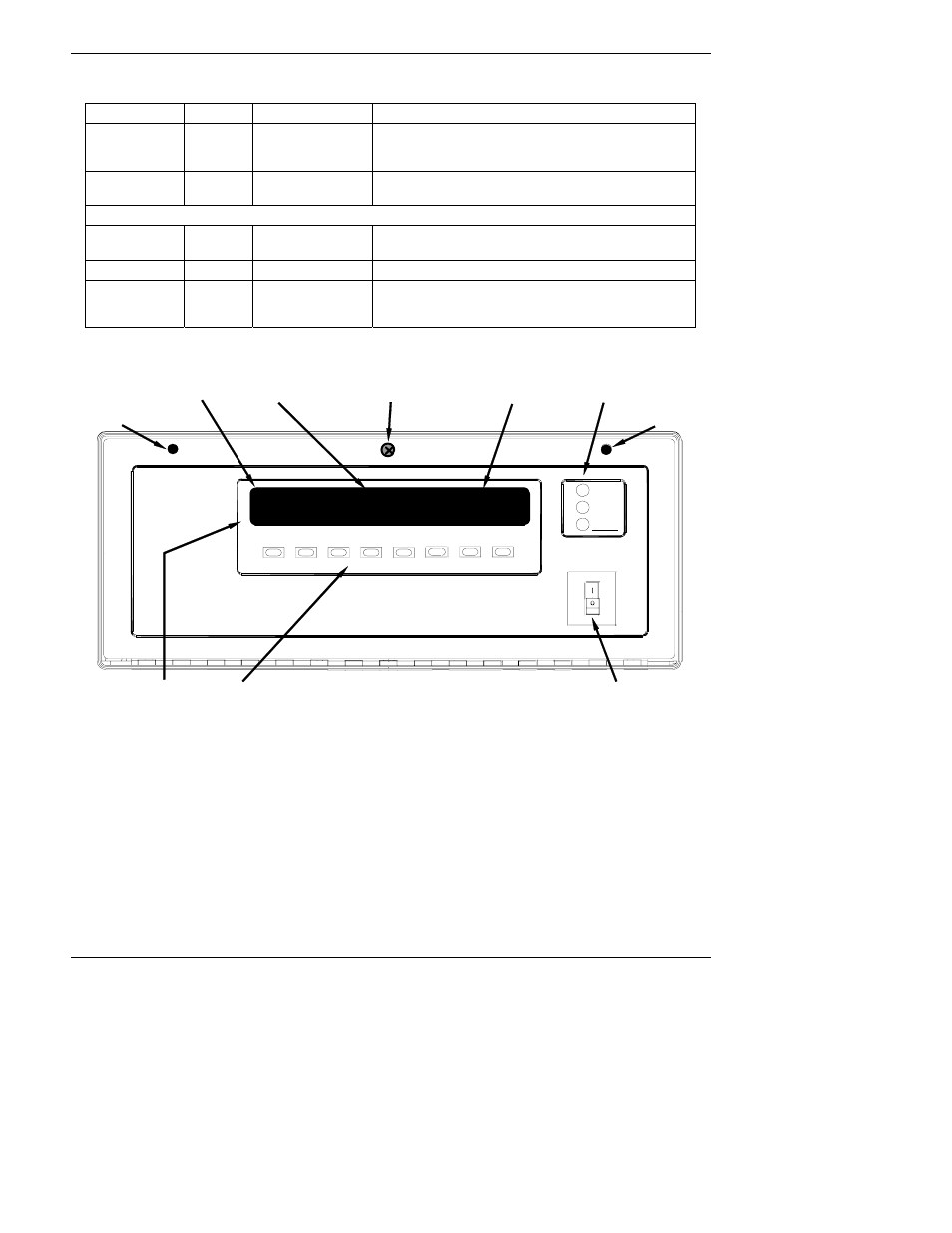

Figure 3-10: Front Panel Layout
3.2.3. Warning Messages
Because internal temperatures and other conditions may be outside of specified limits during the
analyzer’s warm-up period, the software will suppress most warning conditions for 60 minutes
after power up.
If warning messages persist after 60 minutes, investigate their cause using the troubleshooting
guidelines in Chapter 11. The following table includes a brief description of the various warning
messages that may appear.
