Model 6200E Instruction Manual Getting Started
M6200E Rev: A1 31
NOTE
Gas flow must be maintained at all times for units with IZS Options installed. The IZS
option includes a permeation tube which emits H
2
S. Insufficient gas flow can build up
H
2
S to levels that will damage the instrument.
Remove the permeation device when taking the analyzer out of operation.
Particulate Filter
ON/OFF
SWITCH
PS1
(+5 VDC; ±15VDC)
PS2
(+12 VDC)
Pump Assy
Relay Board
Reaction
Cell
Vacuum
Manifold
Front Panel
Rear Panel
PC/104 Card
Mother
Board
Power
Receptacle
PMT Housing
PMT Preamp PCA
PMT Cooling System
UV Source Lap
Hydrocarbon Scrubber
(Kicker)
Hidden from view
SO
2
Æ H
2
S Converter
Molybdenum
Converter
SO
2
Scrubber
SO
2
Æ H
2
S
Switching Valve
IZS and
ZS / CS Valves

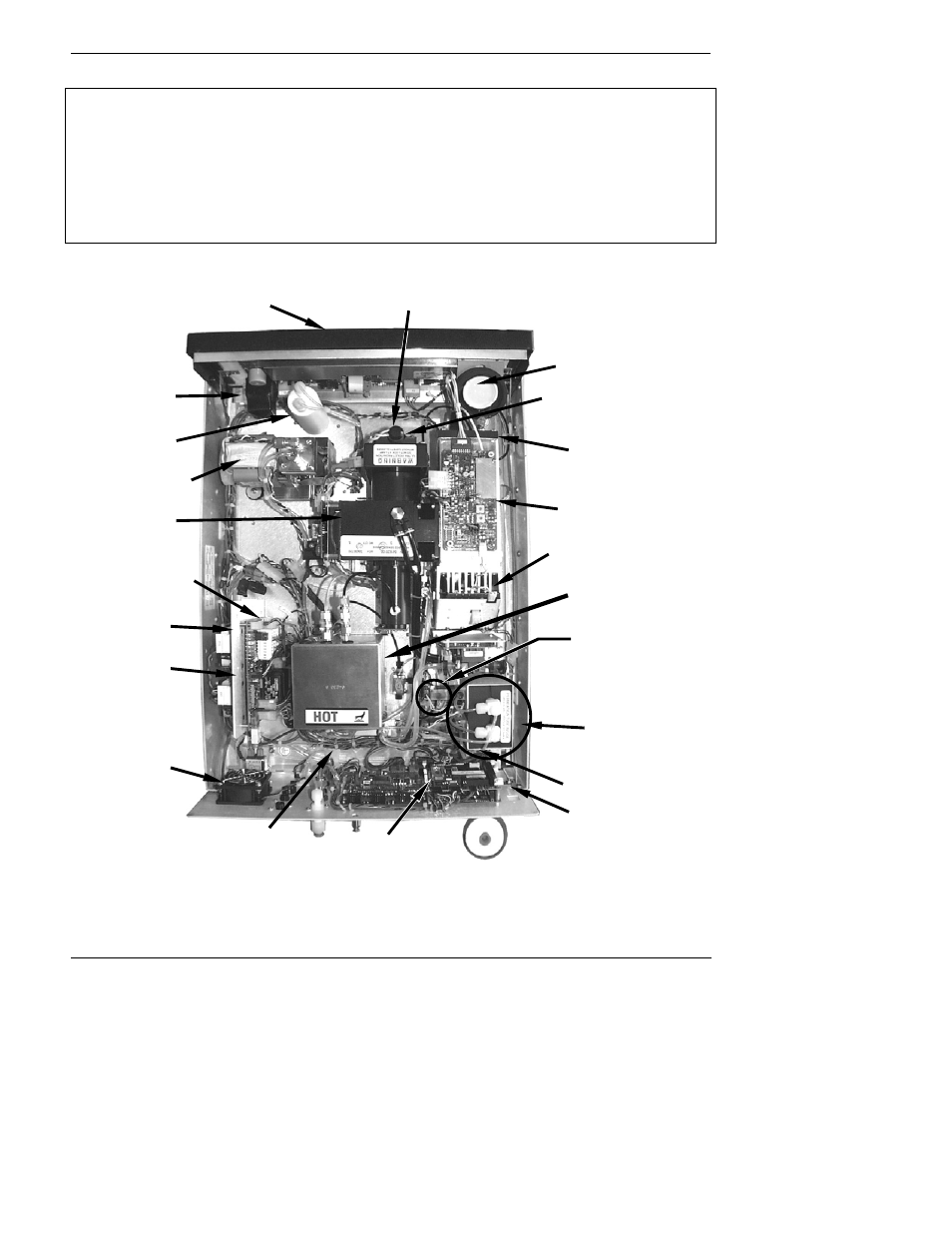

Figure 3-9: M6200E Layout (with IZS)
