6.12.4.3. Activating Hessen Protocol

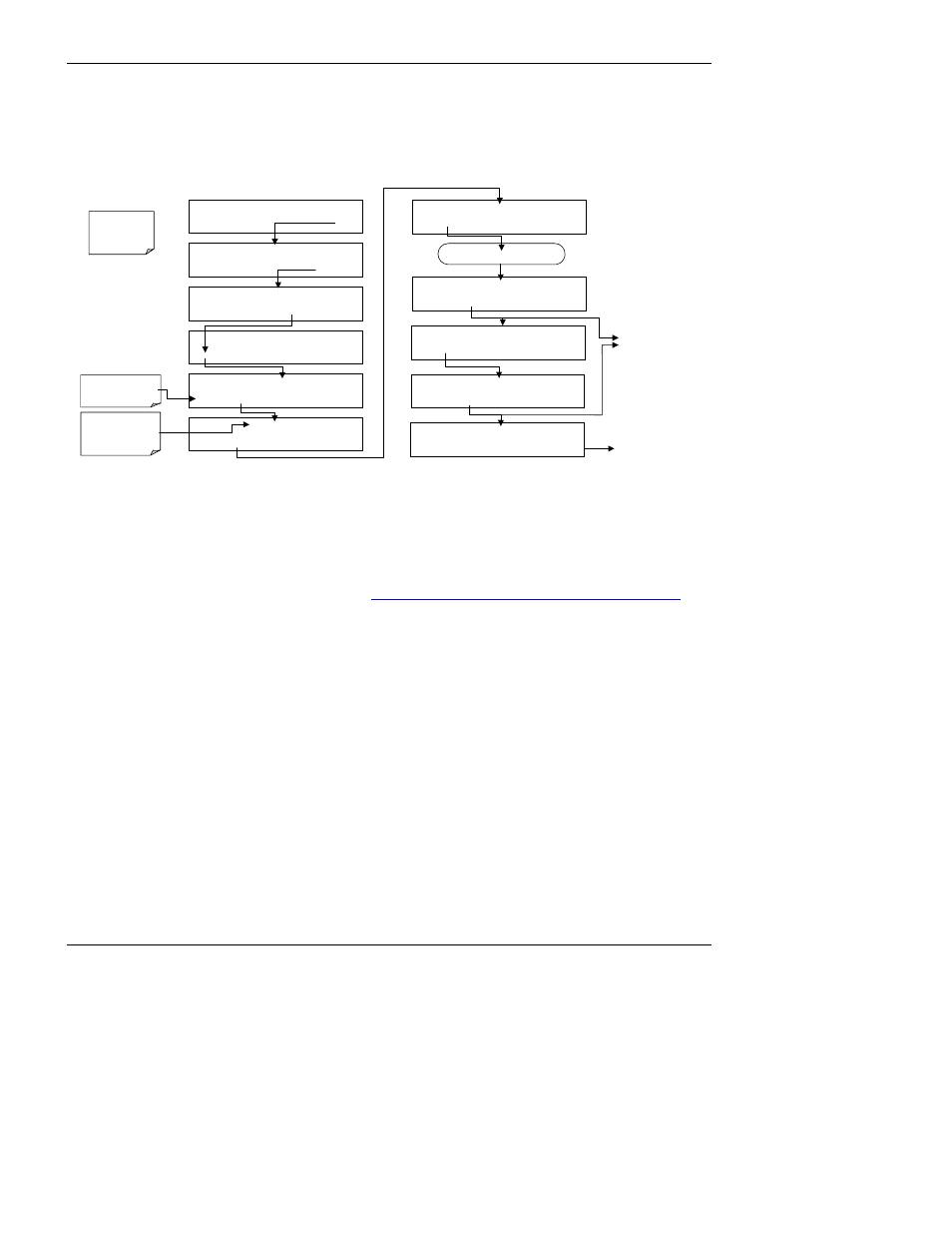

The first step in configuring the M6200E to operate over a Hessen protocol network is to activate
the Hessen mode for COMM ports and configure the communication parameters for the port(s)
appropriately. Press:
SAMPLE ENTER SETUP PASS : 818
8 1 8 ENTR EXIT
SETUP X.X PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK MORE EXIT
SAMPLE RANGE = 500.0 PPB H2S =XXX.X
< TST TST > CAL SETUP
SETUP X.X SECONDARY SETUP MENU
COMM VARS DIAG ALRM EXIT
SETUP X.X COMMUNICATIONS MENU
ID COM1 COM2 EXIT
SETUP X.X COM1 MODE:0
SET> EDIT EXIT
Continue pressing next until …
Select which COMM
port to configure
SETUP X.X COM1 QUIET MODE: OFF
NEXT OFF ENTR EXIT
SETUP X.X COM1 HESSEN PROTOCOL : ON
PREV NEXT ON ENTR EXIT
SETUP X.X COM1 HESSEN PROTOCOL : OFF
PREV NEXT OFF ENTR EXIT
ENTR key accepts the
new settings
EXIT key ignores the
new settings
The sum of the mode
IDs of the selected
modes is displayed
here
SETUP X.X COM1 E,7,1 MODE: ON
PREV NEXT ON ENTR EXIT
SETUP X.X COM1 E,7,1 MODE: OFF
PREV NEXT OFF ENTR EXIT
Toggle OFF/ON keys
to change
activate/deactivate
selected mode.
Repeat the
entire process to
set up the
COM2 port
6.12.4.4. Selecting a Hessen Protocol Type
Currently there are two version of Hessen Protocol in use. The original implementation, referred to
as TYPE 1, and a more recently released version, TYPE 2 that more flexibility when operating with
instruments that can measure more than one type of gas. For more specific information about the
difference between TYPE 1and TYPE 2 download the Manual Addendum for Hessen Protocol from
the Teledyne Analytical Instruments’ web site:
http://www.teledyne-ai.com/manuals/index.asp .
To select a Hessen Protocol Type press:
