Calibration Procedures Model 6200E Instruction Manual
172 M6200E Rev: A1
the contact is opened. At this point, the new calibration values will be recorded before the
instrument returns to SAMPLE mode.
If the AutoCal attribute CALIBRATE is disabled, the instrument will return to SAMPLE mode,
leaving the instrument’s internal calibration variables unchanged.
7.8. Manual Calibration in Multigas Measurement Mode
If the analyzer is being operated in multigas measurement mode, the methods and setups for
performing calibrations are identical to those defined in Sections 7.2 and 7.4 with the two
exceptions
• Some provision must be made for supplying both types of calibrated span gas to the
analyzer. A typical setup for this might be:
No Valve Options Installed
MODEL
6200E
Sample
Zero Air
Exhaust
Span
MODEL 701
Zero Air
Generator
VENT
Calibrated H 2 S GAS
(At high concentration)
Source of
SAMPLE Gas
Removed
during
Calibration
MODEL 700 Gas
Dilution
Calibrator
(with Ozone Bench
Option)
Calibrated SO 2 GAS
(At high concentration)

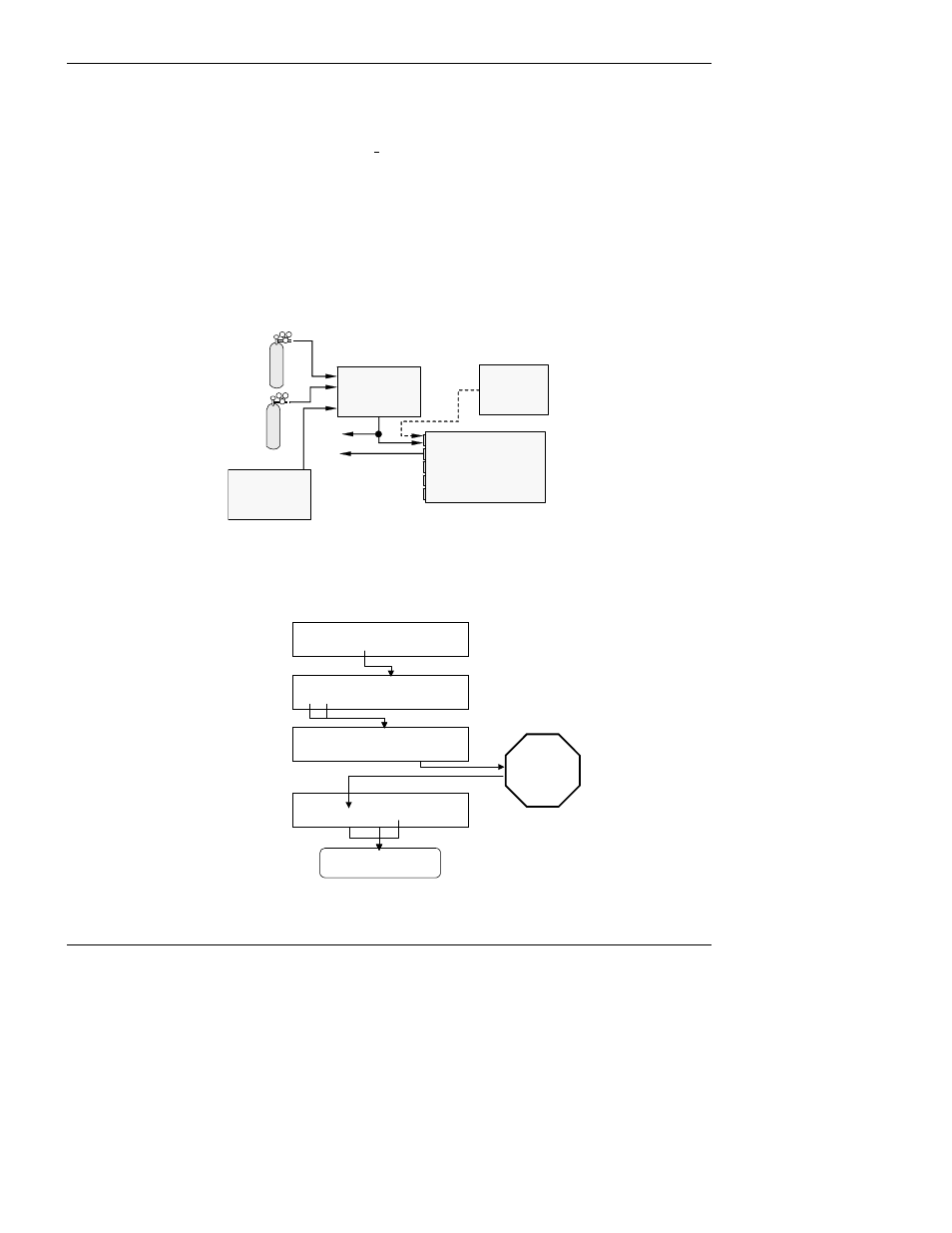

Figure 7-4: Typical Setup for Manual Calibration of M6200E in Multigas Measurement
Mode
• The analyzer will ask to have the GAS TYPE specified at the beginning of the process as
follows:
Continue Calibration as per
Standard Procedure
SAMPLE H2S STB =XXX.X PPB H2S =XXX.X
< TST TST > CAL CALZ CALS SETUP
ZERO CAL M H2S STB =XXX.X PPB H2S =XXX.X
< TST TST > ZERO SPAN CONC EXIT
SAMPLE GAS TO CAL: H2S
SO2 H2S ENTR SETUP
SAMPLE GAS TO CAL: SO2
LOW HIGH ENTR SETUP Wait until H2S
STB falls below
0.5 ppb. This may
take several
minutes.
Once this selection is made, the calibration procedure continues as previously described. The other
gas may be calibrated by starting over from the main SAMPLE display.
