Storage Essentials 5.00.01 User Guide 283
• Microsoft Windows 2003 hosts with Service Pack 1 and IBM TotalStorage DS6800 arrays do
not stitch properly as a result of the Subsystem Device Driver (SDD) appearing on the same disk.
The multipathing page returns the Windows SDD path as something similar to
"600507630efe01a80000000000001104:c0t0d0p3". This makes it difficult to match it up to
your SDD path names.
The following figure displays how the software detects multipathing for a server running VERITAS
Volume Manager. "MP" is displayed on the path of the redundant volumes.

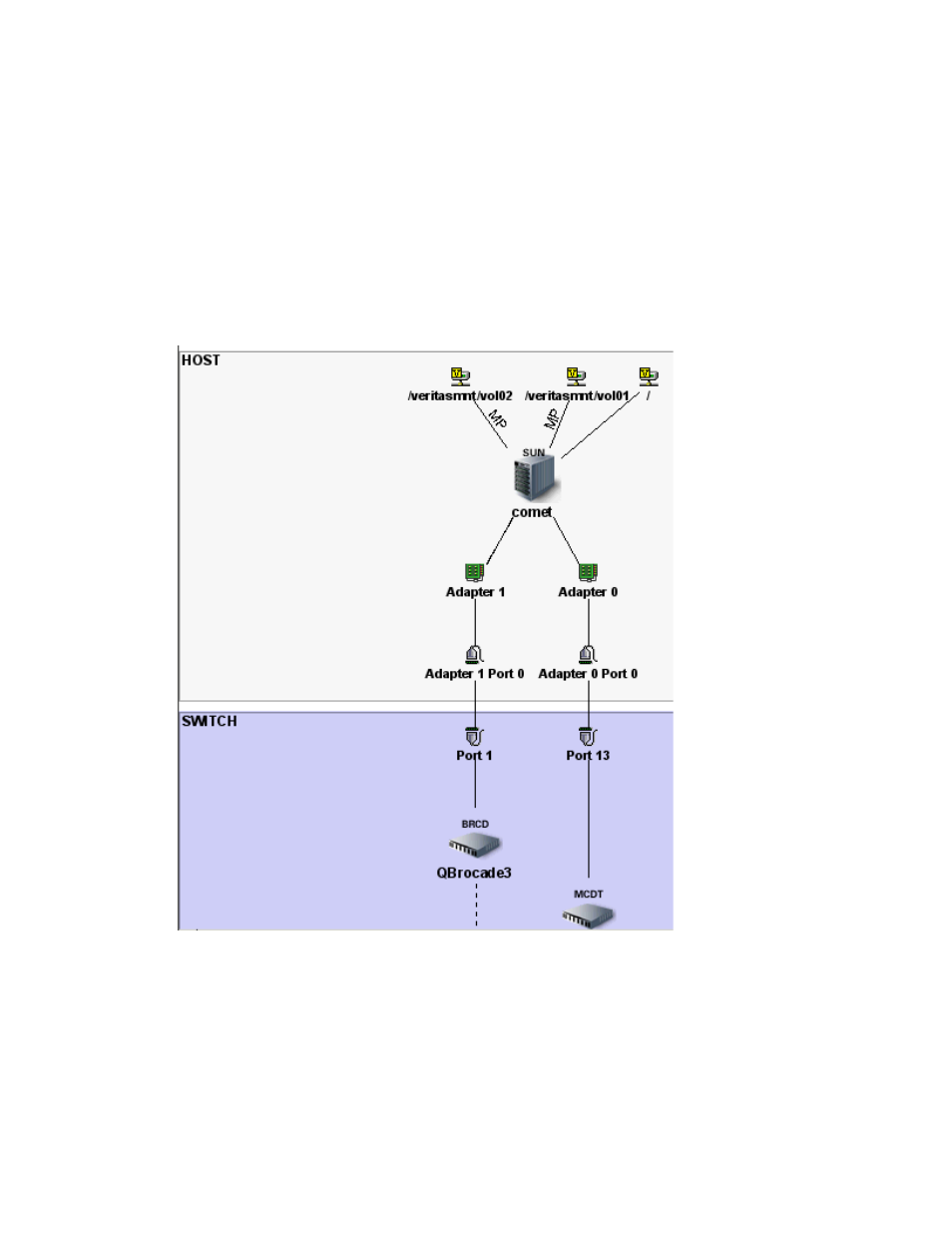

Figure 46 Multipathing Displayed in the Topology
The topology extends the length of the screen. The second portion of the topology is provided by the
following figure.
