3.2 Initial Setting
84

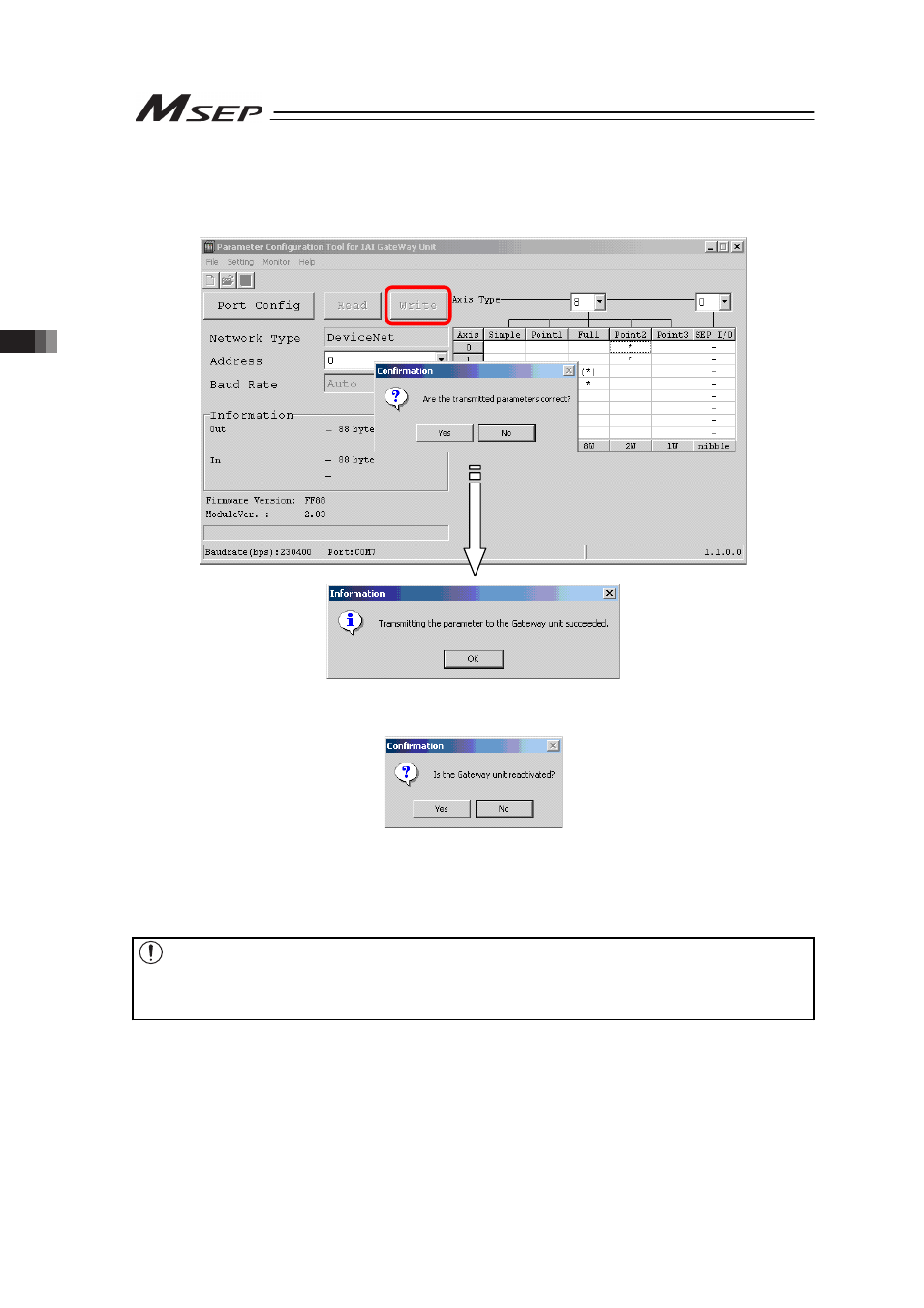

[Step 17] Write the edited operation mode setting parameters to MSEP. Click on the “Write” button
shown below and a confirmation window pops up. Click on the “Yes” button.
If the writing is finished in normal condition, writing complete window appears. Click OK.
[Step 18] A confirmation window for Gateway Unit reboot opens. Click “Yes” to accept the reboot.
[Step 19] After rebooting, a confirmation window for parameter reading appears for confirmation of
the written contents. Click “Yes” to accept the reading.
Once the reading process is complete, confirm that the written contents are reflected.
If not written properly, do the process again from Step 1.
Reference:
The settings are conducted in the special parameters for the process of communication error,
change in pressing method for Fieldbus Type and speed unit change for Direct Indication Mode.
Refer to 3.9 About Gateway Parameter Setting Tool for the details.
