3.9
About Gateway Parameter Setting
Tool
179

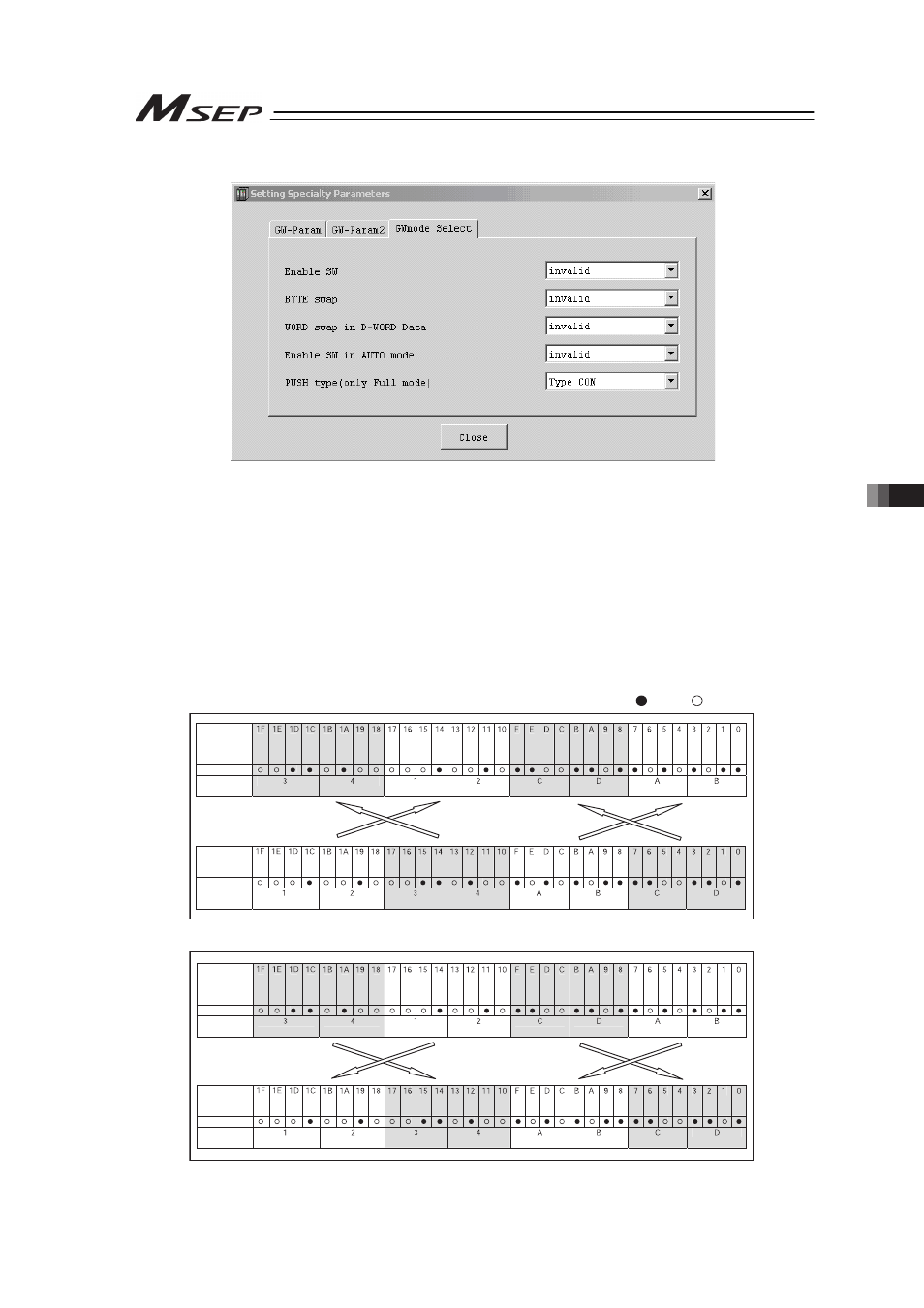

3) GWmode Select
• Enable SW : Select whether to activate/inactivate the enable switch in TP.
• BYTE swap : Set the byte swap. [Refer to 3)-1 in this section.]
• WORD swap in D-WORD Data : Set whether to swap the W-word sized data with word size
[Refer to 3)-2 in this section.]
• Enable SW in AUTO mode : Select whether to activate/inactivate the enable switch in
AUTO mode
• PUSH type (only Full mode) : Select the pressing method from SEP and CON methods
3)-1 BYTE swap : Swap the upper and lower in the sent and received data in byte unit.
Set this considering the connected host system if necessary.
MSEP
Input
register
MSEP
Output
register
= ON, = OFF
Hexadecimal
data
Hexadecimal
data
Hexadecimal
data
Hexadecimal
data
ON/OFF
ON/OFF
ON/OFF
ON/OFF
PLC:
RWwnn
PLC:
RWrnn
