3.8 I/O Signal Controls and Function
172

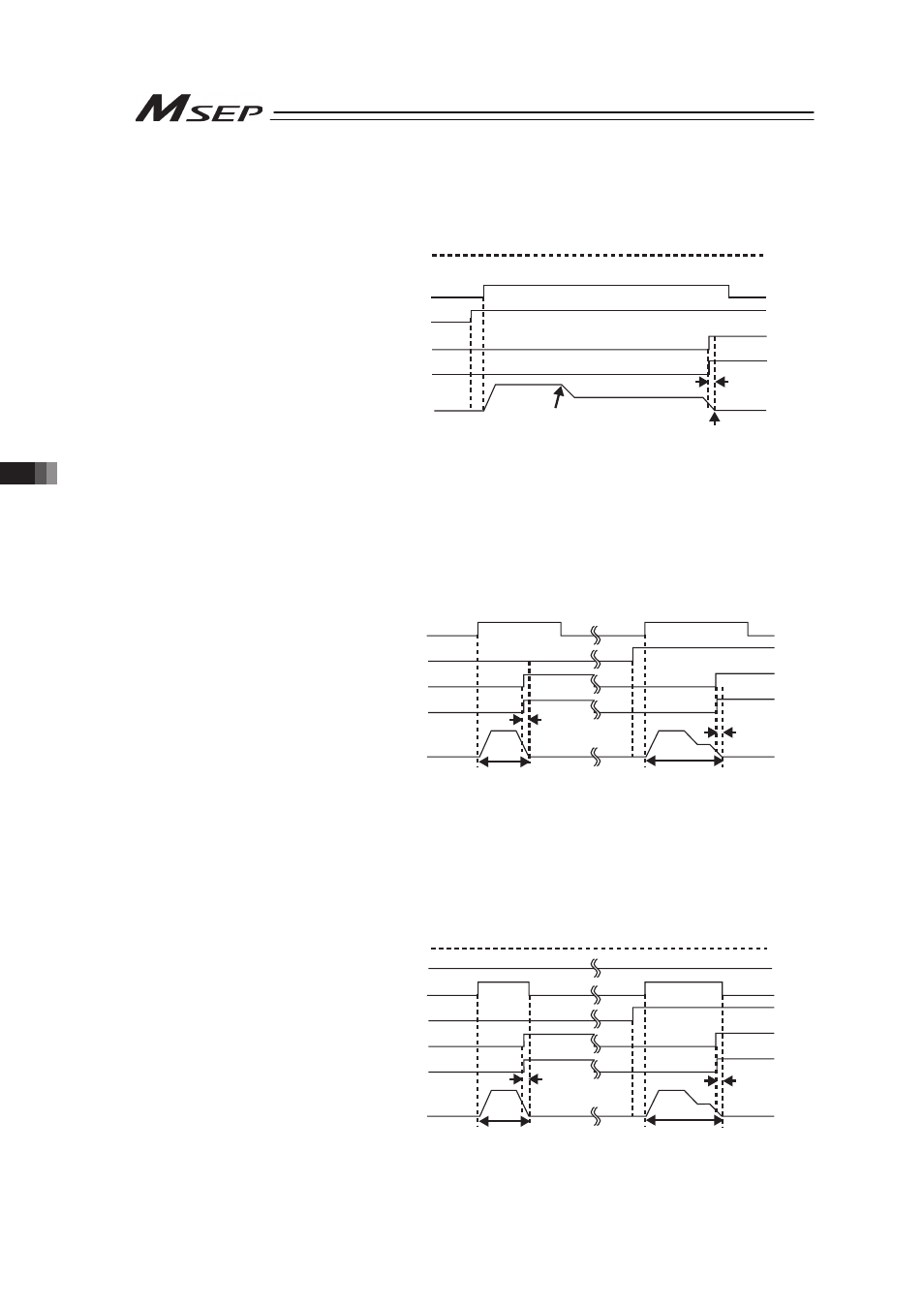

(2) Double Solenoid System:
With the movement speed change signal (SPDC) turned ON, the actuator is operated with
the changed speed from the position set as the change position in the position data. Shown
below is an example for the forward end position movement.
Forward end point positioning completion output (PE1)
Forward end position detection output (LS1)
Forward end movement signal (ST1)
Backward end movement signal (ST0)
Movement speed change signal (SPDC)
Actuator operation
Position set in change position
Forward end
Positioning width
(Parameter No.1)
[11] Target Position Change = Operation Timing for Operation Patterns 2
(1) Single Solenoid System:
With the target position change signal (CN1) turned ON, the operation is made with the
setting of Forward End 2 in the position data when moving towards the forward end. The
actuator operates with the setting of Backward End 2 in the position data when moving
towards the backward end. Shown below is an example for the forward end position
movement.
Target position change signal (CN1)
Movement signal (ST0)
Forward end point positioning completion output (PE1)
Forward end position detection output (LS1)
Actuator operation
Setting of Forward End 1 Setting of Forward End 2
Positioning width
(Parameter No.1)
Positioning width
(Parameter No.1)
(2) Double Solenoid System:
With the target position change signal (CN1) turned ON, the operation is made with the
setting of Forward End 2 in the position data when moving towards the forward end. The
actuator operates with the setting of Backward End 2 in the position data when moving
towards the backward end. Shown below is an example for the forward end position
movement.
Target position change signal (CN1)
Forward end movement signal (ST1)
Backward end movement signal (ST0)
Forward end point positioning completion output (PE1)
Forward end position detection output (LS1)
Actuator operation
Positioning width
(Parameter No.1) Positioning width
(Parameter No.1)
Setting of Forward End 1 Setting of Forward End 2
