3.2 Initial Setting
80

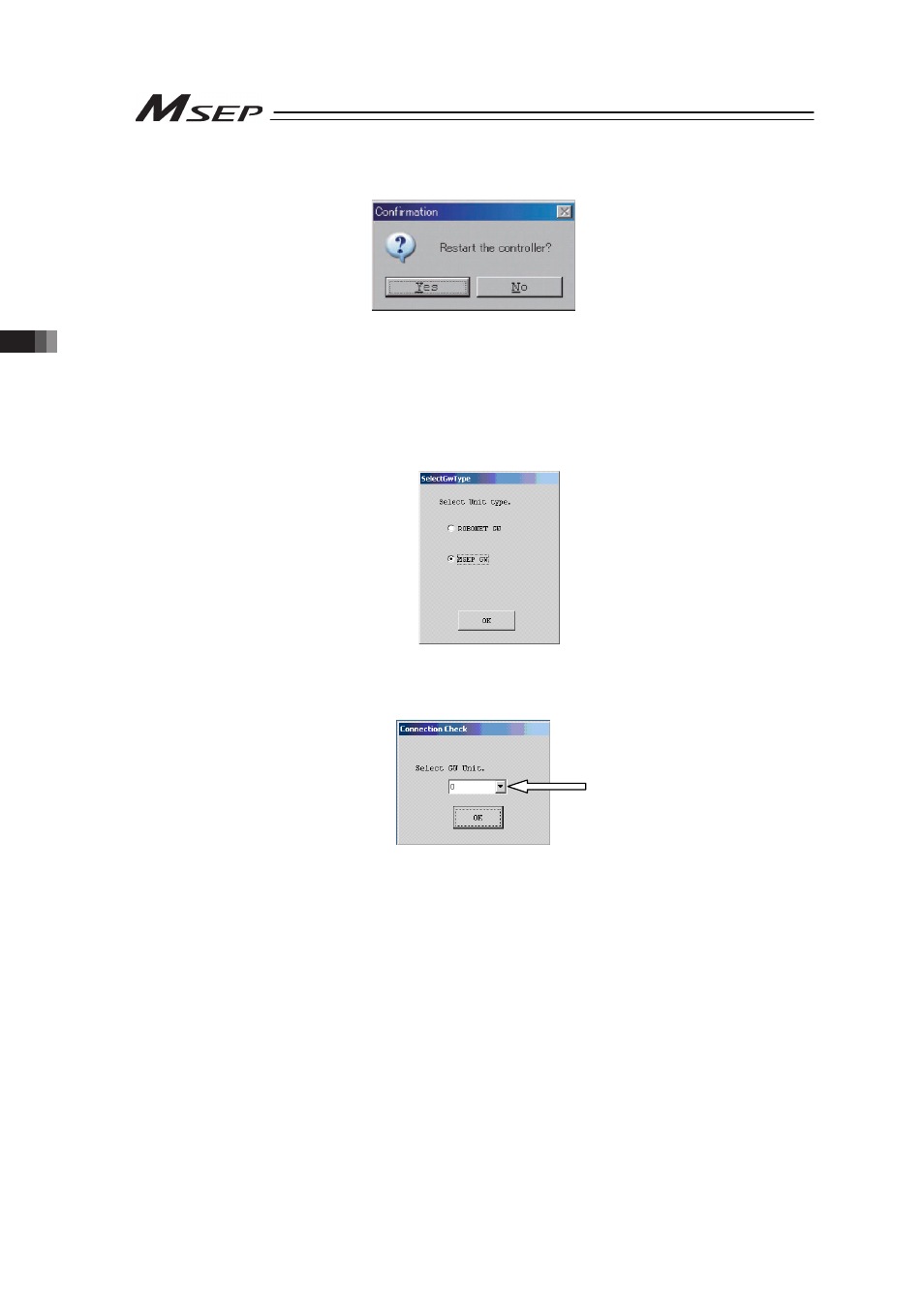

[Step 6] The confirmation window for controller reboot opens. Click “Yes”.
[Step 7] The initial setting needs to be held on all the MSEP composition axes. In the case that
multiple axes are connected, repeat the Steps 2 to 6.
Once the setting on all the connected axes is finished, close RC PC Software.
We now move on the Gateway operation mode setting.
[Step 8] Start up Gateway Parameter Setting Tool.
The following window appears. Select MSEP GW and click OK.
[Step 9] The connected MSEP (unit number) becomes available to select. Select the unit number to
be connected and click on the OK button.
