3.1 Basic Operation
74

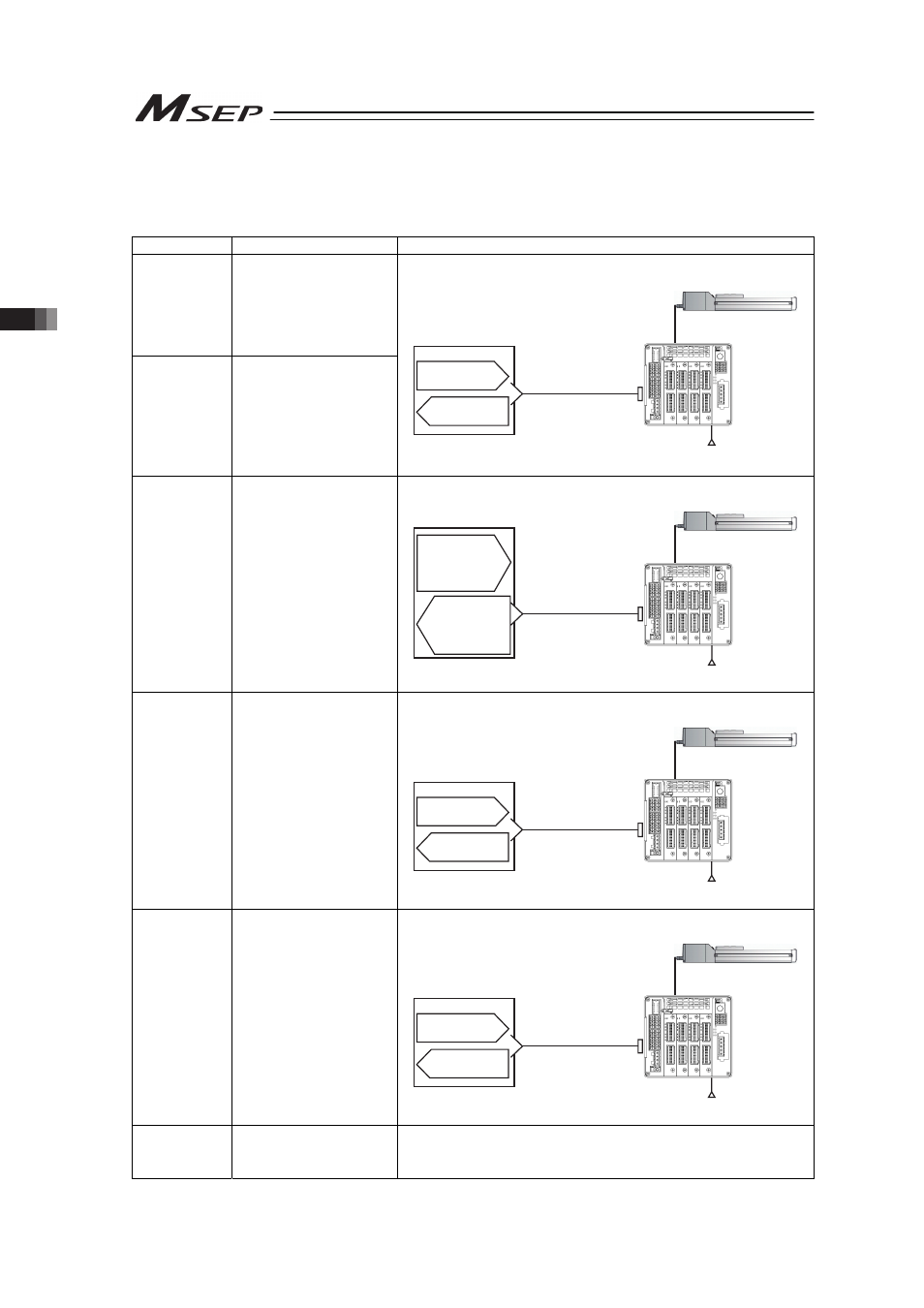

ƔOperation Mode Available in Fieldbus Type
6 types of operation modes are available to select from.
Explained below is the outline.
Operation Pattern Description Overview
Positioner 1 Mode In Positioner 1 Mode, 256
points of position data can be
registered at the maximum
and is able to stop at the
registered positions.
Monitoring of the current
position is also available.
Simple Direct
Mode
In Simple Direct Mode, the
target position can be indicated
directly by inputting a value.
Monitoring of the current
position is also available.
Communication with Fieldbus
Dedicated Cable
+24V
Target Position
Target Position No.
Control Signal
PLC
Current Position
Completed Position No.
Status Signal
Electric Cylinder
Direct Numeric
Specification
Mode
The target position, speed
acceleration/deceleration
and pressing current limit can
be indicated with inputting a
number. Monitoring of not
only the current position, but
also the current speed and
indicated current are
available.
Communication with Fieldbus
+24V
Target Position
Positioning Width
Speed
Acceleration/Deceleration
Push %
Control Signal
PLC
Current Position
Current Value
(Command Value)
Current Speed
(Command Value)
Alarm Code
Status Signal
Dedicated Cable
Electric Cylinder
Positioner 2 Mode This is the operation mode of
the position data of 256
points at maximum set in the
position table. The
monitoring of the current
position is not available
This mode is that the
transferred data is reduced
from Positioner 1 Mode.
Communication with Fieldbus
+24V
Target Position No.
Control Signal
PLC
Completed Position No.
Status Signal
Dedicated Cable
Electric Cylinder
Positioner 3 Mode This is the operation mode of
the position data of 256
points at maximum set in the
position table. The
monitoring of the current
position is not available.
This is the mode to control
with the minimized number of
signals to perform the
positioning operation by
reducing the amount of sent
and received data from
Positioner 2 Mode.
Communication with Fieldbus
+24V
Target Position No.
Control Signal
PLC
Completed Position No.
Status Signal
Dedicated Cable
Electric Cylinder
SEP I/O The same control as PIO is
available.
Refer to PIO type
