3.9
About Gateway Parameter Setting
Tool
181

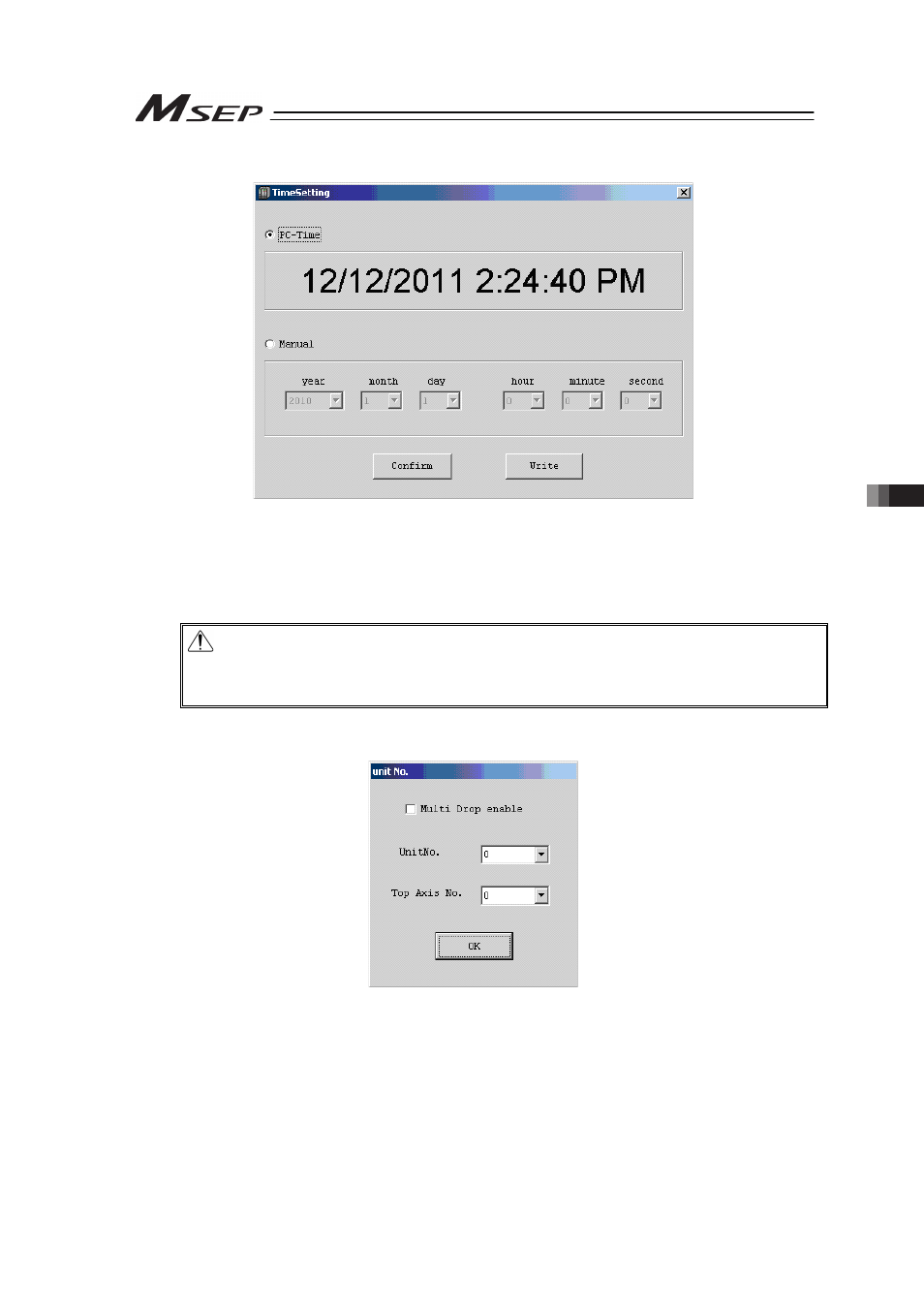

4) TimeSetting
By selecting Time on PC, the current time on the PC is acquired and set to MSEP. If Set
Manually is selected, desired time set in the clock edit in the window can be set in MSEP.
Click “Write”, and the time setting is transferred to MSEP and the data is written in.
Clicking on the Confirm button and the clock data currently retained in MSEP can be read
and displayed.
Caution: The clock (calendar) function in MSEP can be retained for approximately 10
days (reference) after the power to MSEP is turned OFF.
Once the clock data is lost, the time passed since the power is turned back ON
as 2000/1/1 0:00:00 is displayed as the current time.
5) Unit Number Setting
This setting is to be conducted when 2 units of MSEP are to be connected to the PC software
at the same time.
(It is not necessary to have this setting done for 1 unit of MSEP.)
• Multi Drop enable : Tick in the box if the setting in this window is to be activated.
• UnitNo. : Set the unit number of MSEP
• Top Axis No. : Set the top axis number of MSEP composition axes
