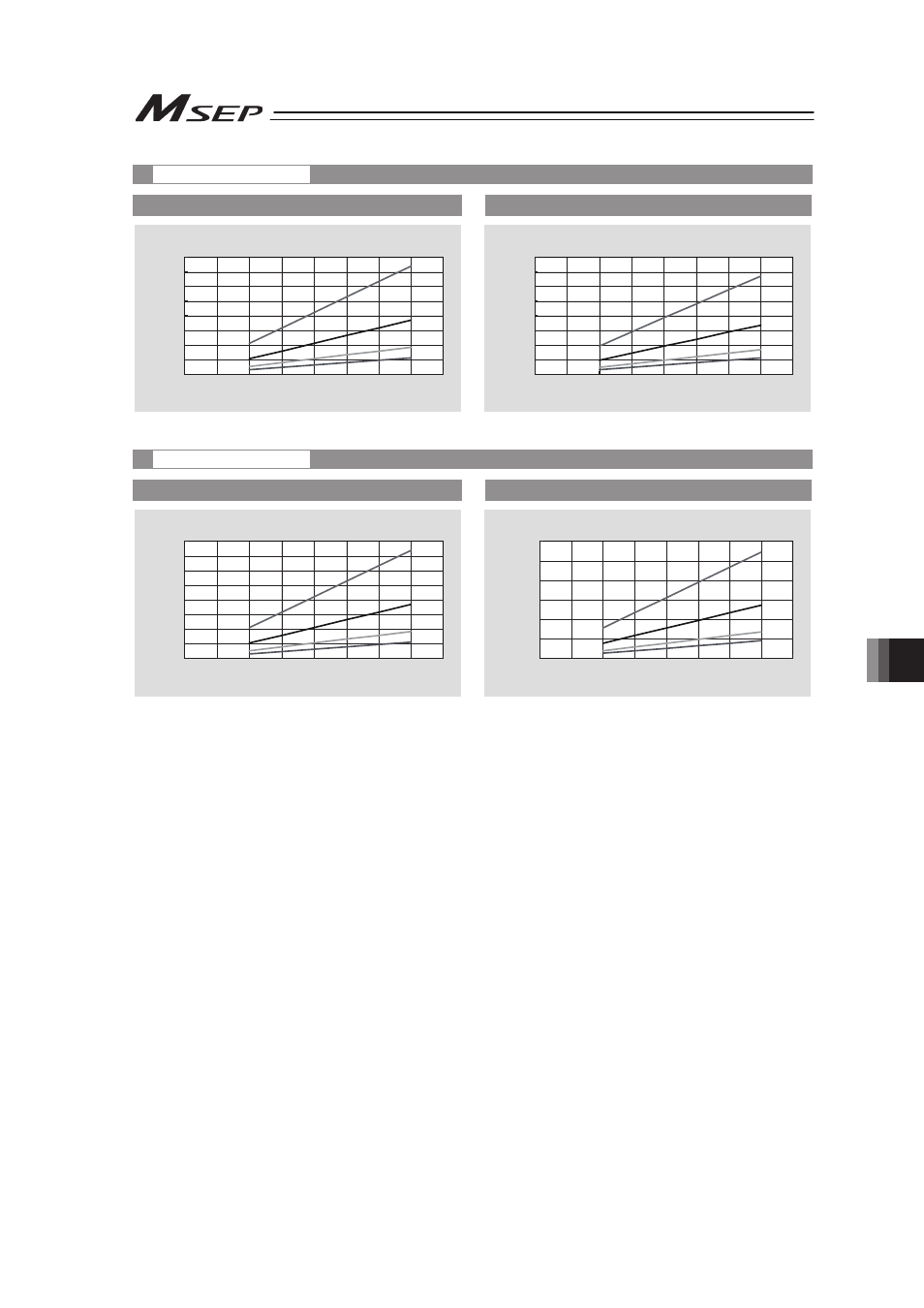

IAI America MSEP - Manual (Page 289)

Chapter 7
Appendix
281
RCP4 Series Slider Type
400
350
300
250
200
150
100
50
0
0 10 20 30 40 50 60 70 80
Lead 3
Lead 6
Lead 12
Lead 20
400
350
300
250
200
150
100
50
0
0 10 20 30 40 50 60 70 80
Lead 3
Lead 6
Lead 12
Lead 20
SA5C/SA6C Type SA7C Type
RA5C Type RA6C Type
800
700
600
500
400
300
200
100
0
0 10 20 30 40 50 60 70 80
Lead 4
Lead 8
Lead 16
Lead 24
1200
1000
800
600
400
200
0
0 10 20 30 40 50 60 70 80
Lead 4
Lead 8
Lead 16
Lead 24
Current-limiting value (ratio, %)
Push force (N)
Current-limiting value (ratio, %)
Push force (N)
Current-limiting value (ratio, %)
Push force (N)
Current-limiting value (ratio, %)
Push force (N)
RCP4 Series Rod Type
