Chapter 2 Wiring

53

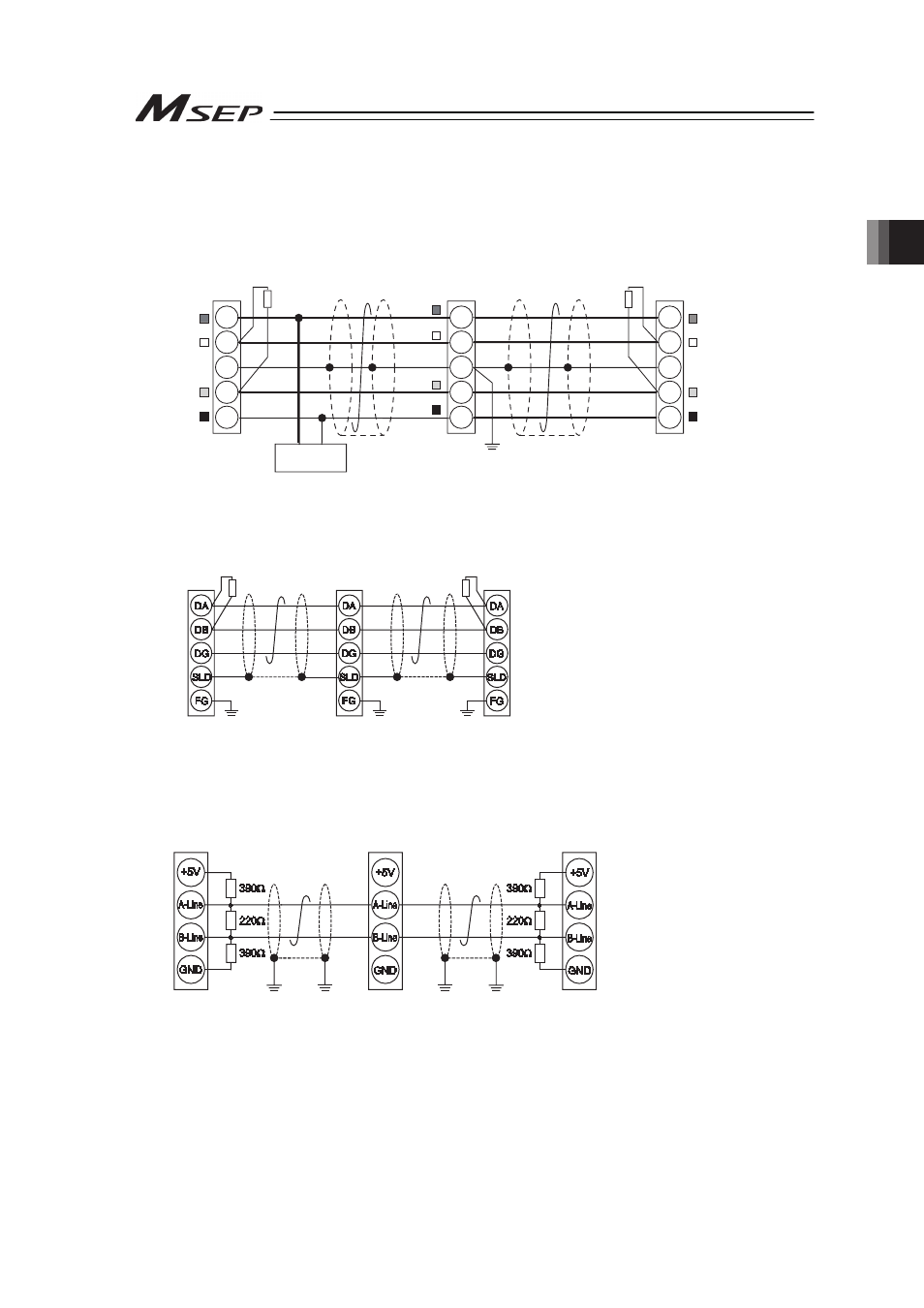

[7] Wiring Layout for Fieldbus (for Fieldbus Type)

Follow the instruction manual of the master unit for each Fieldbus and the constructing PLC for

the details of how to connect the cables.

1) DeviceNet Type

Slave Devices

MSEP-DeviceNet Type

V+

Drain

(Shield)

CAN_H

CAN_L

V-

RD

WT

BL

BK

RD

WT

BL

BK

V+

Drain

(Shield)

CAN_H

CAN_L

Class D grounding

(Formerly Class-III grounding: Grounding resistance at 100Ω or less)

V+

Drain

(Shield)

CAN_H

CAN_L

V-

RD

WT

BL

BK

Communication power needs to be

supplied by an external device.

Terminal Resistance is required

to be mounted on the terminal.

V-

Terminal Resistance

121Ω

Master Unit

Terminal Resistance

121Ω

24V

Power Supply

2) CC-Link Type

Slave Devices

MSEP-

CC-Link

Type

SLD and FG are internally connected.

Terminal Resistance is required

to be mounted on the terminal.

The terminal resistor differs depending on the type

of the dedicated cable for CC-Link.

• Cable FANC-SBH···130Ω1/2W

(High Performance Cable

dedicated for CC-Link)

• Cable FANC-SB······110Ω1/2W

(CC-Link Dedicated Cable)

Master Unit

Terminal

Resistance

Terminal

Resistance

Class D grounding

(Formerly Class-III grounding:

Grounding resistance at 100Ω or less)

3) PROFIBUS-DP Type

MSEP-PROFIBUS Type

Slave Devices

Master Unit

Terminal Resistance is required

to be mounted on the terminal.

Class D grounding

(Formerly Class-III grounding: Grounding resistance at 100Ω or less)
