Chapter 2 Wiring

56

2.4 Wiring Method

2.4.1

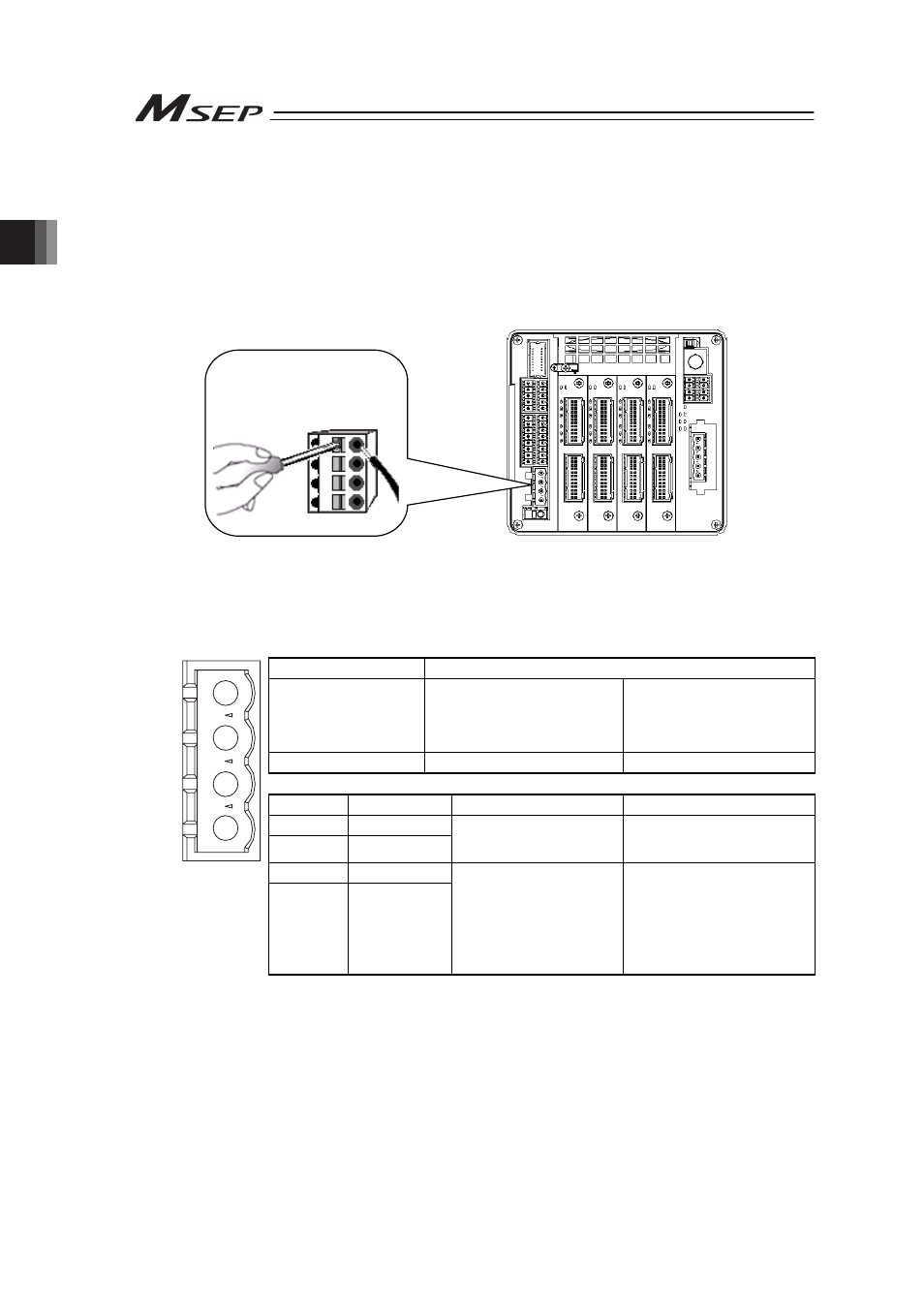

Connection to Power Input Connector

The wire of the power supply is to be connected to the enclosed connector (plug).

Strip the sheath of the applicable wires for 10mm and insert them to the connector. Push a

protrusion beside the cable inlet with a small slotted screwdriver to open the inlet. Once the

cable is inserted, take the slotted screwdriver OFF the protrusion to fix the cable to the terminal.

Connector Name

Power Line Input Connector

Cable Side

FKC2.5HC/4-ST-5.08

Enclosed in standard

package

Manufactured by

PHOENIX CONTACT

Controller Side

MSTBA2.5HC/4-G-5.08

Pin No. Signal Name

Description

Applicable cable diameter

1

0V

1

2

3

4

2

CP+24V

Power Input for Control

(24V DC ±10%)

KIV0.3mm

2

(AWG22)

3

0V

Front view of

connector on

controller side

4

MP+24V

Power Input for Motor

Drive

(24V DC ±10%)

KIV2.5 to 0.5mm

2

(AWG12 to 20)

Select the cable thickness

allowable for the current

figured out in the power

capacity.

(Note) If supplying power with using a 24V DC, having it turned ON/OFF, keep the 0V

connected and have the +24V supplied/cut (cut one side only).

Accessory

Connector

(Plug)
