3.9
About Gateway Parameter Setting
Tool
177

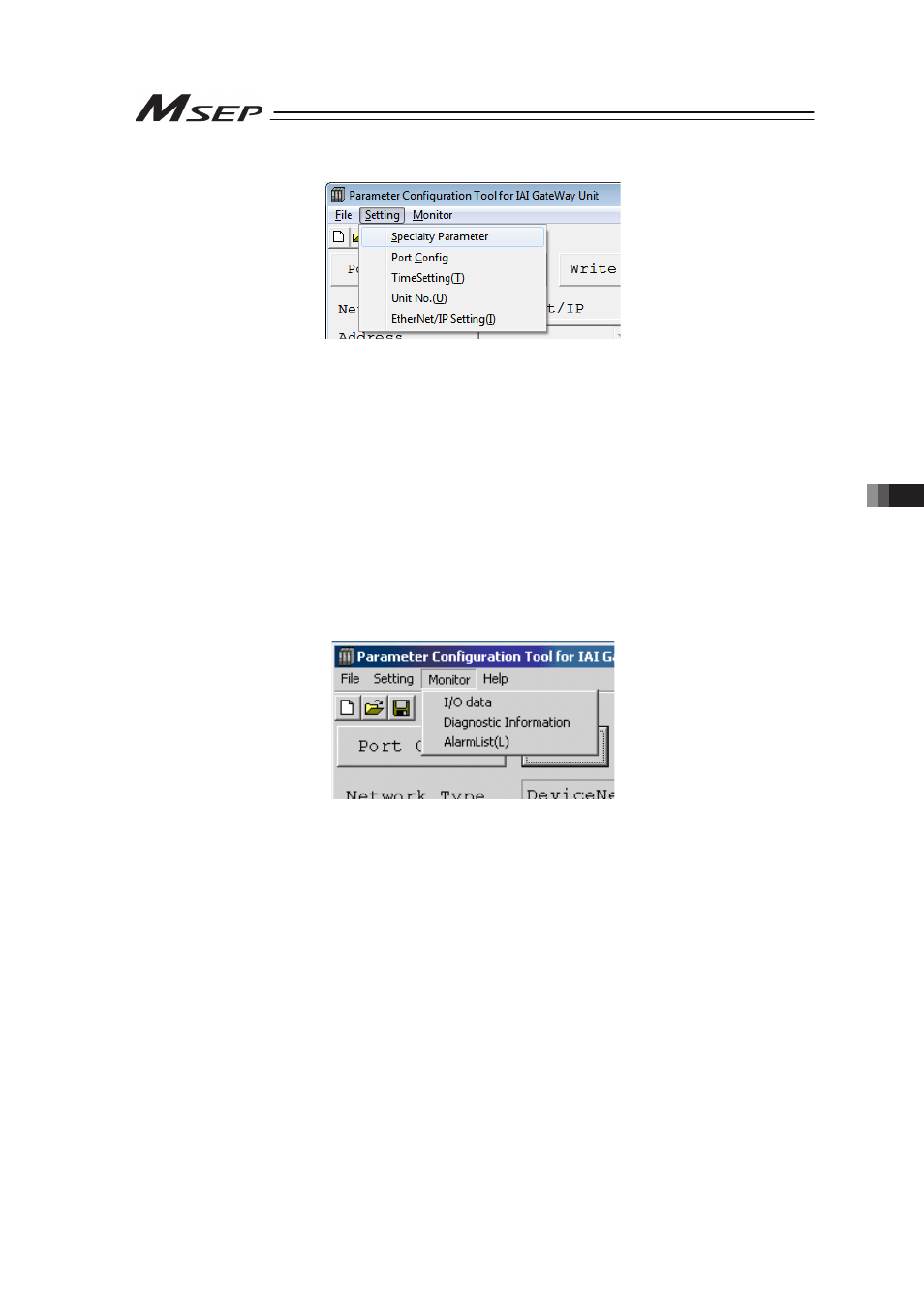

2) Setting Menu
Click on the “Setting” menu on the top left corner in the main window and the setting menu
list pops up.
• Specialty Parameter : Set the parameters related to the process of Gateway area in MSEP.
[Refer to 3.9.3 1), 2) and 3) GW Parameter */GW Mode Select.]
• Port Config : Set the communication speed between the tool and PC and COM
port number.
• TimeSetting(T) : Set the clock retained in MSEP.
[Refer to 3.9.3 4) Time Setting.]
• Unit No.(U) : Set the unit number of MSEP and top axis number in that unit.
[Refer to 3.9.3 5) Unit No..]
• EherNet/IP Setting : For EtherNet/IP type, this menu is displayed. Set IP address etc.
[Refer to 3.9.3 6) EherNet/IP Setting.]
3) Monitor Menu
Click on the “Monitor” menu on the top left corner in the main window and the monitor menu
list pops up.
(Note) “Monitor” cannot be selected before reading a parameter.
• I/O data : Show the details of the host PLC and MSEP data.
[Refer to 3.9.3 6) I/O Data]
• Diagnostic Information : Show the number of ERRT and ERRC occurrence, emergency stops
and scan time.
[Refer to 3.9.3 7) Diagnostic Information]
• AlarmList(L) : Read and show the alarm list retained in MSEP.
[Refer to 3.9.3 8) AlarmList(L)]
