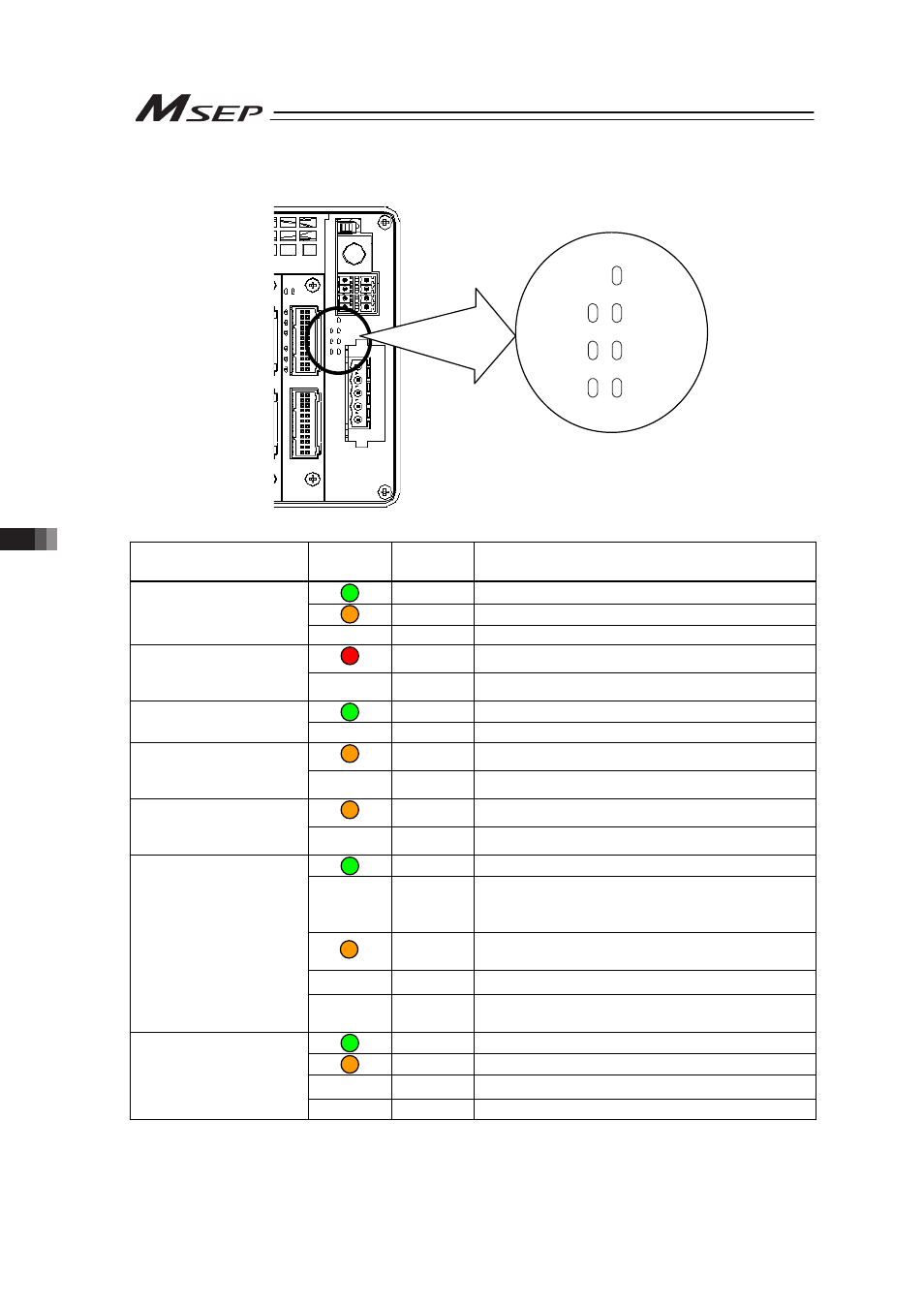

3.10 Status LED
190
5) For Fieldbus Type CompoNet
{
: Illuminating, ×: OFF, ڏ: Flashing
Symbol
Lamp
Condition
Color
Description
Green Ready
Orange Alarm generated
SYS
(System status)
×
–
Power is OFF or in initializing
Red
Alarm generated
EMG
(Emergency stop
status)
×
–
Normal
Green AUTO Mode
MODE
(AUTO/MANU status)
×
–
MANU Mode
Orange Controller internal communication error
T ERR
(Controller internal
communication status)
×
–
Normal
Orange Fieldbus communication error
C ERR
(Fieldbus
communication status)
×
–
Normal
Green Online (Normal)
ڏ
Green
Online (Even though the network is established
normally, awaiting for being identified as MSEP
by master)
Orange Node address duplication error, slave address
wrongly established
ڏ
Orange No response returned from another slave device
NS
×
–
Power is OFF, under reset operation, under
initializing process
Green Communication in normal condition
Orange Malfunction of hardware
ڏ
Orange EEPROM reading failed in initializing process
MS
×
–
Power is not ON, under reset operation
