3.9
About Gateway Parameter Setting
Tool
175
3.9 About Gateway Parameter Setting Tool
This tool is necessary for the initial setting process such as MSEP operation mode select.
Shown below is how to use the tool.
3.9.1 Startup of Tool

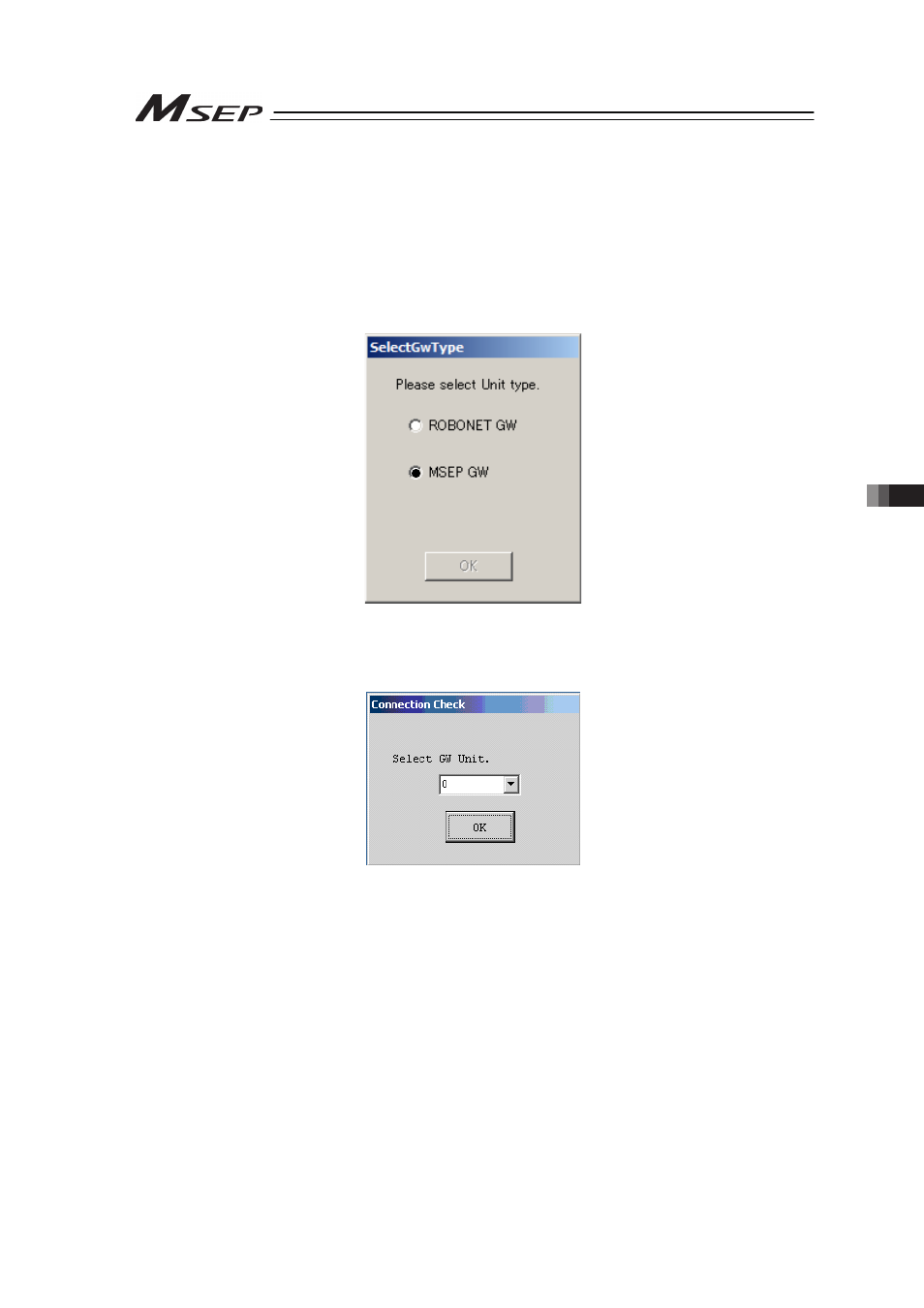

1) Boot the Gateway Parameter Setting Tool after the power to MSEP is turned ON, and the
window shown below appears. Select “MSEP GW” if MSEP is connected and click OK.
2) Once MSEP is detected the detected unit numbers become available to select. Select the
unit number to be connected and click the “OK” button.
