3.8 I/O Signal Controls and Function
167
[6] Home Return
Home-return operation is performed when turning the movement signal 1 (ST0) on if the home
return has not yet done since the power is turned ON.
1) If the operation pattern is “Point-to-Point Movement (Single Solenoid)”
If the home return is not conducted on the operation panel yet, the first movement signal
(ST0) will bring the actuator to the home position. After home return operation, it moves to
the forward position and stops (for positioning).

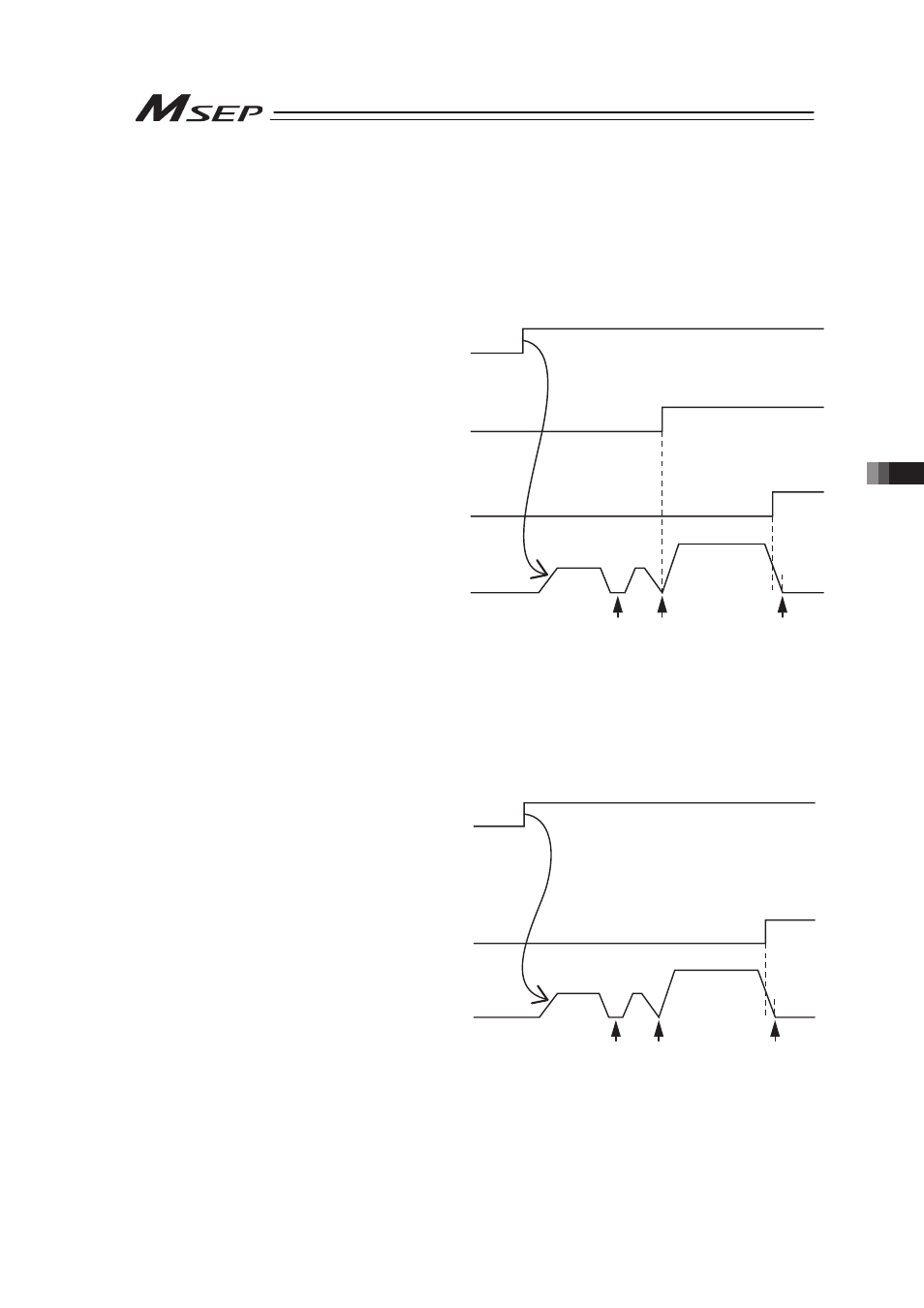

Movement signal (ST0)
Home return completion (HEND)
Forward end position detecting output (LS0)
Actuator operation
Reverse at
Mechanical End
Home Position Forward End
Position
2) If the operation pattern is “Point-to-Point Movement (Double Solenoid) and 3-Point
Movement”
After returning to home position, the actuator stops at the backward position (for positioning)
(Home-return complete).
Movement signal to the forward end (ST1) is invalid till the home-return operation is
complete.
Movement signal (ST0)
Backward end position detection output (LS0)
Actuator operation
Reverse at
Mechanical End
Home Position Backward end
position
