Chapter 1 Specifications Check

34

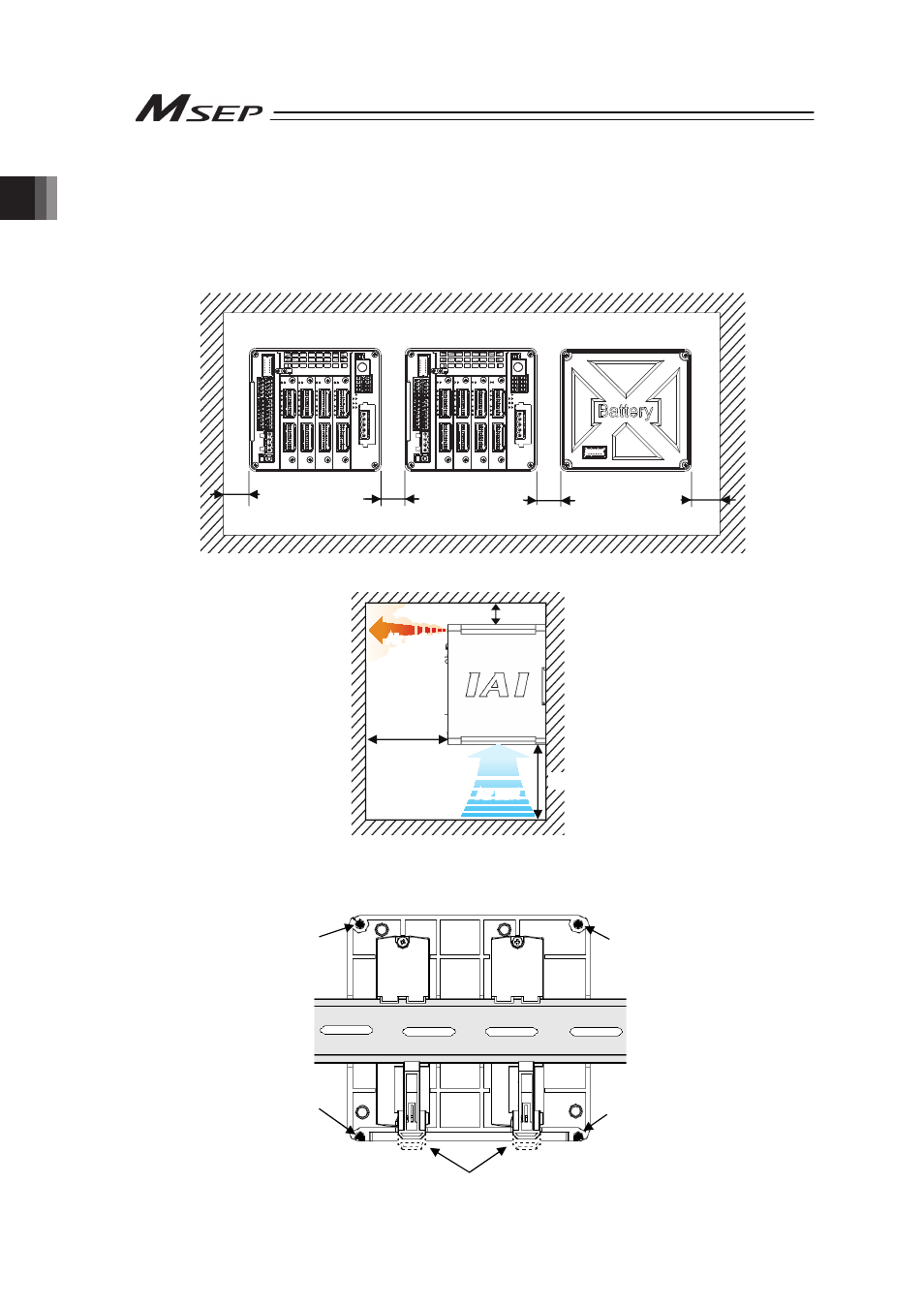

(4) Cooling Factors and Installation

Design and Build the system considering the size of the controller box, location of the controller

and cooling factors to keep the ambient temperature around the controller below 40qC.

Pay a special attention to the battery unit since the performance of it would drop both in the low

and high temperatures. Keep it in a room temperature environment as much as possible.

(Approximately 20qC is the recommended temperature.)

20mm

or more

20mm

or more

20mm

or more

20mm

or more

20mm or more

50mm

or more

Ensure

enough space

for wiring.

50mm or more

Air outlet

(Heat

Radiation)

Air outlet

(Heat

Radiation)

Air inlet

Air inlet

For the attachment of the unit, use the fixture holes on the four corners or attach on the DIN rail.

(Attachment should be the same for the absolute battery box.)

Rear View

I

5 fixture hole

I

5 fixture hole

DIN rail

I

5 fixture hole

I

5 fixture hole

Lever for attachment to DIN rail
