Graphic Display
Graphic Display
The Graphics Display option allows the display of graphical information
that can help in Krystal DPM effect editing and operation. The edges, or
wireframe, of the manipulated video can be shown, and overlays can be
generated to show the target space coordinate grid and safe title area.
Additional information in the form of “icons” can display transform data
(Source Axis, Center Locator) and Channel and Source ID information
(
Figure 12-1 ). The Graphics Display option outputs serial digital video. The
graphics video is generally sent to a suitable display monitor dedicated for
Krystal DPM use.

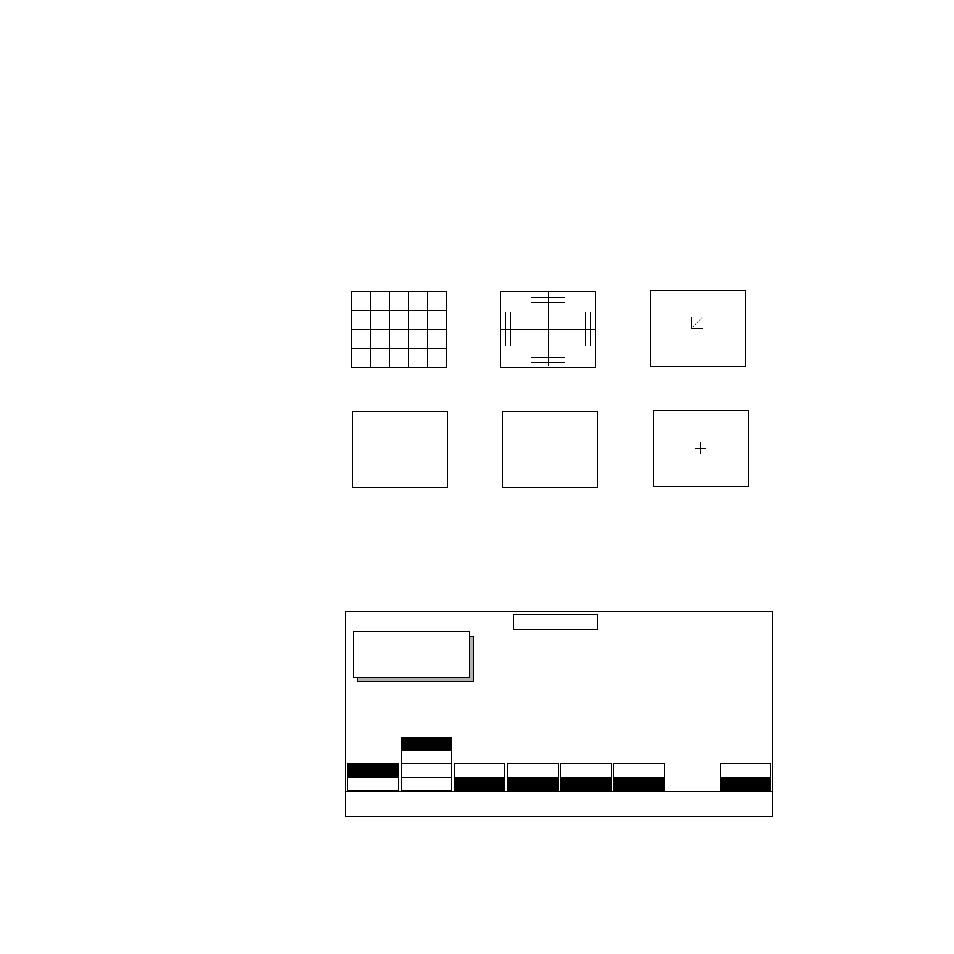

Figure 12-1. Graphic Display Overlays
Press the Graphic Display user assist button to display a menu similar to that
shown below.
1F SRC 1
Safe Title Grid
Center Locator
Source Axis
Channel ID Source ID
X
OFF
WIRE FRAME
NONE
SAFE TITLE
GRID
BOTH
OFF
ON
OFF OFF OFF OFF
ON ON ON ON
GRAPHICS
MODE
PAGE
OVERLAYS
SOURCE
AXIS
CHANNEL
ID
CENTER
LOCATOR
SOURCE
ID
BACKGROUND
VIDEO
SIZE
100.0000
Displayed:
Register:
Keyframe:
Cur.Time:
GRAPHIC DISPLAY
