11-20 Krystal 4300 Reference
Section 11 — Input/Output Menu

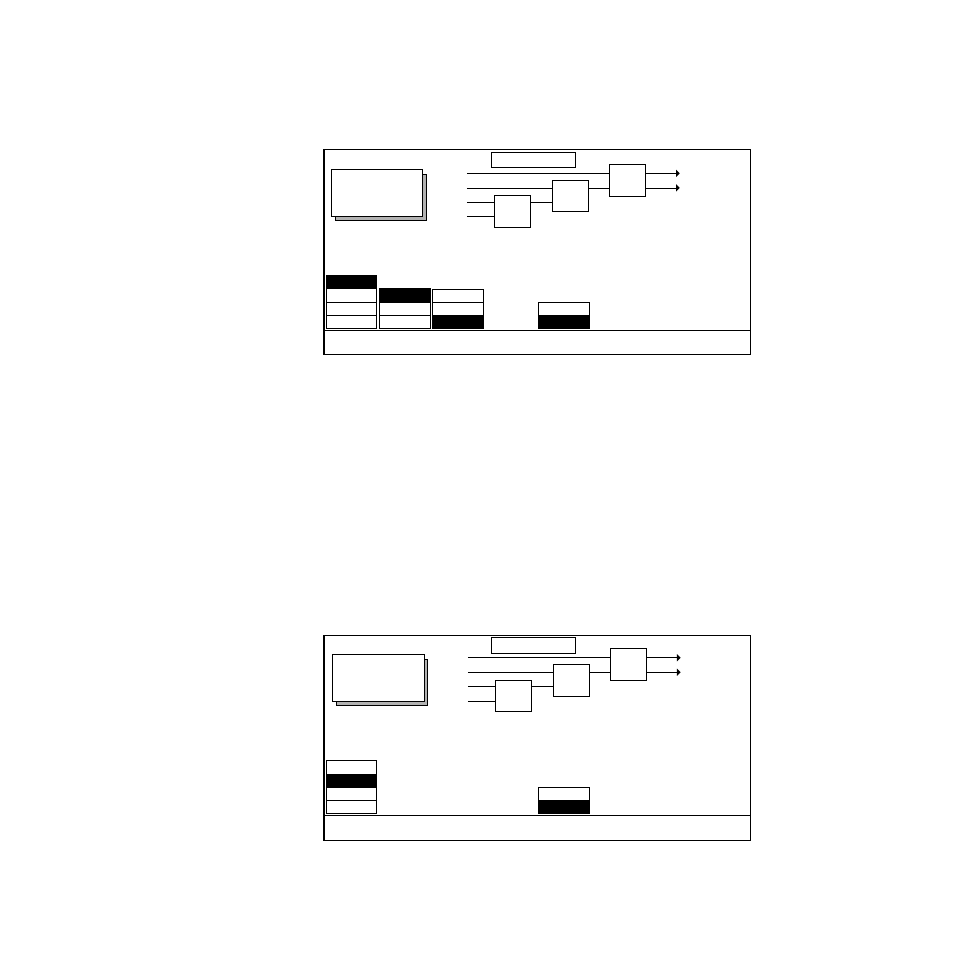

Press MIX MODE to select DEPTH to assign that mix mode to the selected stage
and display the following menu.
DEPTH — The depth information contained in the key signals is used to
determine the priority of the layering of the video signals. (The depth level
of each channel can be adjusted, as explained below). When Depth is
selected the following soft button and soft knob are available:
DEPTH SOFT soft knob adjusts the softness of the intersecting edges of the
pictures.
DEPTH S-SHAPING — soft button determines the softness transition of the
intersecting picture edges. When ON , an S-Linear transition is used.
When OFF , a Linear transition is used.
Channel
Press MODIFY to select CHANNEL to display the following menu. These func-
tions are only active when a logical channel is delegated.
Displ: Camera
Re: 1 - Register
KF: 1 of 5
Time: [0.00]
Primary
2ndary
INPUT
OUTPUTS
CHANNEL
COMBINING
STAGE 3
STAGE 2
STAGE 1
DEPTH
VARIABLE
NORMAL
OFF
ON
MODIFY MODIFY
STAGE
MIX
MODE
DEPTH
S-SHAPING
2) MIX LEVEL
0.0000
1) DEPTH SOFT
0.0000
3) MIX LEVEL
0.0000
COMBINER CONTROL
A: Ch 1
B: Ch 2
C: Ch 3
D: Ch 4
Stage 3
N
Stage 2
N
Stage 1
D
Displ: Chan 1
Re: 1 - Register
KF: 1 of 5
Time: [0.00]
Primary
2ndary
INPUT
OUTPUTS
CHANNEL
COMBINING
VARIABLE
FIXED
MODIFY CHANNEL
DEPTH MODE
CHANNEL OPACITY
100.0000
COMBINER CONTROL
A: Ch 1
B: Ch 2
C: Ch 3
D: Ch 4
Stage 3
D
Stage 2
D
Stage 1
D
