3-28 Chapter 3 - Real-time Setup
Reverse Prime Injection System
Fieldware for the Legacy 6000
Software Version 2.11
1. Setup Stem for Reverse Priming
Select the Prime button from the ARM launcher page, this will bring up the % Prime page. The
prime page has two buttons (Prime State and Reset Values to Zero.) Prime State provides a
detailed set of values of the priming process. During priming view this page to see the pump prim-
ing progress. The zero button will reset values to zero.
2. Start Reverse Prime
From the prime page each pump is ready to reverse prime. Press the Reverse Prime button on the
front of the pump (bottom button) and the pump should start turning. The pump will stop automati-
cally once the pump volume reaches the prime volume. To view the live prime process select the
Prime State button from the prime page.

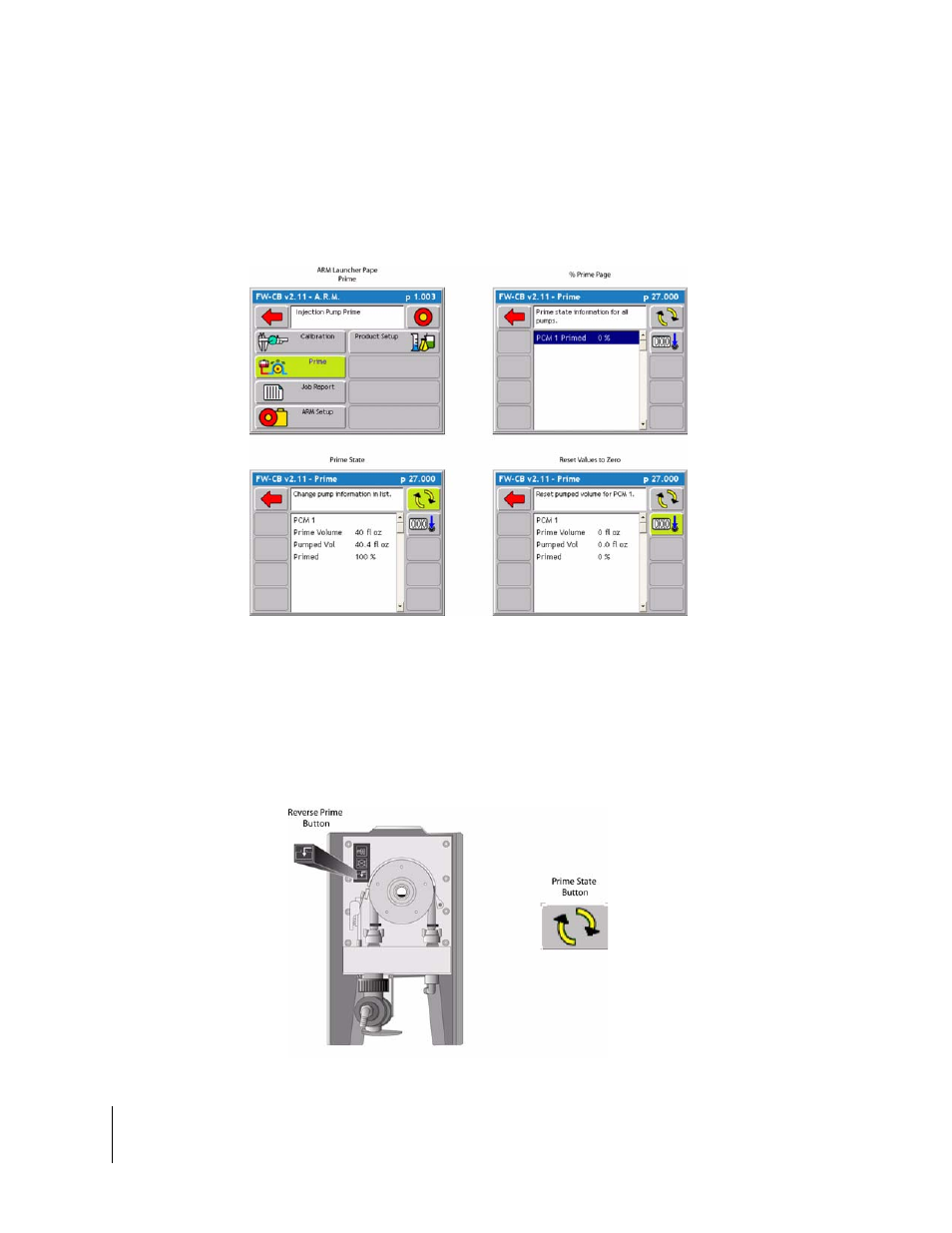

Figure 3-10: Setup System for Reverse Prime
Figure 3-11: Reverse Prime & Prime State Button
