Adjusting the Product Application Rate
A product’s rate can be adjusted while applying. To adjust a product rate, press the appropriate
product control soft-key, which pops-up a side menu (Figure 4-5). This menu varies based on how
the PCM is setup. Typically this side menu contains any preset rates defined in Product Setup, an
On or Off setting, a Manual mode, and a VR mode if doing variable rate application. To adjust a
rate, move up and down in the side menu using the up and down arrow keys on the Legacy 6000
console. When the desired rate is highlighted, press the enter key on the Legacy 6000 console.
This will send the new rate command to the PCM.
To switch from the Rates page to the Map page, press the Change Page soft-key.
Manual Control
The control valve can be manually adjusted while applying or stationary for testing and trouble
shooting purposes. To manually adjust a product rate, press the appropriate product control soft-
key, which pops-up a side menu, the Manual rate option is selected in the side menu,. When Man-
ual mode has been selected, the current rate is displayed with a Black background. An increase
rate and a decrease rate soft-key appears in the right side column. Press either of these soft-keys
to adjust the rate. When using a Servo as the drive type to control product + should open the valve
and - should close the valve.

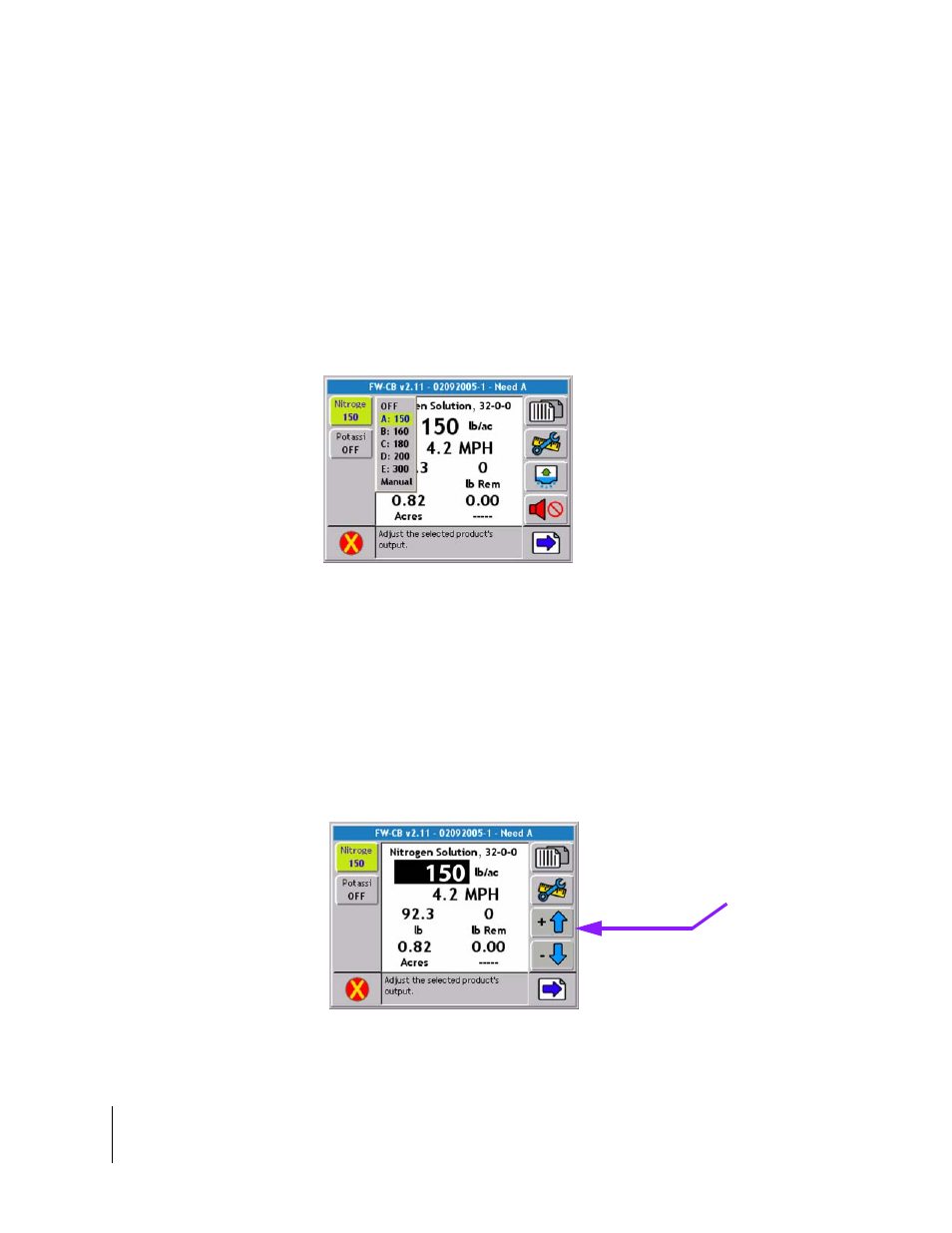

Figure 4-5: Adjusting a Product Rate
Figure 4-6: Manually Adjusting an Application Rate
Increase Rate and
Decrease Rate
Soft-keys
