Chapter 3 - Real-time Setup 3-11
Performing a Calibration
Liquid Flow Static Calibration
The Liquid Flow Static Calibration process is a stationary calibration for a liquid flowmeter. There
are two calibration modes to choose from, Static or InField, only one is needed for accurate cali-
bration. Static calibrations does not involve movement of the vehicle and can be repeated very
easily to ensure an accurate calibration.

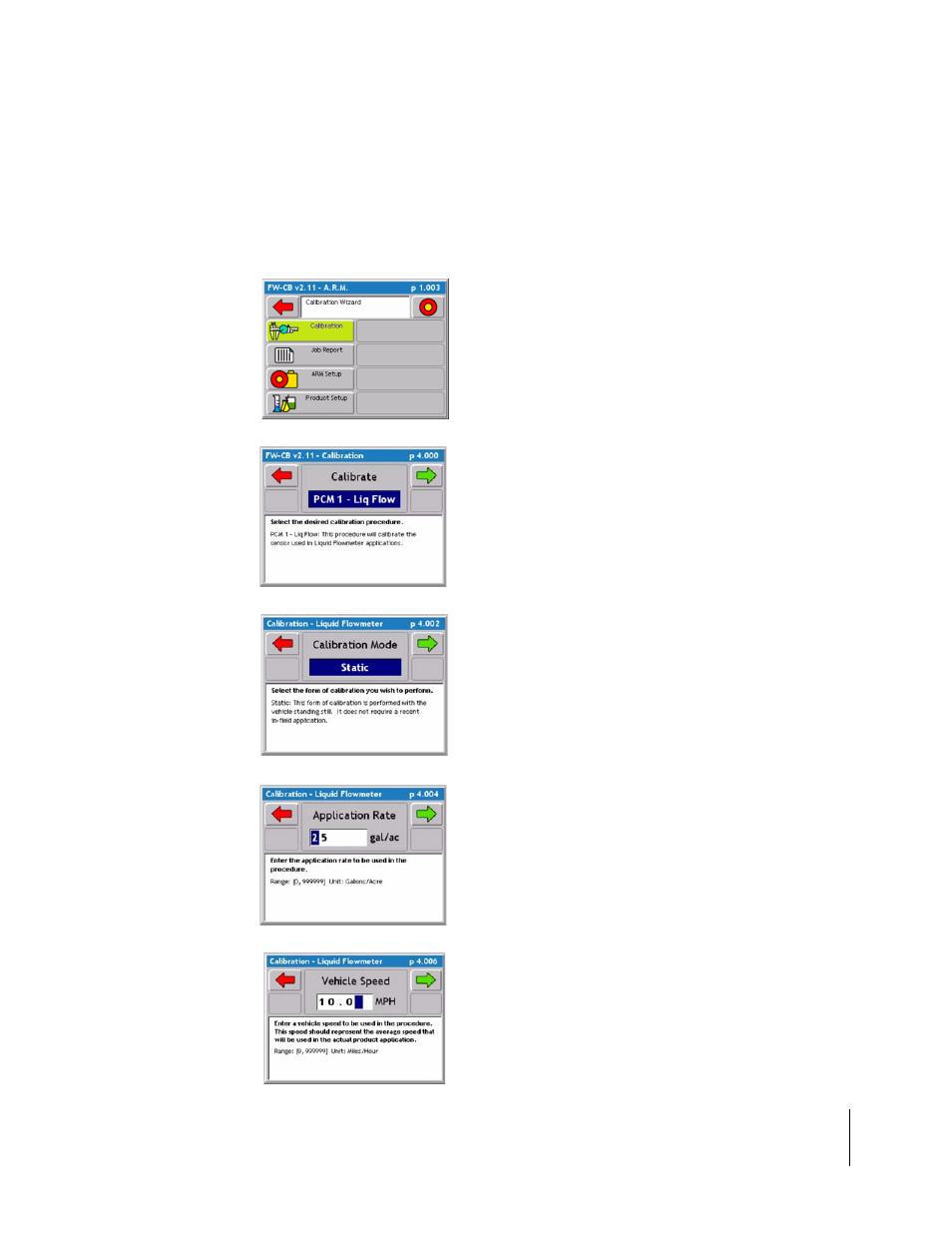

1. Fill the machine’s tank with a know amount of liquid
or use the sight gage on the side of the tank to calcu-
late a know volume. From the ARM Launcher page
select the Calibration button by using the function key
or by highlighting Calibration and pressing the green
enter button.
2. From the Calibration page select the PCM - Liq Flow
option from the pick list in the middle of the screen.
Press the green forward arrow to continue to the next
calibration step.
3. From the Calibration Mode page select Static from
the pick list in the middle of the screen. Press the
green forward arrow key to continue to the next cali-
bration step.
- Static - Does not require the vehicle to move. This is
a stationary test.
- In Field - Involves driving in a field, simulating a real
time application.
4. Enter the application rate that will be used later in a
real time application for best results. Press the green
forward arrow key to continue to the next calibration
step.
5. Enter the normal operating speed when applying.
Press the green forward arrow to continue to the next
calibration step.
