2-34 Chapter 2 - Getting Started
Product Control Module (PCM) Setup
Fieldware for the Legacy 6000
Software Version 2.11
Selecting a Monitor
A Monitor is a sensor that is not a Primary or Secondary sensor and is used to monitor the status
of some element of the application delivery system, such as RPMs on a shaft sensor. Up to four
monitor sensors can be used in the delivery system. The Monitor types available in this pick list
(Figure 2-34) are based on the Application, Primary sensor, and Secondary sensor types selected.
Each Monitor type will have an associated Settings button which brings up the Monitor Settings
page right image in (Figure 2-34). The Monitor sensor parameters depend on the type of Monitor
sensor selected. Review (Table 2-19) for a list and description of the Monitor options.
PCM setup contains four Monitor setup pages; Monitor 1 thru Monitor 4. It is not necessary to
setup four monitors. Select the monitor(s) used and press the forward arrow to save the settings. If
there is no monitor, select the None setting and continue to the next page.
Each PCM has six input sensors labeled A through F. Sensor inputs A - D are digital and sensor
inputs E and F are analog. The input line for a sensor can be set on the Sensor Settings page.

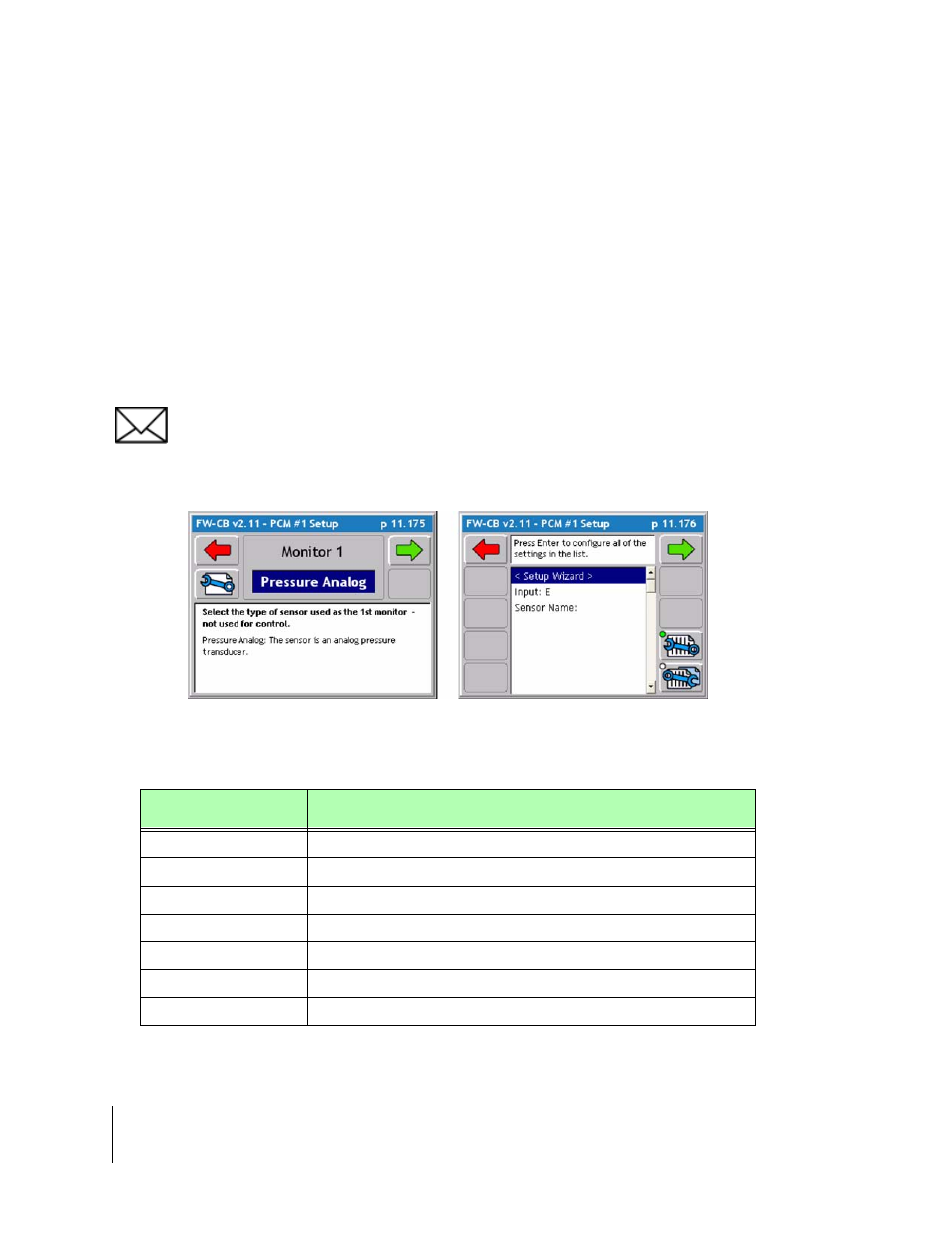

Figure 2-34: The Monitor Page
Monitors Description
Shaft Monitor a shaft rotation speed.
Product Detect Monitor that product is discharging.
Low Bin Monitor low product level left to apply.
Status Monitor engaged or disengaged status.
Pressure Digital Monitor pressure related or not related to application.
Pressure Analog Monitor pressure related or not related to application.
Flowmeter Monitor flow of liquid using a flowmeter.
Table 2-19: Monitor Options
