Fieldware for the Legacy 6000
Software Version 2.11
Chapter 6 - Running Mapper 6-11
Mapper Introduction

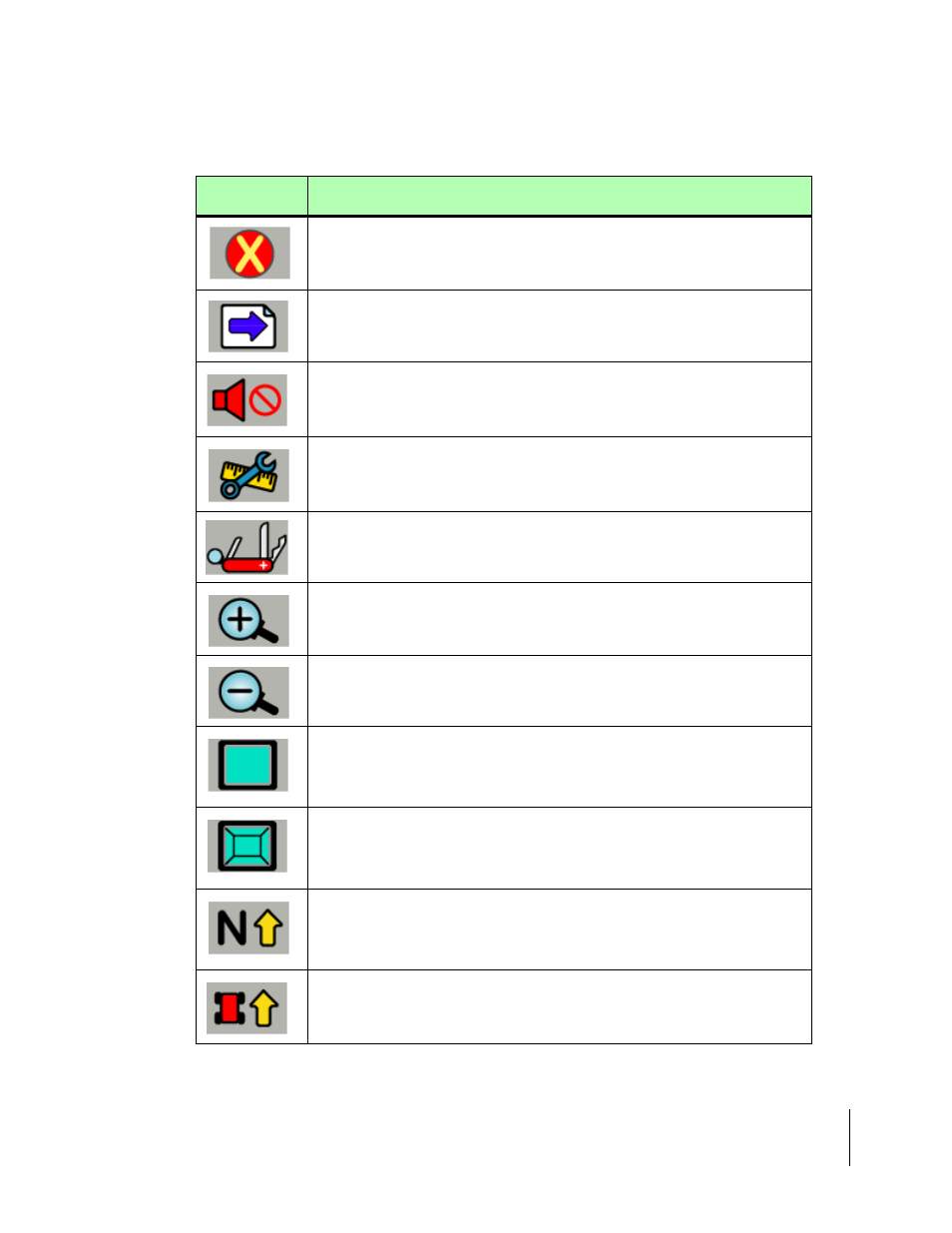

Map Page Soft Keys Descriptions
Soft-key Description
The Exit soft-key. Press to exit the Mapper real-time process and return to the
Mapper Launcher page.
The Next Page soft-key. Press to alternate between the Map page and the
Navigation page.
The Stop Alarm soft-key. Press to mute an alarm.
The Device Manager soft-key. Press to launch Device Manager diagnostics.
This is used when it is necessary to trouble shoot the devices connected to the
console, including the console and GPS receiver, when running in real-time.
The Options soft-key. Press to bring up the Options menu (see Table 6-5).
The Zoom In soft-key. Press to decrease the area displayed in the view page.
There is a total of 5 zoom levels.
The Zoom Out soft-key. Press to increase area displayed in view page. There
is a total of 5 zoom levels.
The Full Screen soft-key. Indicates that the current display mode is “Full
Screen”. When pressed, the map area is reduced to allow the message area to
appear at the bottom of the screen. This is useful when you want to view the
descriptions of the soft-keys found on the right side of the screen.
The Partial Screen soft-key. Indicates that the current display mode is “Partial
Screen”. When pressed, the map view is expanded to include the message
space at the bottom of the screen. This is useful when you want to see more of
the vehicle trajectory.
The North Up View soft-key. Indicates that the current display mode is
“Course On Ground” which keeps the vehicle stationary in the view page with
the heading (course) of the vehicle pointing to the top of the view page. Press-
ing this soft-key changes the view to North Up.
The Course on Ground (COG) View soft-key. Indicates that the current dis-
play mode is “North Up” which keeps North at the top of the view page. When
pressed this soft-key changes the view to COG.
