Fieldware for the Legacy 6000
Software Version 2.11
Chapter 3 - Real-time Setup 3-23
Performing a Calibration
Injection Static Calibration
The Injection Static Calibration process is a stationary calibration for a liquid injection pump. Static
calibrations does not involve movement of the vehicle and can be easily repeated to ensure an
accurate calibration.There are two calibration modes to choose from, Static or InField, The In-Field
calibration procedure is not recommended by Mid-Tech.

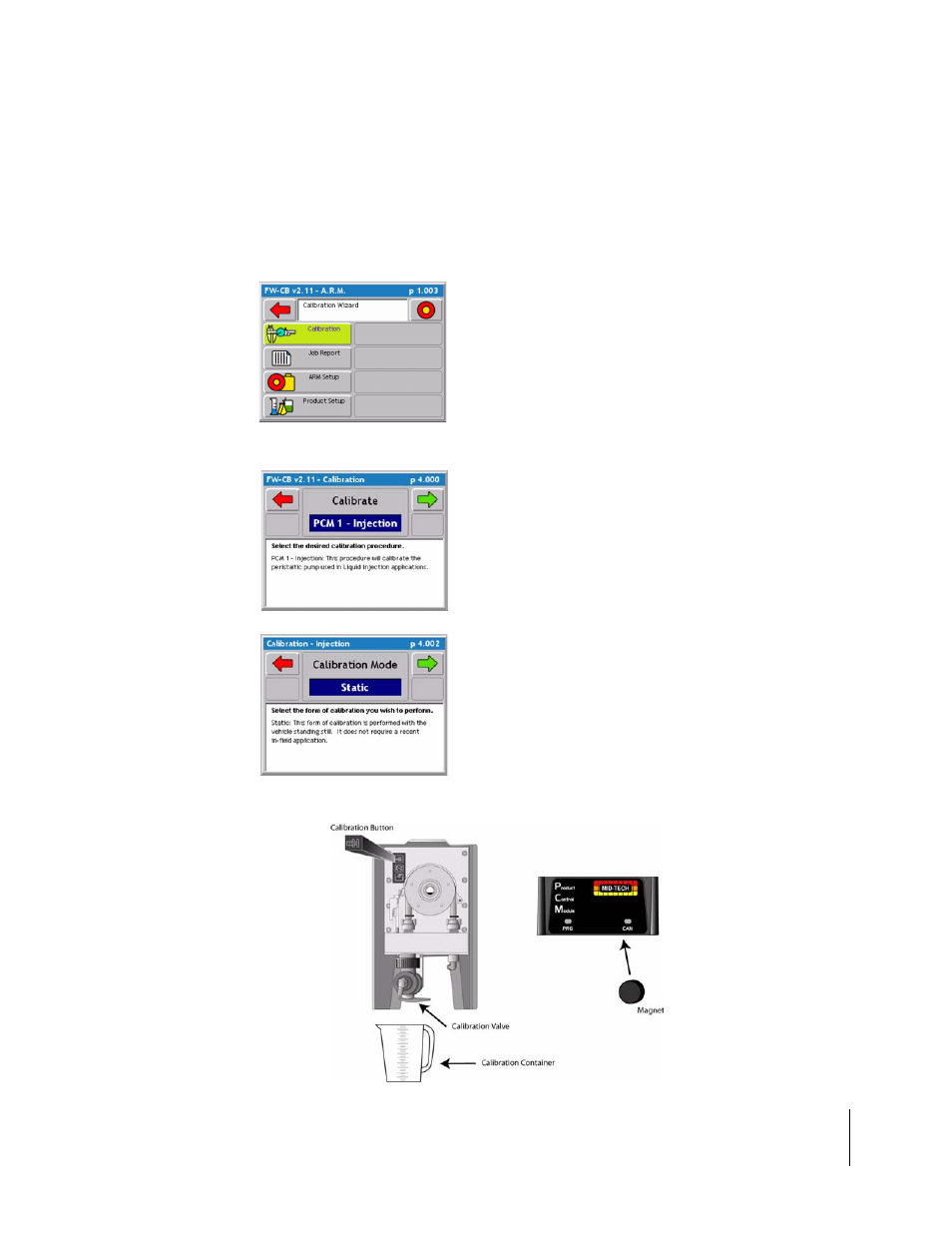

1. Fill the injection tank with product. From the ARM
Launcher page select the Calibration button by using
the function key or by highlighting Calibration and press-
ing the green enter button.
2. From the Calibration page select the PCM - Injection
option from the pick list in the middle of the screen.
Press the green forward arrow to continue to the next
calibration step.
3. From the Calibration Mode page select Static from
the pick list in the middle of the screen. Press the
green forward arrow key to continue to the next cali-
bration step.
- Static - Does not require the vehicle to move. This is
a stationary test.
- In Field - Involves driving in a field, simulating a real
time application.
